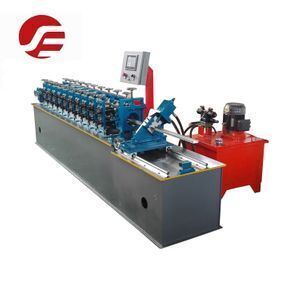

High Quality Automatic Light Steel Keel Weight Omega Profile Steel Frame Roll Forming Machine
-
Supplier: Botou Shibo Machinery Manufacturing Co., Ltd. -
Region: Hebei, China -
Contact: Mr xiaoying Lee -
Price: $7000.00 /set -
Min. Order: 1 set
| After-sales Service Provided: | Engineers available to service machinery overseas; | Cutting blade material: | Cr 12 High Grade Steel; |
| Dimension(L*W*H): | 4000*1300*1400mm; | Type: | Steel Frame & Purlin Machine; |
| Supply Ability: | 10 Set/Sets per Month Light Steel Frame Roll Forming machine; | Production Capacity: | 8-12m/min; |
| Control system: | Taiwan Delta; | Shaft material: | High Grade No.45 Forged; |
| Raw material: | Galvanized Sheet; | Power(W): | 4kw; |
| Cutting type: | Hydraulic Cutting; | Applicable Industries: | Manufacturing Plant; |
| Color: | Client's Request; | Condition: | New; |
| Voltage: | as Customer's Request; | Weight: | 2.0T; |
| Key Selling Points: | Long Service Life; | After-sales Service Provided: | Online support; |
| Brand Name: | SHIBO; | Work Pressure: | Normal Pressures; |
| Feature: | Easy Operation; | Certification: | ISO CE; |
| Place of Origin: | China; | Usage: | Steel Construction; |
| Packaging Detail: | Light Steel Frame Roll Forming machine As usual, we will cover the machine by plastiic film, then fix the machines into the container by steel line into the container; | Product name: | Light Steel Frame Roll Forming machine; |
| Port: | tianjin xingang port; | Warranty: | 1 year; |
| Payment Terms: | L/C,T/T,Western Union,cash; |

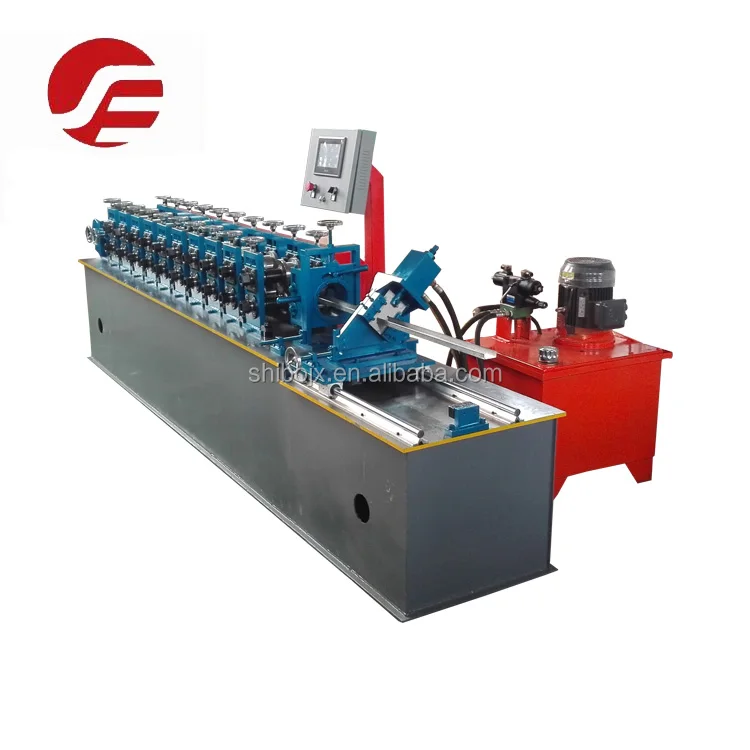

High Quality Automatic Light Steel Keel Weight Omega Profile Steel Frame Roll Forming Machine
1,Light Steel Frame Roll Forming machine Process Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→ Products receiving
Product name | Spandrel Profile Machine | |||
NO. | Items | Parameters | Remark | |
1 | Suitable Material | Type | GI/PPGI/AL |
|
|
| Thickness | 0.40-0.80mm |
|
2 | Product Specifications | Length | Any length |
|
|
| Length Tolerance | ±2mm/6m |
|
3 | Working Speed | 25 m/min | Standard machine | |
4 | Control System | Mitsubishi/Siemens PLC transducer | Custom | |
5 | Total Power | 7KW |
| |
6 | Total Weight | About 3.5T | Up to final design | |
Components of Light Steel Frame Roll Forming machine:
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |

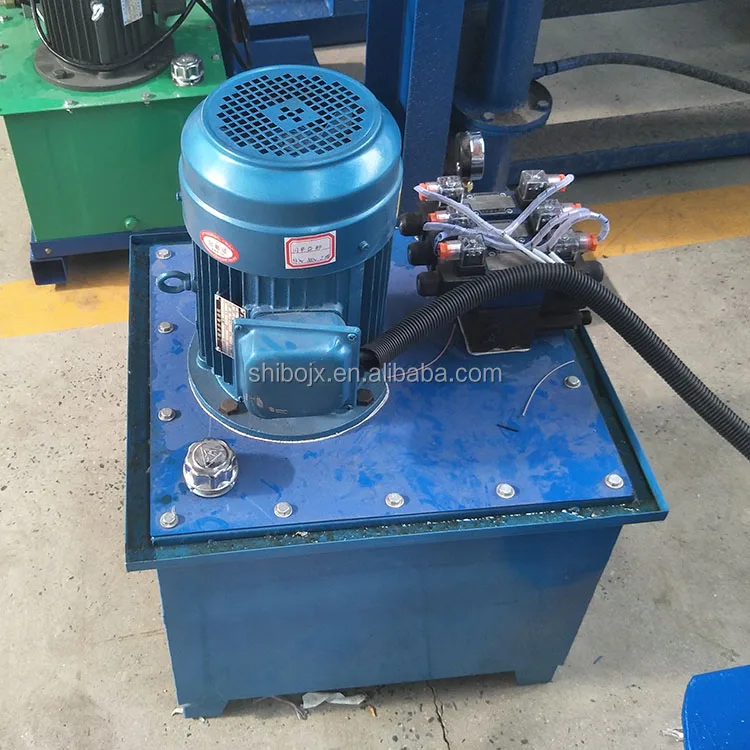

4 | Hydraulic station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |

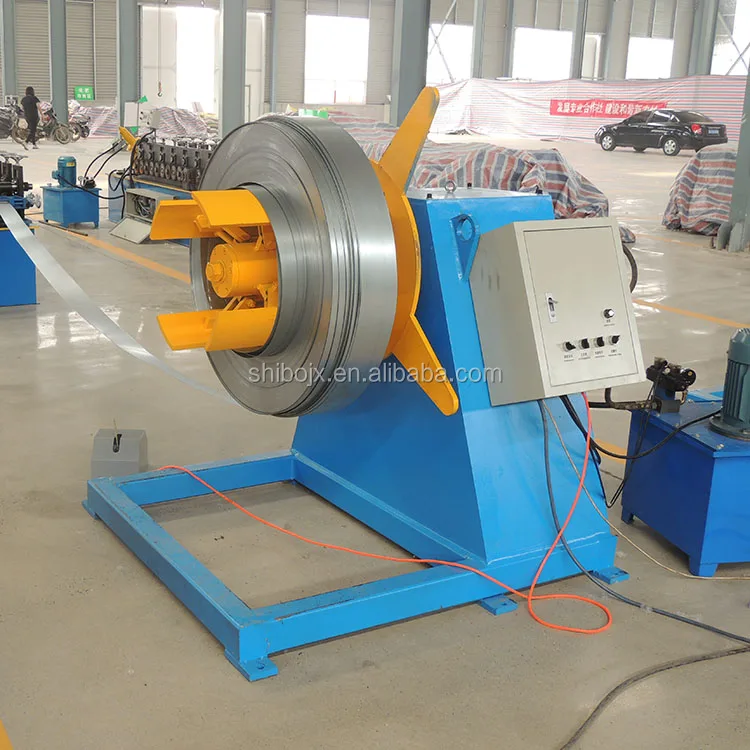

Un-coiler System of Light Steel Frame Roll Forming machine:
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system.
Loading Capacity: 1.5T
Uncoiler Width: 300mm
Inner Diameter: 450-550mm
Coil feeding part of Light Steel Frame Roll Forming machine
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

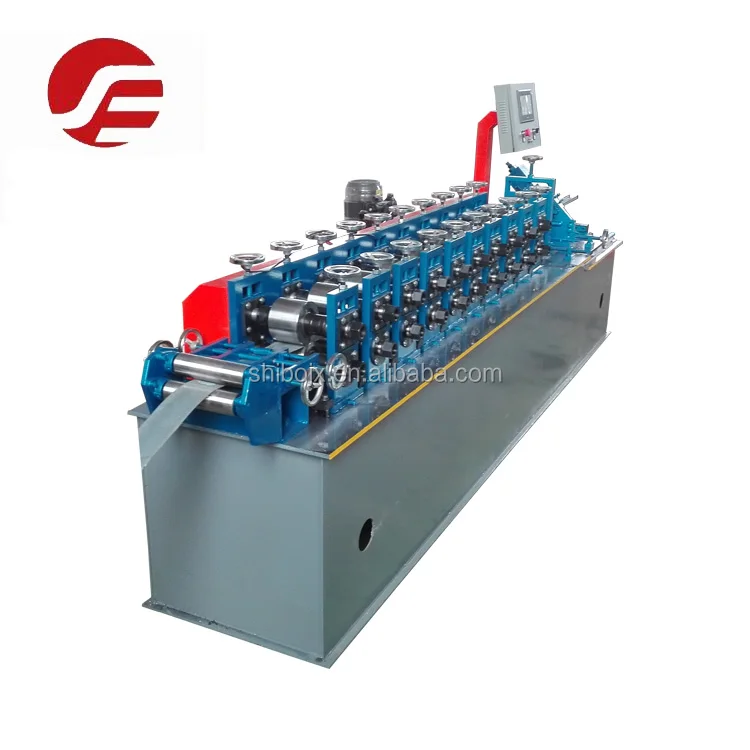

Forming device of Light Steel Frame Roll Forming machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.
Feature : Ensure stability , precision and lifetime.
No. | Main parameter of Light Steel Frame Roll Forming machine | |
1 | Length of the main part | 4000*800*1400mm |
2 | Weight of main part | About 3 t |
3 | Voltage | 380V/50HZ3Phase (as customer request) |
4 | Roller fixer | Guide column |
5 | Frame | Middle plate welded Memorial arch frame type |
|
| |
7 | Drive mode | Gear or chain |
8 | Material of rollers | 45# steel with tempering |
9 | Material of shafts | 45# steel with tempering |
10 | Diameter of shafts | φ40mm |
11 | Number of rollers | 10 rollers |
14 | Main power | 3kw (Cycloidal ;planetary gear speed reducer) |

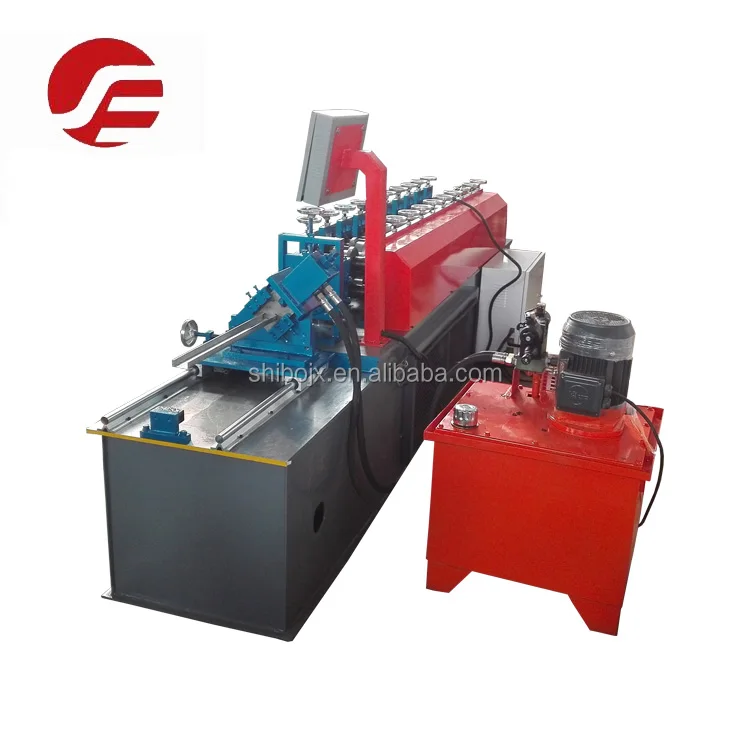

Cutting device of Light Steel Frame Roll Forming machine
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
Blade materials: Cr12 steel with quenched treated 60-62°C
Cutting system: Full automatic.

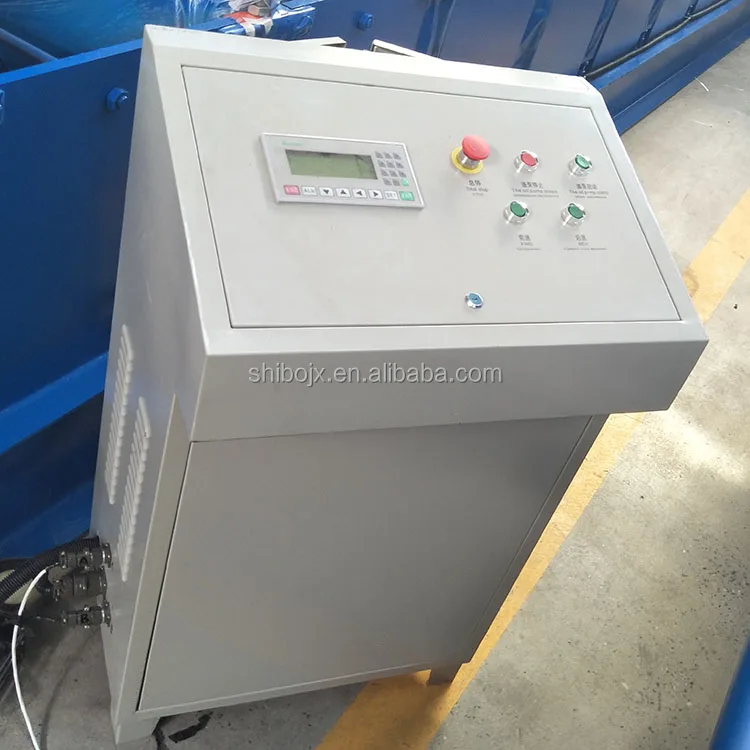

Controlling device of Light Steel Frame Roll Forming machine:
Screen: Text screen displayer
PLC:Taida DVP14ES from Taiwan
Coder:Omron
Products of Light Steel Frame Roll Forming machine
Our other popular machines for your choose, such as metal profile machines, c z purlin machine, Omega Profile Roll Forming Machine,roller shutter machine, downpipe machine, gutter machine, door frame machine, ridge cap machine, roofing machine, slitting line, sandwich panel production line...
Galvanized Iron Roof Sheet Rolling Machine package: nude, the computer controlling part is packed with water proof cloth. Adjustable Roof Sheet Roll Forming Machine packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.
We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.And it include Adjustable Roof Sheet Roll Forming Machine
Of course we also produce 1.double deck roller forming machine 2.Ridge cap cold roll former machine 3.Floor decking rolling forming machine 4.light steel frame roll forming machine 5.roller door shutter roll forming machine 6.sandwich panel roll forming machine 7.U purline roll forming machine 8.Gutter&Downspout roll forming machine 8.shelf&rack roll forming machine 9.welding pipe and tube roll forming machine. In recent years, our products at large scales have been sold to more than 50 countries and regions, for instance, France, Britain, Australia, The United States, Kazakhstan, Malaysia, Nigeria, Rumania, Albania, etc, and has won the universal appreciation and commendation from the customers all over the world.Roofing And Wall Sheet Cold Rolling Making Machinery Welcome to Contact us and visit us!
1. Installation and training of Light Steel Frame Roll Forming machine:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of Light Steel Frame Roll Forming machine:
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of rollforming profil machine profile, we will repair it for free in one year.
