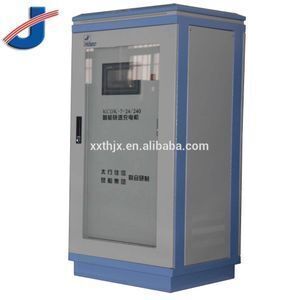

high power 24V 48V smart battery charger for lead acid battery

Product details
Output Power:Depends;Power factor:0.8(full range);
Delivery Detail:30-40 days after receipt of PO;Output Voltage:Adjust;
Port:Tianjin seaport of China;Packaging Detail:Seaworthy plywood cases or as per customer's requirements high power 24V 48V smart battery charger for lead acid battery;
Ambient temperature:45°C max.;Product type:high power smart battery charger for lead acid battery;
Output Current:0-300A;Rectifier type:thyristor or silicon controlled, HF;
Cooling system:Self and natural air cooled or forced cooled;Noise:65dB max.;
Model Number:PZDK;Input Voltage:Customized;
Charge characteristics:Constant voltage Current Limiting or as customized;Output Frequency:Low Ripple DC;
Efficiency:85%;Installation:Indoor;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,in cash, e-checking, ect.;Place of Origin:Henan China;
Application:AGVs, electric forklift, power plant, substation;Supply Ability:200 Set/Sets per Month high power smart battery charger for lead acid battery;
Brand Name:Taihang Jiaxin;





high power 24V 48V smart battery charger for lead acid battery

Product Description

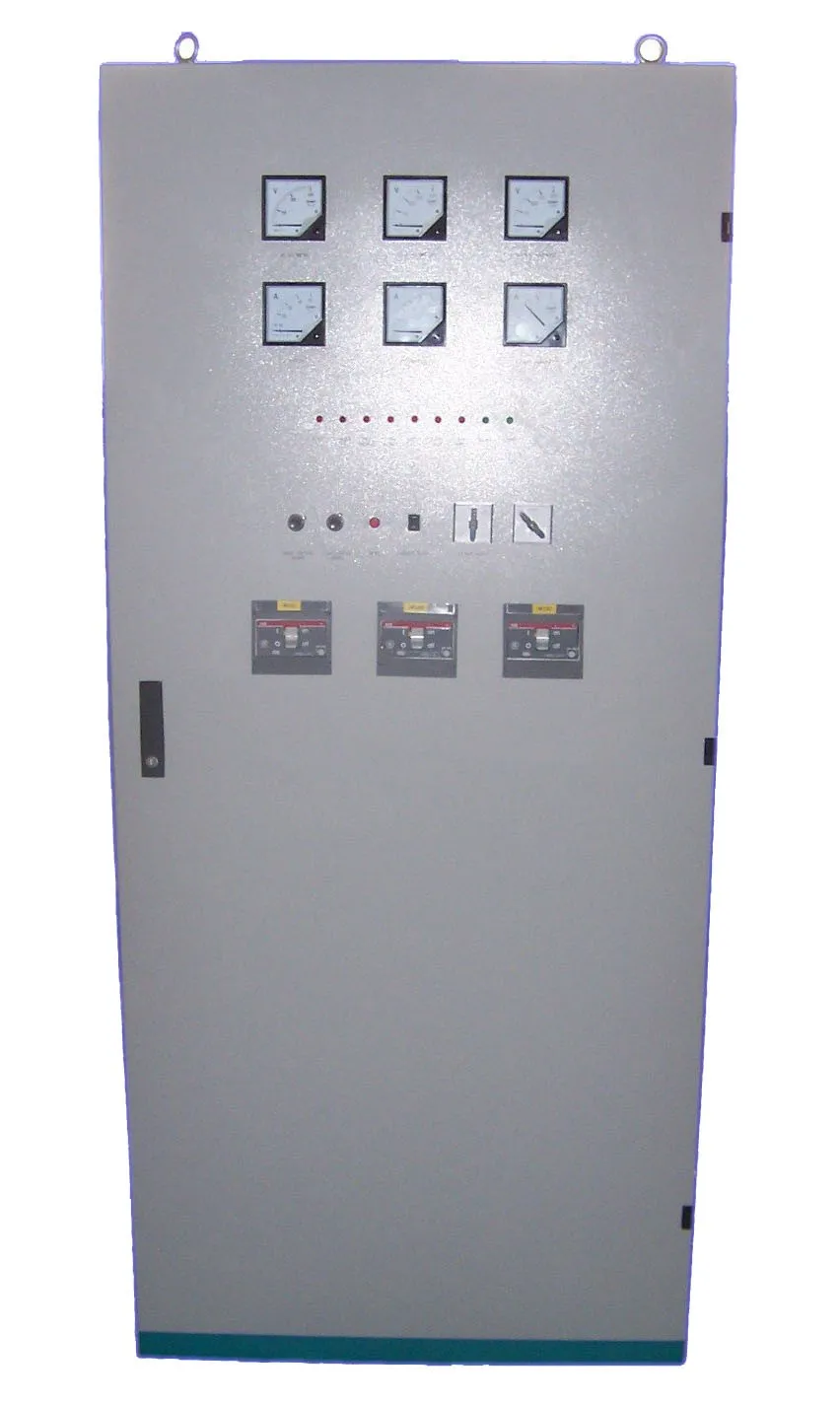

PZDK Series of Thyristor/Silicon Controlled DC Power System



General



PZDK series of thyristor/silicon controlled DC power system can be used as DC power supply for control signal, electromagnetic operation mechanism of substation and large power plant. They are new generation of products which are specially designed by considering to the requirements of high reliability and intelligency in power system. It is the updated product for current DC device and the substitute for imported product.

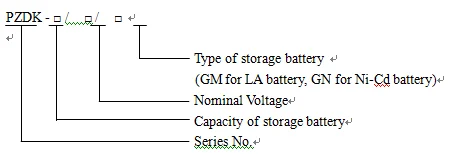

Model Description



Capacity of storage battery:

Lead Acid storage battery: 10~3000Ah;

Nickel Cadmium storage battery: 10-1000Ah

Nominal Voltage DC voltage: 24V, 48V, 110V, 220V.



Panel Combination Solution

  • Charging Panel: 1 pc; feed control & battery mounting cabinet: 1pc; control: 6 circuits, closing: 6 circuits, provided with 65Ah lead acid battery, 20Ah nickel cadmium battery and less capacity of single battery group. Can be equipped with AC distribution and metering.
  • Charging Panel: 1 pc; feed control panel: 1pc; battery mounting cabinet: 1~2 pcs; control: 6 circuits, closing: 6 circuits, provided with 100~200Ah lead acid battery, 40~60Ah nickel cadmium battery and less capacity of single battery group.
  • Charging Panel: 2 pcs; feed control & battery mounting cabinet: 2 pcs; control: 2×6 circuits, closing: 2×6 circuits, provided with200~400Ah lead acid battery, 100~200Ah nickel cadmium battery and less capacity of single battery group.
  • The panel combination solution and configuration can be flexibly designed as per customers’ requirements.

Main Features



  • High reliability, consisted of 2 or more sets of phase controlled charger, which can be standby mutually, easy for maintenance and overhaul.
  • By using digital trigger circuits, the charger has the features of high reliability, high pulse symmetry, great anti-interference performance, rapid response, and so on.
  • Complete in signal display, prefect a protection function.



Technical Parameter



  • Input voltage: AC 380V ± 20%;
  • Voltage precision: ≤±1%;
  • Current precision: ≤±1%;
  • Ripple: ≤±1%;
  • Noise: ≤ 55dB



Order Information



  • Please state type, specification, color, size of cabinet.
  • Special requirements can be designed.
  • Special requirement about storage battery, please specify the manufacturer.



Specification of high power 24V 48V smart battery charger for lead acid battery

Company Information







Providing professional DC power system solutions:



Specializing in R & D and production of power supply equipment and systems, battery charging and discharging devices, battery testing system and low-voltage distribution and automation equipment.



Strong R & D capability:



independent research and development the key power modules and other control units, to ensure the safety, reliability and stability of products operation. We also have undertaken many subprojects of State 863 plan and many scientific research projects of Province and Ministry, which include intelligent charging and discharging systems for “Jiaolong” manned submersible and home-made high speed maglev train, intelligent charging and discharging devices for aviation storage batteries, integrated power supply system for electric vehicles, intelligent rapid charging station for AGVs(Automatic Guided Vehicles), and other key projects.





Providing technical support and product support for our customers with more than 20 years of professional experience:



We have established long-term cooperation relationship with many famous AGV (Automatic Guided Vehicle) manufacturers in China, such as KSEC (Kunming Shipbuilding Equipment Co., Ltd.) group, SIASUN (Siasun Robot & Automation Co., Ltd.), MTD (Machinery Technology Development Co., Ltd.). Our products for AGVs have been applied to more than 120 global logistics automation field. In which, the running time in Nanjing cigarette factory and Yuxi cigarette factory and other 20 fields is more than 10 years.



Convenient traffic:



Our company lies at the north of Zhengzhou, it is located at the Technology Enterprise Accelerator Park, High-tech Zone of Xinxiang, Henan Province, it takes only 1 hour’s drive from Zhengzhou airport.





Certifications





                 ISO 9001: 2008 Certificate                               CE Certificate





            Patent Certificate                                   Certificate of trademark registration





Science and Technology Progress Award.            Product Type Inspection Report

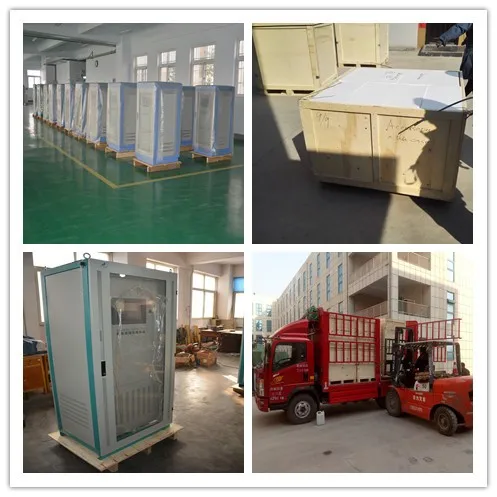

Packaging & Shipping

Packaging Details: Export plywood cases or as your requirements.

Delivery Detail: 30-40 days once receieve your payment.





Our Customers

Our thyristor controlled/silicon controlled rectifier chargers or intelligent chargers have exported to Singapore, Malaysia, Bangladesh, Sri Lanka, Indonesia, and other countries and regions.





Our Services



1. Providing professional consult.
2. Providing customized design as per requirements.

3. Rapid response according to RFQ or technical communication.
4. In-time delivery.

5. If necessary, we can also provide oversea technical services,  but all expenses, brought about by the services, are expected to be defrayed by the customers.
