WB-4A High quality Mattress Tape Edge Machine

Product details
Mattress Thickness:60-450mm;Head Lifting Range:125-450mm;
Packaging Detail:Plywood box packing, Packing size:2400*2250*1125mm*2Packages, 1550*800*1700mm*1package, Total 14.5cbm. Gross weight:1350kgs;Applicable Industries:Hotels,Building Material Shops,Machinery Repair Shops,Home Use;
Warranty:1 year;Weight:1300KGS;
Supply Ability:50 Set/Sets per Month;Voltage:3-Phase, 380V 50H;
Table Size:2000x3950x900mm;Capacity:18units/h;
After-sales Service Provided:Engineers available to service machinery overseas;Port:Guangzhou,China;
Air Supply:0.7-1.0 Mpa;Sewing head type:300U Chainstitch sewing head;
Dimension(L*W*H):2380x1830x1650mm;Brand Name:Everen;
Power(W):3KW;Place of Origin:China;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Condition:New;
Product Description

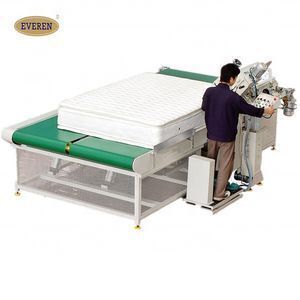

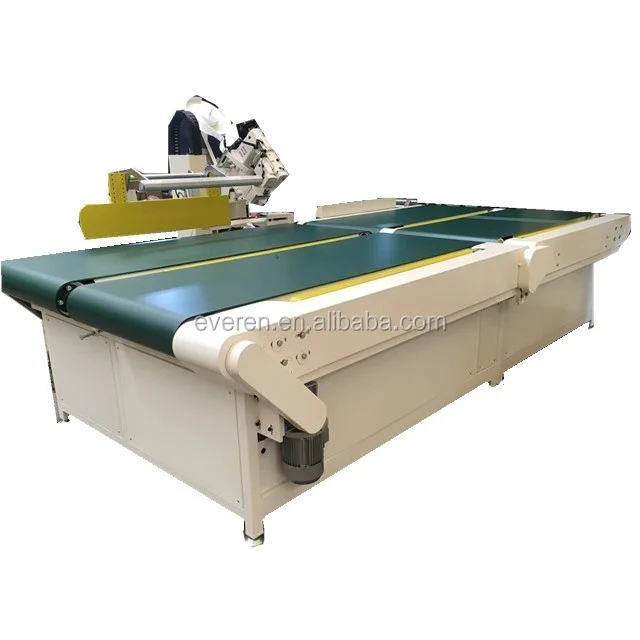

High quality Mattress Tape Edge Machine WB-4A



Description:



This mattress machine is maninly used for taping edge of mattress panel and soft cushion. This tape edge machine bears the following features:


1. Rather than moving around, the head is fixed but can move up and down to adapt to different height of mattress.
2. The angle of the head is adjustable.

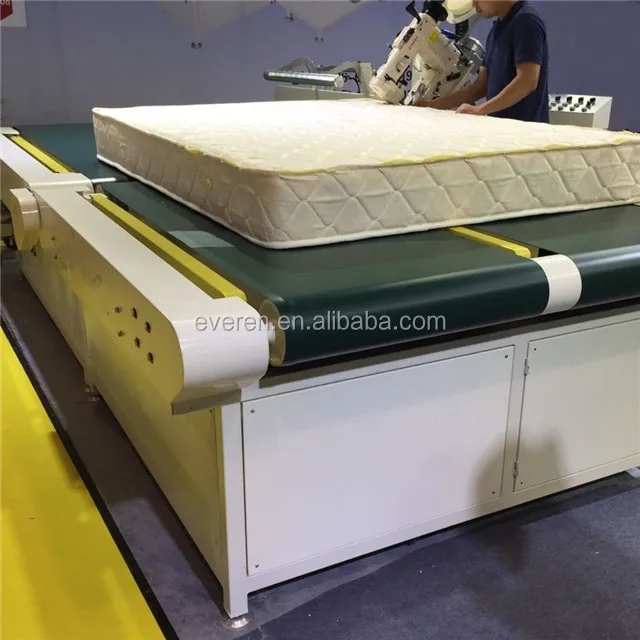

3. When working, the conveying belt drives the mattress to proceed. When one side is finished, this mattress manchine can turn 90° automatically to start taping the next side. The taping of the corner is finished while turning. When the top four sides are completed, the machine can turn the mattress over for taping the other four sides. This manchine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized.



Technical Specification:

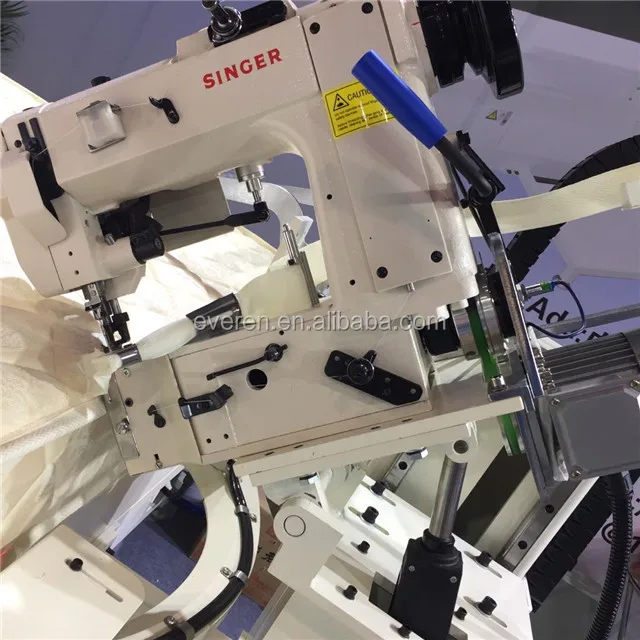

Sewing head type300U Chain stitch sewing head
Mattress Thickness(60-350mm/150-450mm)
Head Lifting Range (125-450)mm
Table Size2000×3950×900mm
Machine Size2380×1830×1650mm
Power Supply3-Phase, 380V 50Hz
Total Power3kw
Air Supply(0.7-1.0)Mpa
Total Weight1300Kg
Capacity

18units/h


Product Overview











Packaging & Shipping



Plywood box packing,
Packing size:2400*2250*1125mm*2Packages,
1550*800*1700mm*1package, Total 14.5cbm.
Gross weight:1350kgs
