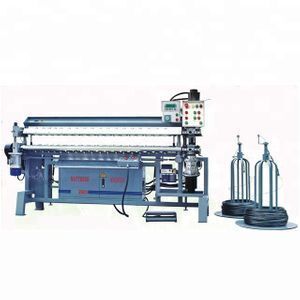

Automatic mattress bonnell spring assembly machine EE-200s

Supplier: Everen Industry Company Limited
Region: Guangdong, China
Contact: Mr Philip Peng
Price: $17500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Helical wire diameter:	1.3-1.6mm;	Packaging Detail:	Plastic film and wooden pallet, Packing volume:10 CBM, Gross weight:1000KGS.;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:	Guangzhou/Shenzhen,China;	Model Number:	EE-200s;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Delivery Detail:	50days after 30% deposit;	Supply Ability:	20 Set/Sets per Month;
Place of Origin:	Guangdong China (Mainland);	Height:	70-210mm;
Max width:	2Meter;	Brand Name:	Everen;
Turns:	4--7 Turns;	Power(W):	38KW;
Voltage:	3 Phase 380V,50HZ;	Weight:	990kg;
Production capacity:	80 Sheets /8 Hours (1800MM*2000MM);	Dimension(LWH):	180014002100mm;
Spring End Diameter:	62-90mm;	Spring Wire Diameter:	1.8-2.4mm;

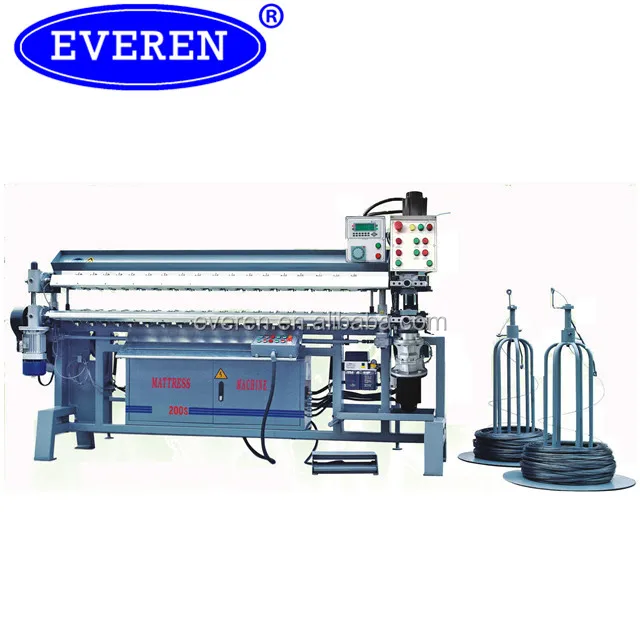

Automatic mattress bonnell spring assembly machine EE-200s

Product Description

Feature:

EE-200i Automatic bonnell spring assembly machine is for assembling Bonell springs. Features include:

Can be operated by one person efficiently.
Accepts variation of steel wire gauge, spring end ring, spring height and produces spring units within a certain limitation.
Coils upper and lower springs together at same time automatically.
Helical wire is coiled, cut, and clamped at both ends automatically.
Spring rows can be set on the computer, and the spring units can be ejected automatically when the number of set rows is achieved.

Technical parameter:

Model	EE-200s AUTOMATIC SPRING ASSEMBLING MACHINE
Spring Type	Bonnell
Production Speed	80Pcs/8 Hours (1800×2000mm)
Max Width	2Meter
Helical Wire	Φ1.3-Φ1.5mm (option: Φ1.6mm)
Spring Wire Diameter	Φ1.8-Φ2.4mm (option: Φ2.5mm)
Jaw spec and Spring end Diameter	68MM Jaws: Φ62-Φ70mm
	78MM Jaws: Φ68-Φ75mm
	88MM Jaws: Φ75-Φ82mm
	98MM Jaws: Φ82-Φ95mm
Spring Height	80-190mm (option:190-210mm)
Spring Turns	4-7 turns
Power Requirements	380V,3 Phase,50-60HZ(Option:415V-480V,220V)
Total Power	3KVA
Machine weight	About 990KG

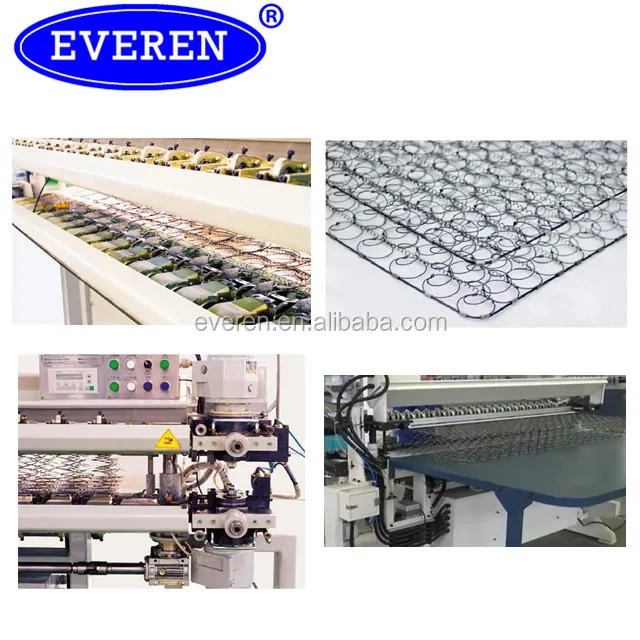

Product Overview

Packaging & Shipping

Related Machines

Company Information

Welcome to visit us: http://everen.en.alibaba.com

FAQ

1) How can I place order?
A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal are the most usual ways we are using.

3) What’s the order procedure?
A: First we discuss samples,order details, production details by email or TM. Then we issue you a PI for your confirmation. You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, westart to process the order. We usually need 7-50days to finish the production. It depends on the items.
Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4) How do you take care when your clients received defective products?
A: We will take responsibility for the defective products. The best way is compromises settlement.

5) How do you check all the goods in the production line?
A: We have middle and final inspection during mass production. And we will keep you updated for the production status.
