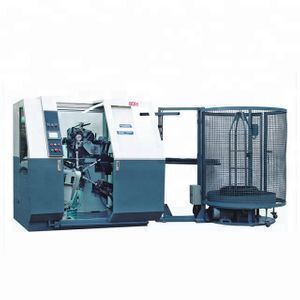

Mattress digital bonnell spring coiling making machine EE-80i

Supplier: Everen Industry Company Limited
Region: Guangdong, China
Contact: Mr Philip Peng
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	2730kg;	Model Number:	EE-80i;
Dimension(LWH):	230017002100mm;	Power(W):	16.2KW;
Supply Ability:	10 Set/Sets per Month;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	3 Phase 380V,50HZ;	Condition:	New;
Port:	Guangzhou/Shenzhen,China;	Turns:	4-7 Turns;
Height:	70-190MM (Option:190-210MM);	Warranty:	1 Year;
Brand Name:	Everen;	Delivery Detail:	50days after 30% deposit;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Wire Diameter:	2.0-2.4MM (<2.0MM on request);
Packaging Detail:	Plastic film + wooden pallet. 2Packages, Packing size: 180017002100mm,230014001800mm; Total is 12.21cbm and gross weight is 2730KGS;	Spring waist Diameter:	62-95mm;
Production capacity:	80 Pcs/Min;	Place of Origin:	Guangdong China (Mainland);

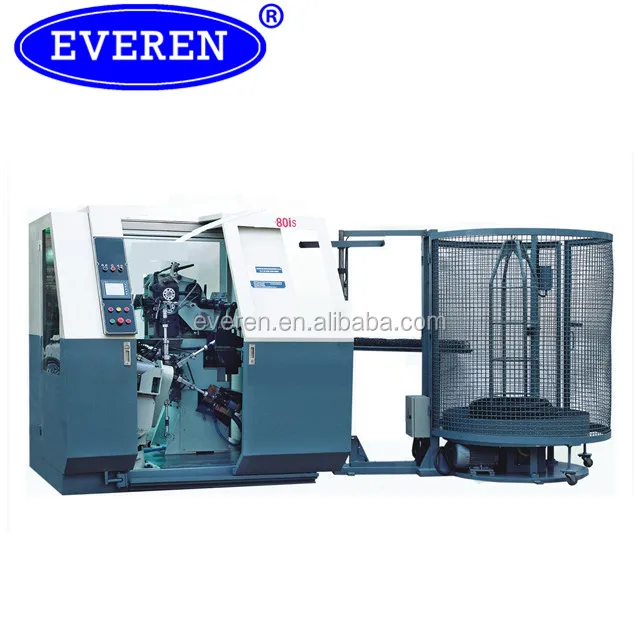

Mattress digital bonnell spring coiling making machine EE-80i

Product Description

Feature:

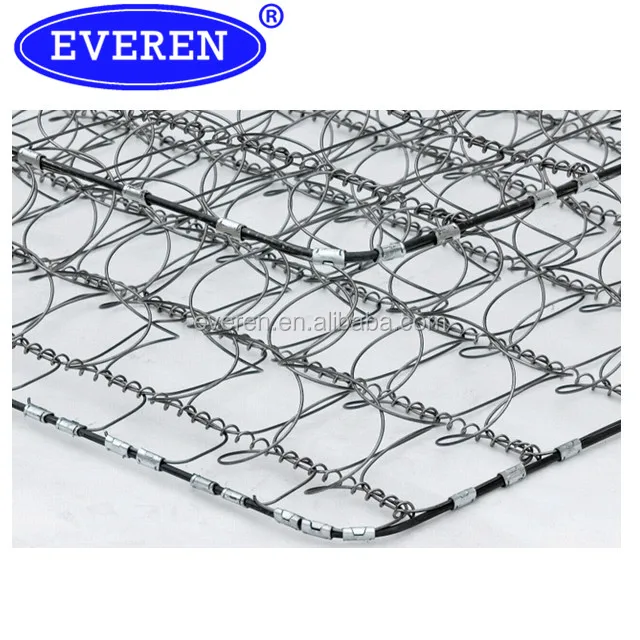

EE-80i Digital spring coiling machine produces Bonnell springs for mattress at speeds of 80 pcs/min.

In a single cycle, the wire is coiled to a spring, knotted at both ends, heat treated and to be collected to an outlet channel.

The coiler utilizes a fully integrated computerized Programmable Logic Controller (PLC) and Servo control system, also with two CPU and high sensitive touch screen to reach remote-control support.

All machine functions including wire feeding length, heat treatment, lubrication and self-protecting are automatically controlled.

Technical parameter:

Machine model	EE-80is
Spring Type	Bonell
Capacity	80 PCS/ MIN
Spring End Ring	Φ62-Φ95MM
Steel Wire Gauge	Φ2.0-Φ2.4MM(<2.0MM on request)
Spring Height	70-190MM (Option:190-210MM)
Convolutions	4-7 Turns
Main Drive Power 4KVA	4KVA
Swift Frame Power	2.2 KVA
Heat Treatment	10 KVA
Weight	Net Approx: 2730KG
Power Requirement	380V,3 Phase,50-60HZ(Option:415V-480V,,220V)

Product Overview

Packaging & Shipping

Related Machines

Company Information

Welcome to visit us: http://everen.en.alibaba.com

FAQ

1) How can I place order?
A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal are the most usual ways we are using.

3) What’s the order procedure?
A: First we discuss samples,order details, production details by email or TM. Then we issue you a PI for your confirmation. You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, westart to process the order. We usually need 7-50days to finish the production. It depends on the items.
Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4) How do you take care when your clients received defective products?
A: We will take responsibility for the defective products. The best way is compromises settlement.

5) How do you check all the goods in the production line?
A: We have middle and final inspection during mass production. And we will keep you updated for the production status.
