Power(W): | 90KW; | Processing Type: | Laminating machine; |
Voltage: | 380V; | Weight: | 35 Tons; |
Dimension(L*W*H): | 20X1.3X2(M); | Place of Origin: | Fujian China; |
Color: | Milky white; | Condition: | Used; |
Certification: | CE; | Model Number: | BBC-SF-5169; |
Delivery Detail: | Shipped in 35 days after payment; | Brand Name: | BBC Machinery; |
Supply Ability: | 1 Set/Sets per Year; | Product Type: | Sanitary Napkin Machine; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Control system: | Frequency Converter Control; |
Design speed: | 500PPM; | Packaging Detail: | Anti-rust oil & PE film cover & seawothy wooden box; |
Port: | Xiamen; | Year: | 2011; |
Warranty: | 12 Months; | Production speed: | 350-400PPM; |
Payment Terms: | T/T,Western Union,Cash; | Web guide: | Customized; |

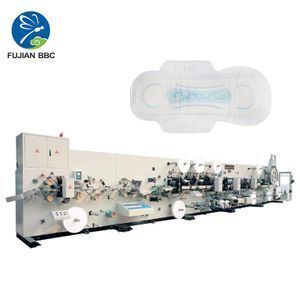

Used second handed cheap sanitary napkin making machine
Main specifications and parameters:
2nd hand sanitary napkin machine production line incl. Glue applicator
Machine size | 20X 1.3X 2M (L X W X H) |
Overall size | 25x 3x 2.5M (for reference only) |
Product size | 240mm |
Product size range length: | Length 230mm -330mm |
Design speed | 500pieces / minute |
Stable working speed | 350-400pieces/ minute |
Minimum efficiency | ≥90% |
Maximum waster | ≤3%( excluding the waste caused by glue applicator and material splicing joint) |
Power sources | 380V, 50 HZ (three phases, four lines & ground wire) |
Air pressure | 0.8Mpa 2.6m³ / min |
Installation capacity | 90KW |
Water consumption | 0.5 liter/M |
Total weight | 35tons |
Noise level | ≤87DB |
1.Product types : Ultra : airlaid paper +sap. Maxi : fluff pulp +tissue paper +sap
Ink Print , Embossed , third fold , straight .
2. Design speed:500pcs/min (the actual produce speed is 400pcs/min)
3. Product sizes:Can be produce 240 MM one size or adjusted and changed cutters what you want.
Still running and producing well .
