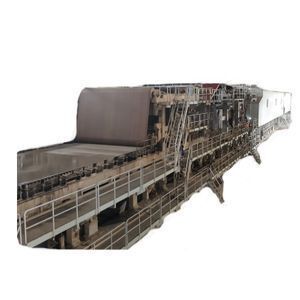

Kraft paper jumbo roll making machine,kraft paper production line to recycling waste paper

Supplier: Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.
Region: Henan, China
Contact: Mr leizhan company
Price: $135000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Kraft paper roll making machine;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Basis weight(g/m2):	60-220;	Output paper:	Kraft paper;
Capacity of production(t/d):	45-750;	Raw material:	Waste paper,wood pulp;
Place of Origin:	Henan China;	Operating speed(m/min):	150-800;
Port:	Qingdao,Shanghai,Tianjin;	Certification:	ISO, BV;
Supply Ability:	50 Set/Sets per Year;	Power(W):	7.5KW;
Condition:	New;	Processing Type:	Paper making machine;
Weight:	2000kg;	After-sales Service Provided:	Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support;
Dimension(LWH):	Up to each model;	Experience:	39 years;
Voltage:	220V/380V;	Trimmed width(mm):	1880-5800;
Brand Name:	leizhan;	Production Capacity:	45-750t/d;
Applicable Industries:	Manufacturing Plant;	Application:	Paper Industry;
Warranty:	One Year;	Product Type:	Kraft paper roll making machine;
Packaging Detail:	Standard Export packing:Wooden case ,also can pack as costomers' requst.;

Kraft paper jumbo roll making machine,kraft paper production line to recycling waste paper

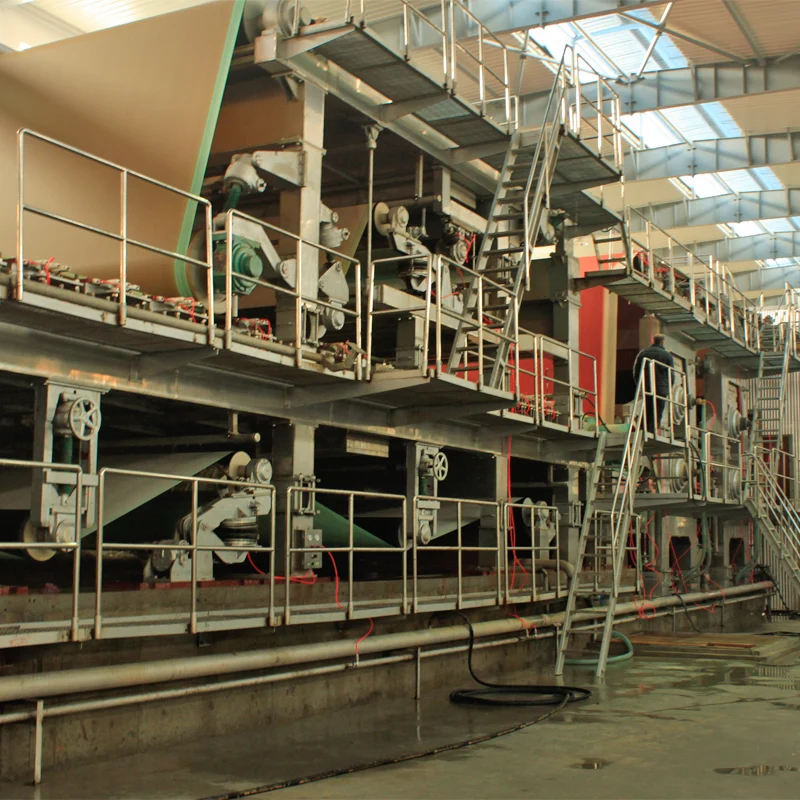

Kraft paper machine brief introduction

The kraft paper machine is mainly used for making cardboard and corrugated base paper.Paper machine is consist of headbox, wire section, press section, front drying section, oblique surface sizing machine, back drying section, calender section, reel section.

Kraft paper machine structure

1.Headbox,two sets of open headbox, corresponding to top layer, bottom layer, and by controlling the gas pressure in the headbox to control and stabilize the sizing of the pulp.

2.Forming section : Double layer include top layer and bottom layer, The main components are consist of breast roll , forming board, dewatering board, vacuum box, composite roll, suction couch roll, wire drive roll, wire guiding roll and paper machine framework.Top layer and bottom layer are all equipped with one forming wire respectively .

3.Press section: including First press, second press.The first press is K-type composite press with vacuum suction roll, which also equipped with one rubber coated metal roller, one vacuum press roll and one stone roll.The second press is MG press with upper & lower rubber coated metal rolls and upper & lower felts. The two press are all equipped with wire guiding roll and felt suction box. These two press are pressurized by the hydraulic cylinder pressure.

4.Front drying section: Φ1500/Φ1800 dryer, drove in group and equipped with wire guiding roll , dry wire and closed gas hood.

5.Oblique surface sizing machine: one surface chrome-plated metal roller and one rubber coated metal roll. it is pressurized by corrugated gas tire pressure.

6.Back drying section: Φ1500/Φ1800 dryer drove by group and equipped with wire guiding roll ,dry wire and closed gas hood.

7.Calender section: Double roller calender, the upper and lower rollers are metal rollers, pressurized way is the corrugated gas tire pressure.

8.Reeling section: Pneumatic horizontal reel and pressurized way is cylinder pressure.

Kraft paper machine specification

Paper grade	kraft paper
Trimmed width(mm)	1880-5800
Basis weight(g/m2)	80-220
Operating speed(m/min)	150-800
Production capacity(t/d)	45-750

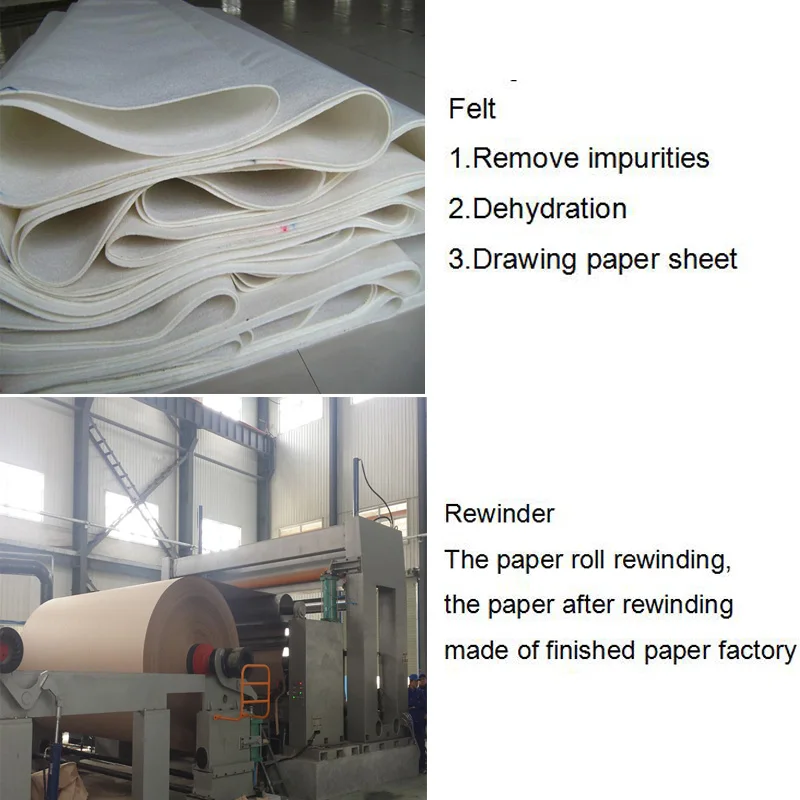

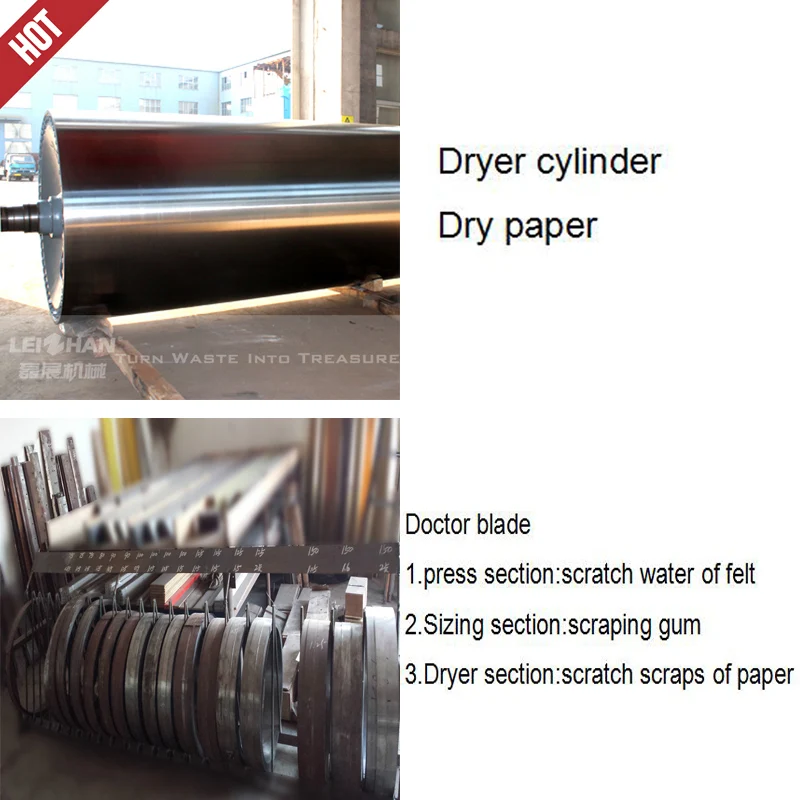

Kraft paper machine main spare parts

Leizhan service

1.Pre-sales Service

Proposing the most suitable scheme and equipment for our clients.
Designing and fabricating targeted products according to the special requirements of clients.
Training periodically high qualified service technician.

2.After-sales Service

Assisting our clients for foundation construction of equipment.
Dispatching engineers to install and debug equipment.
Training the first-line operators on site.
Regularly visit clients to solve production problems.

Kraft paper machine packaging and delivery

1.Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.

FAQ

What do you offer?

A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.

Are your a manufacturer?

A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for 37 years.There are about 50 paper mills near our factory and most of them are using our machines.So,welcome to visit our factory and I believe you will be satisfied with our products.

What's your advantages?

A: We have 37 years experience in the field of papermaking industry. 20000 square meters workshop with more than 200 staffs including 50 engineers.ISO9001:2000 and BV certification.Strict quality control of every procedure.
