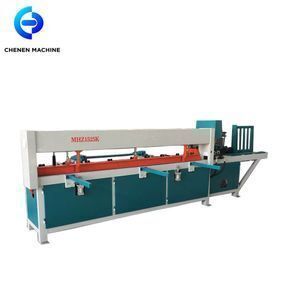

2500mm automatic finger joint machine

Product details
Max. Working Width:150mm;Condition:New;
Power(W):5.7;Spindle Speed:5500rpm;
Weight:3000;Packaging Detail:standard export plywood box;
Dimension(L*W*H):4900x800x1500mm;Certification:iso;
Warranty:oen year;Place of Origin:Shandong China;
Supply Ability:30 Set/Sets per Month;Brand Name:chenen;
Delivery Detail:2weeks;Payment Terms:L/C,T/T,Western Union;
Port:qingdao;Max Working Height:70mm;
Voltage:as requirement;

automatic finger joint  machine

specification of the finger joint machine :



Model MHZ1525K
max assembly length is 2500mm

Max assembly width is 35-150mm

Max assembly thickness 12-70mm

Max jointing force is 4000kg

Saw blade diameter is 300mm

Total power is 5.7kw

Feed speed:1.5m/s

Saw motor power is 2.2kw

Oil pump power is 2.2kw

Feed motor power is 0.75+0.55kw

Size is 4900x800x1500mm

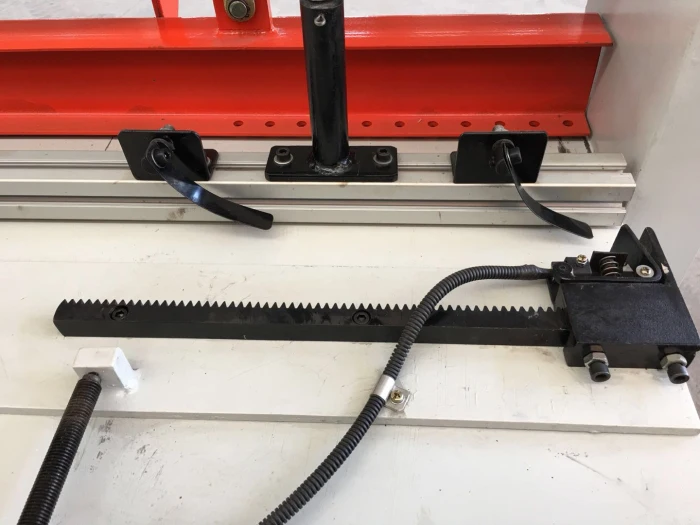

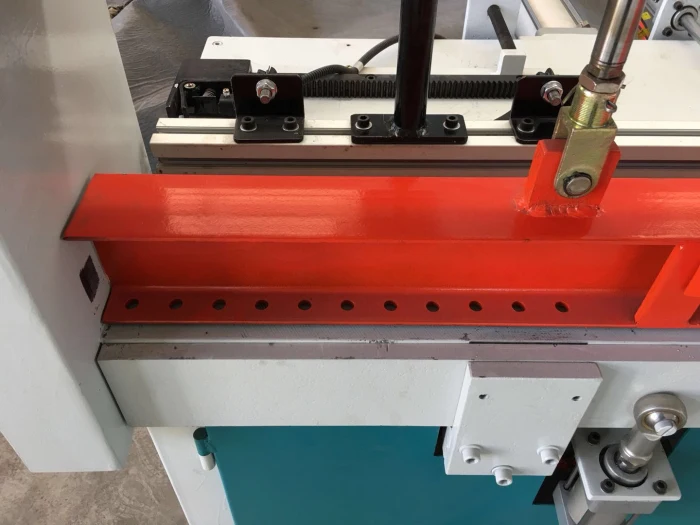

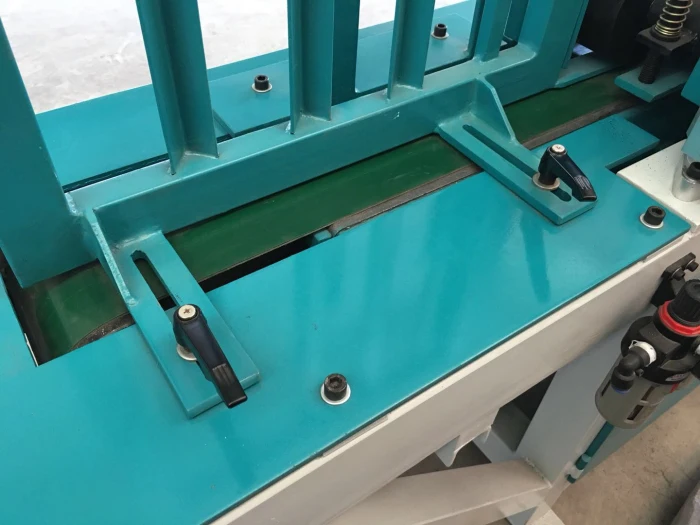

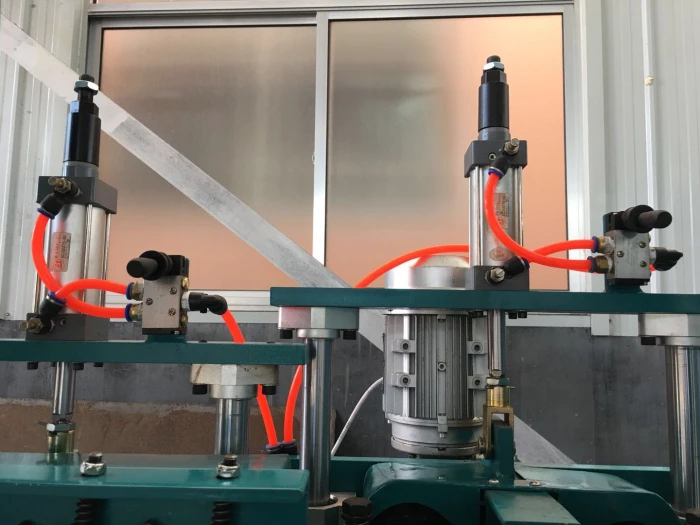

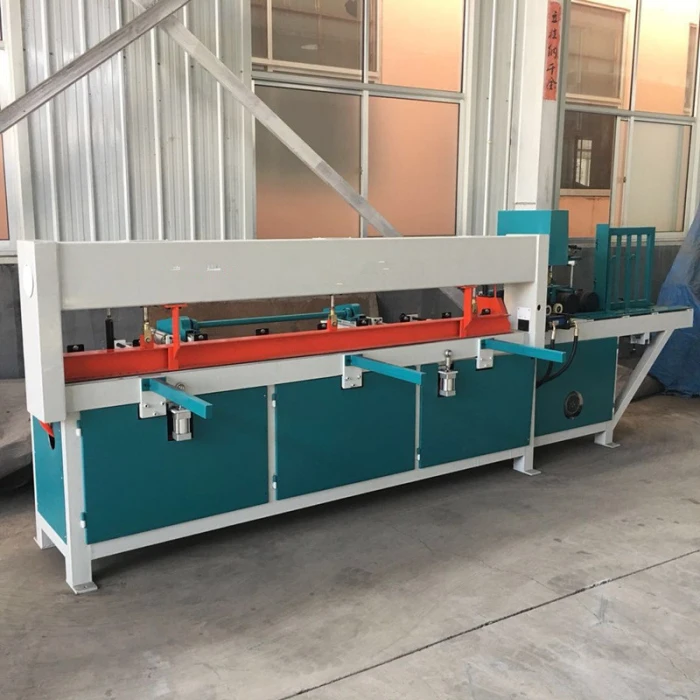

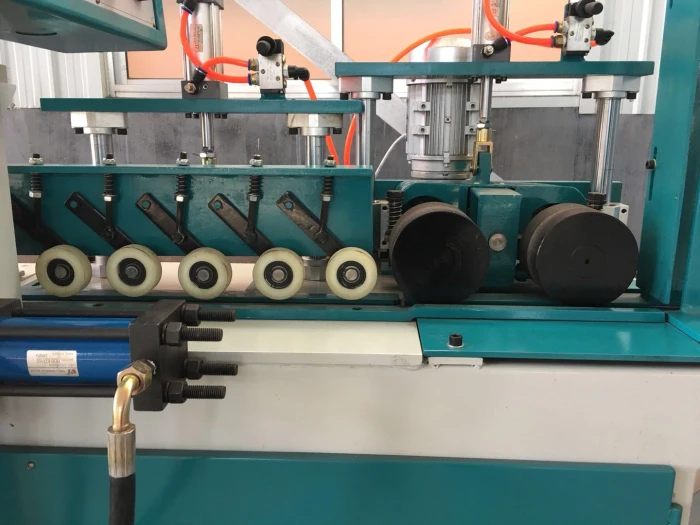

photo :
