CO2 Printer 40W USB DIY Laser Engraver Cutter CNC Engraving Cutting Machinery

Product details
Warranty:2 years;Laser Source Brand:other;
Application:Laser Cutting;Keywords:laser engraver;
Supply Ability:20000 Set/Sets per Month;Local Service Location:None;
Applicable Material:Acrylic,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood;Certification:CE,ISO;
Cooling Mode:Water Cooling;Key Selling Points:Automatic;
After-sales Service Provided:Online support;Packaging Detail:carton box with foam;
Cutting Thickness:0-4mm;CNC or Not:Yes;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Function:laser engraving cutting;
Condition:New;Cutting Area:300x200mm;
Brand Name:sihao Laser Engraving machine;Graphic Format Supported:AI,PLT,DXF,BMP,DST,DWG,LAS,DXP;
Laser Type:CO2;Place of Origin:China;
Cutting Speed:0-350mm/s;Applicable Material:Crytal;
Applicable Industries:Laser engraver;Port:Shanghai;
Showroom Location:None;After Warranty Service:Online support;
Weight (KG):29 KG;
Product Description


CO2 Printer 40W USB DIY Laser Engraver Cutter CNC Engraving Cutting Machinery


Introduction
This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

1.Applicable Material:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
2.Applicable Industry:
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.





FDA Compliant:Yes
CE Certification:Yes
ISO9001 Quality Certification:Yes
Laser Type:CO2 Gas
Tube Trigger Volt:20KV
Tube Operating Volt:15KV
Current:0~22mA
Engraving Area:12x8in (300x200mm)
Maximum Item Size to Engrave:10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm)
Laser Tube (life hours):1000-1300 Hours
Laser Power:40W
Engraving Speed:0-13.8 in./s  (0-350mm/s)
Cutting Speed:0-1.38 in./s (0-35mm/s)
Minimum Shaping Character:0.04 X0.04in (1mm X 1mm)
Resolution Ratio:0.001 in (0.026mm) / (1000dpi)
Power Supply:

110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries

all over the world.

Please tell us what voltage you want after you buy this item.

Resetting Positioning:≤0.0004 in (0.01mm)
Motor Type:Stepper Motor
Software Supported: CorelDraw software (both NewlyDraw and NewSeal function)
Power Consumption:≤250W
Operating Temperature:32-113F (0-45C)
Graphic Format Supported:BMP/JPG/JPEG/WMF/EMF/PLT
Water Cooling:Water Pump include
Recommended Spare Parts/Consumables:Laser Tube, Focal lens,Reflection lens

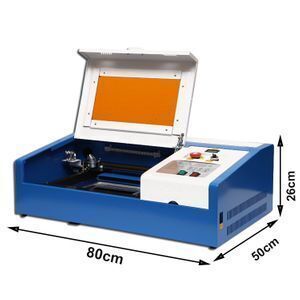

Product Dimensions:37.4 X 24.8 X 16.1in.(950x630x410mm)
Product Weight:61.95lbs(28.1kg)

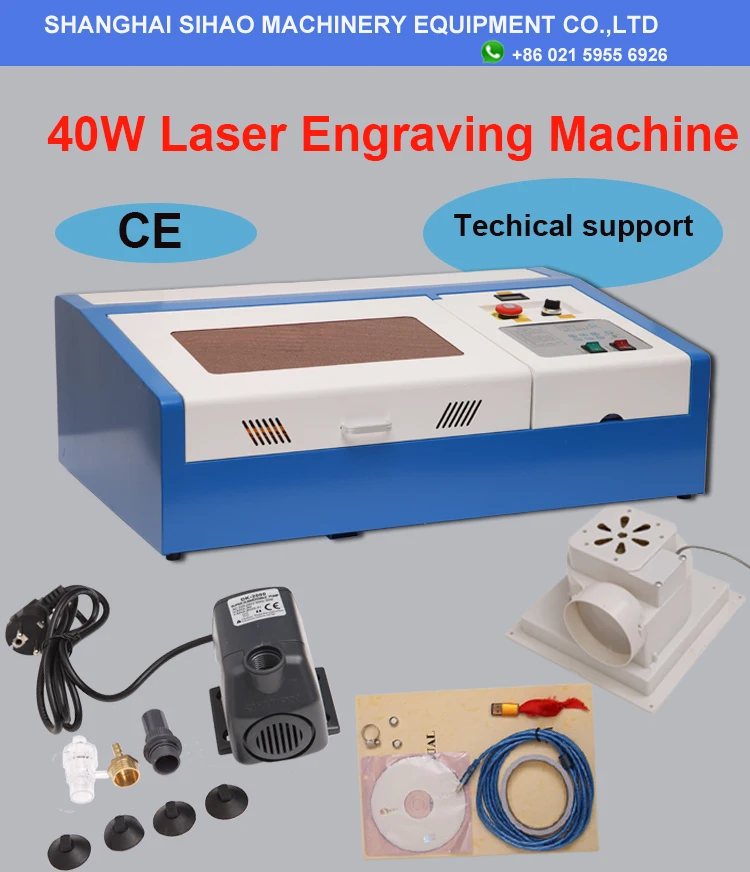

Packaging & Shipping

 1 x CO2 LASER Engraver
1 x Water Pump
1 x Smoke Pipe
1 x Smoke Fan
1 x Power Wire
1 x USB Cable
1 x USB Key
1 x Accessory Bag
1 x Instruction Video
1 x English User Manual
