Mini Chinese Brand New Asphalt Milling Machine by Cold Type

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $52700.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Table Travel (Z) (mm):	1200;	Max. milling depth:	120mm;
Brand Name:	China;	CNC or Not:	Normal;
Cutter number:	48/36 pcs;	Full load mass:	5100kg;
Place of Origin:	Jiangsu China;	Gradeability:	72%;
Engine model:	BF4M2012-10T3R;	Model Number:	XM353;
Certification:	CE ISO;	Package Type:	nude;
Warranty:	1 year;	Type:	Vertical;
Operating speed:	0~40 m/min;	Weight (KG):	435;
Key Selling Points:	High Productivity;	Dimension(LWH):	282012252050mm;
Single package size:	35X35X35 cm;	Spindle Taper:	3;
Table Travel (Y) (mm):	2100;	Applicable Industries:	Construction works ;
Engine speed:	2200rpm;	Min.ground clearance:	120mm;
Single gross weight:	50 KG;	Table Travel (mm):	220;
Table Travel (X) (mm):	2200;	Traveling speed:	0~6 km/h;
Selling Units:	Single item;	Year:	2019;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Voltage:	220v/380v;
Power (kW):	56;	Range of Spindle Speed(r.p.m):	210 - 220;
Condition:	New;

Mini Chinese Brand New Asphalt Milling Machine by Cold Type

Please Contact

Aring Zhou

Email: aring @newindu.com

Wechat/Whatsapp/Mobile: +86 15855426352

Skype: zyy1520724641 @outlook.com

Main Parameters

MODEL		Unit	XM35
Engine	Engine model		YC4D80-T21
Engine	Rated power /speed	Kw/rpm	56/2200
Performance parameters	Operating speed	m/min	0-25
	Travel speed	Km/h	0-6
	Gradeability	%	20
	Ground clearance	mm	≤80
	Operating weight	Kg	4350
Operating parameters	Max.milling and mixing width	mm	350
	Max.milling and mixing depth	mm	60
	Number of tools		38
	Milling drum diameter	mm	460
	complete dimension(LWH)	mm	282012252050
dimensions	Conveyor(LWH)	mm
	Fuel tank	L	80
	Hydraulic oil tank	L	70
	Water tank	L	220
Travel mode			Tire

Product Description

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.

The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic

• Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.

• Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.

• The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.

• The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.

• The imported hydraulic elements have high working reliability.

• Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.

• Hydraulic handheld breakers and rumble strip equipment can be selected.

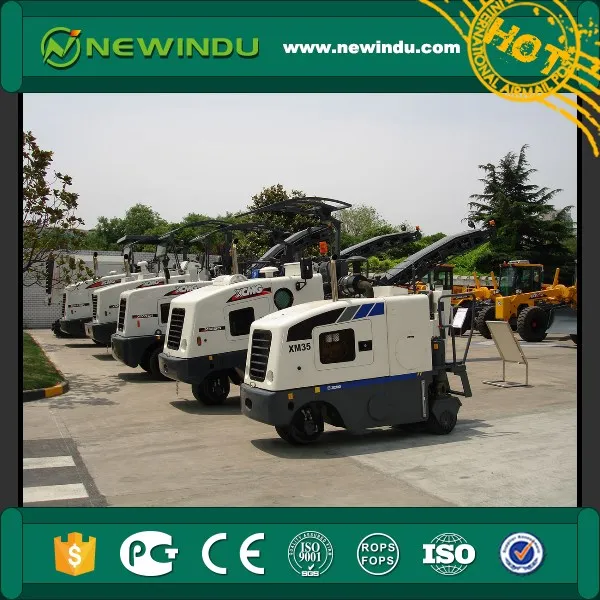

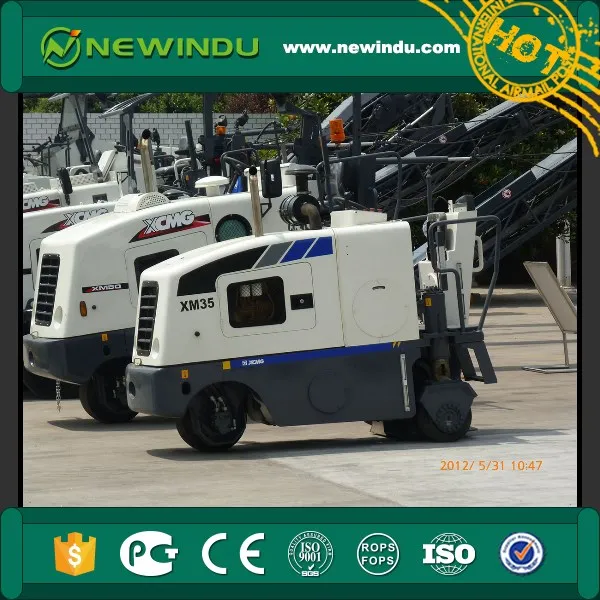

Product Image
