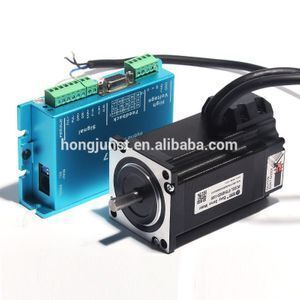

high quality Leadshine NEMA 23 Closed Loop Stepper motor CL57+57CME23

Supplier: Sichuan Hongjun Science And Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Jack Yan
Price: $78.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Construction:	Hybird;	Phase:	3;
Type:	Leadshine NEMA 23 Closed-Loop Stepper HBS86H+86HS40-EC-1000;	Efficiency:	IE 1;
Brand Name:	Leadshine;	Place of Origin:	Guangdong China;
Model Number:	CL57+57CME23;	Single gross weight:	3 KG;
Protect Feature:	Waterproof;	Current / Phase:	3.5A;
Package Type:	carton,wooden case... high quality Leadshine NEMA 23 Closed-Loop Stepper motor HBS507+573HBM20-1000;	Selling Units:	Single item;
Brand Name:	Leadshine;	Single package size:	30X20X20 cm;
Certification:	CCC,CE,ISO,ROHS,UL;	Package Preview:	https://sc02.alicdn.com/kf/HTB1rnJxoAUmBKNjSZFOq6yb2XXa7.jpg_640x640.jpg;
Commutation:	Brushless;	Type:	Hybrid;

high quality Leadshine NEMA 23 Closed-Loop Stepper motor

Descriptions
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Applications
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.
Specification

Phase	Series	Step Angle	Models	NEMA	FRAME	Current(A)	Holding Torque	Weight(kg)	Motor length
Two phase	86HBM	1.8 degree	86HBM80-01-1000	23	86	3.5A	1N.M	4kg	139m

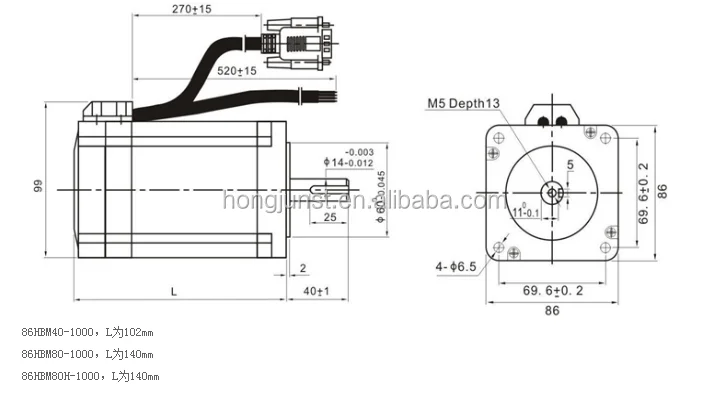

Dimension

Wiring Diagram

Company Introduction

Cerifiations

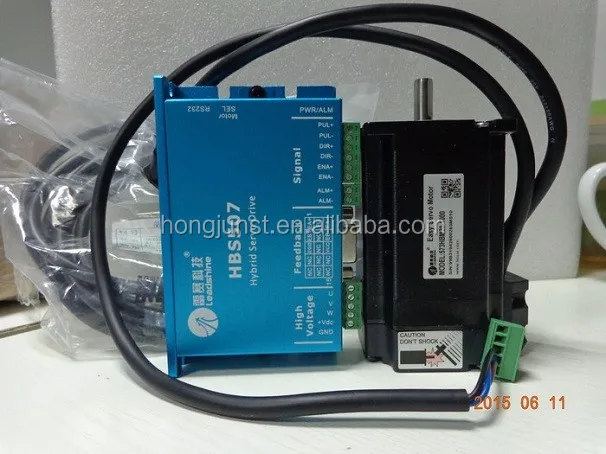

Product Photos

-Who We are?

As one of the leading manufacturer for gear motor and precision planetary gearbox, Hongjun Science and Technology Co., Ltd. works in this field for more than 15years! There are 1000workers in our factory including 40 technicians! We have the biggest market share in domestic China market and sales qty only for AC gear motor is 850000pcs in 2013!
- What We Do?
We provide not only products but also solutions for customers! Our main products include AC gear motor, DC gear motor, high precision planetary gearbox used for stepper motor and servo motor! Also we provide customize service according to our customers' requirement!
- How is Quality?
Manage workshop by 5S and all products are most strictly checked by several processes before leaving our factory! We have got certification of ISO9001, CCC, CE, UL, RoHS!
- What is the Application?
Our products are widely used in machine tools ( CNC lathes), textile machinery, knitting machinery, bank appliances, industrial assembly line (automatic door opener), cleaning equipment (sweeping machine), packaging machinery, pharmaceutical machinery, educational instrument, office equipment ( Cementing machine), medical devices, health care equipment, warehouse automation, industrial robots and so on
- How About Overseas Market?
Our products have been exported worldwide and we have now 2000 customers in overseas market and set up office in Canada, Europe and Japan
