NSK NTN KOYO Angular Contact Ball Bearing Machinery Parts High Precision Rate Bearing

-Angular Contact bearing

Angular contact ball bearing can bear radial load and axial load at the same time. It can work at high speed. The larger the contact angle is, the higher the axial bearing capacity is. High precision and high-speed bearings usually have a 15 degree contact angle. Under the action of axial force, the contact angle will increase. Single row angular contact ball bearings can only bear axial load in one direction. When bearing radial load, it will cause additional axial force And only limit the axial displacement of the shaft or shell in one direction. If it is installed in pairs, make the outer rings of a pair of bearings opposite, that is, wide end face to wide end face, and narrow end face to narrow end face. In this way, the additional axial force can be avoided, and the shaft or shell can be limited to the axial clearance range in two directions..

-Size of bearing

L Single column: 78xx, 79xx, 70xx, 72xx, 73xx, 74xx

2 Micro: 70X

3 Double columns: 52xx, 53xx, 32xx, 33xx, ld57, ld58

4 Four point contact: qj2xx, qj3xx

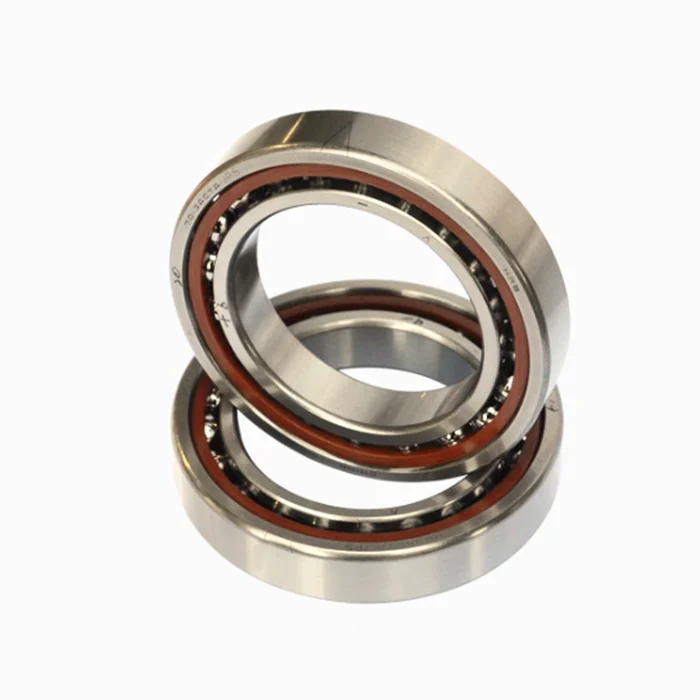

-Product show

-Applicaton of the bearing

              Hungjun As one of the most professional bearing supplier in China, we has been specializing in this field for over 10 year. Our co-work factory, which has very proven technique of bearings, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. In Europe,  to build new cnc machines, machinery arms and robots, because of our good quality and perfect price is loved by most customers.

Packing Details:

 ----------------------------------------------------------------------------------------------------------------------------------------------------

1,Mini Bearing: Often using tube package then cartons within nylon bag.

2,Big Bearing:Often Single Box package then cartons within bylon bag.

3,Heavy bearing: Nylon rope rolling bearing then wooden box.

Shipping

-----------------------------------------------------------------------------------------------------------------------------------------------------

1,Small quantity:  By EXPRESS( DHL, FEDEX, TNT, UPS , ARAMAX, EMS and etc. )

2,Meddle quantity but hurry: By AIR

3,Big quantity: By SEA, By TRAIN, BY LAND and etc

Payment

-----------------------------------------------------------------------------------------------------------------------------------------------------

We can aceept a lot of payment terms:

Like : T/T , Alibaba ensurance, Paypal , Western Union, Wechat, Ali pay and etc.

1.Q:How about the warranty?
A:All goods have 1 year warranty.
2.Q:What about the delivery time?
A:Normally in 1 Week.
3.Q: Other suppliers have a better price than yours?
A:To create the greatest benefit for clients is our belief, if you have a better price, please let we know. We will trythe best to meet your price and support you.
4.Q:What about the shipment?
A:We can arrange shipment by DHL, FedEx, UPS,TNT, EMS with competitive price, of course, customers can also use their own freight forwarders.
5.Q:How about the terms of payment?
A:Generally through T/T, Paypal and Western Union also accep
