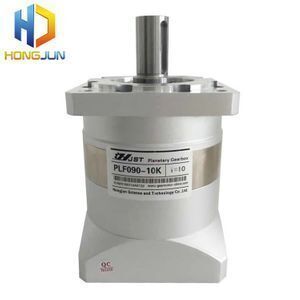

2 speed small gear box planetary reducer gearbox for servo motor

Supplier: Sichuan Hongjun Science And Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Jack Yan
Price: $59.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Heat treatment:	Gear Grinding;	Gearing Arrangement:	Planetary;
Warranty:	1 Year;	Output Torque:	customized;
Application:	Robotics, servo motor, stepper motor;	Single gross weight:	2 KG;
Product name:	Precise Planetary Gear Box;	Single package size:	1X1X1 cm;
Color:	Customer Requirement;	Material:	Metal;
Place of Origin:	Sichuan China;	Output Speed:	3-1000rpm;
Mounting Position:	Vertical (flange Mounted);	Certificate:	ISO9001;
Bearing:	Bearing;	Input Speed:	3500rpm;
Selling Units:	Single item;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Package Type:	Generally, our small planetary gearbox are packaged with carton, big one will be packaged with wooden case. All reducers will be protected with soft material inside the box. We can aslo accpet customized packaging method.;	Ratio:	3:1, 4:1, 5:1, 7:1, 10:1, ..., 1000:1;
Brand Name:	Hongjun;

This PLE60 one stage reduction planetary gearbox has 4 different gear ratios: 4:1 5:1 7:1 and 10:1
It can match well with the 400W servo motors for main brands such like Panasonic Mitsubishi Delta Yaskawa Teco ect.
Its better if you can send us your motor drawing to confirm the gearbox model.
Please contact us if you need other gear ratio.

Product Description

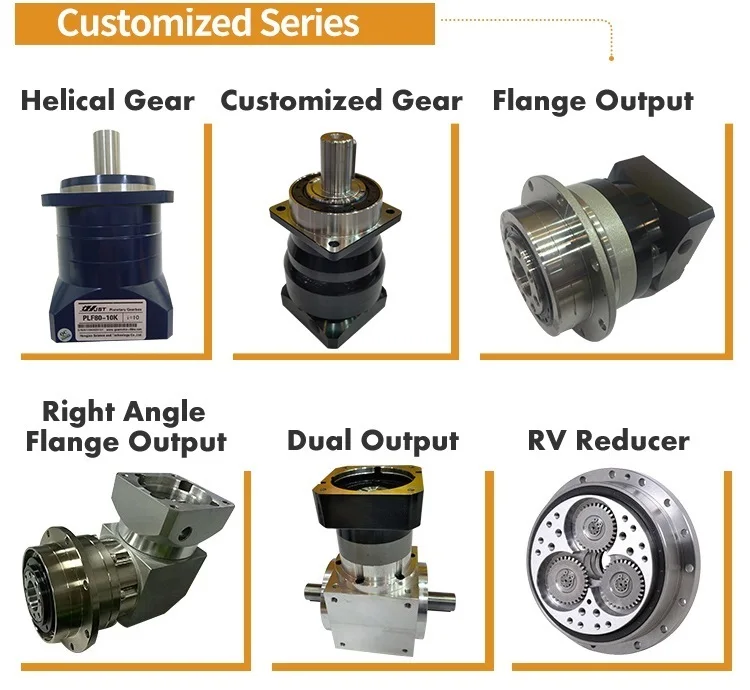

To meet the different precision and usage occasions requirements, we supply two kinds of 2 speed planetary gearbox: spur planetary gear reducer, bevel helical planetary reducer gearbox. And also RV cycloidal pin wheel reducer. They're widely used for stepper motor, servo motor and other high precision industrial occasions, which need to reduce the speed or enlarge the torqure, such as robotics! About the frame size, our small planetary gearbox external diameter can be 40mm, the biggest one can be 242mm. And the gear ratio ranges from 3:1 to 1000:1. Please check the following specifications details:

Specifications:

Series	PLE, PLF, PLS, PLX, WPLE, WPLF
Gearbox outline size (mm)	40, 60, 80, 90, 142, 160, 190, 242
Stage	Single stage	Two stage	Three stage
Ratio	3:1, 4:1, 5:1, 7:1, 10:1	12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1	64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1
Rated input speed (rpm)	3500	3500	3500
Max input speed (rpm)	6000	6000	6000
Efficiency (%)	96	94	90
Lowest backlash (arcmin)	3	6	8
Niose (dB)	≤62	≤62	≤62
Life (h)	30000
Lubrication	Lifetime lubrication
Level of protection	IP65

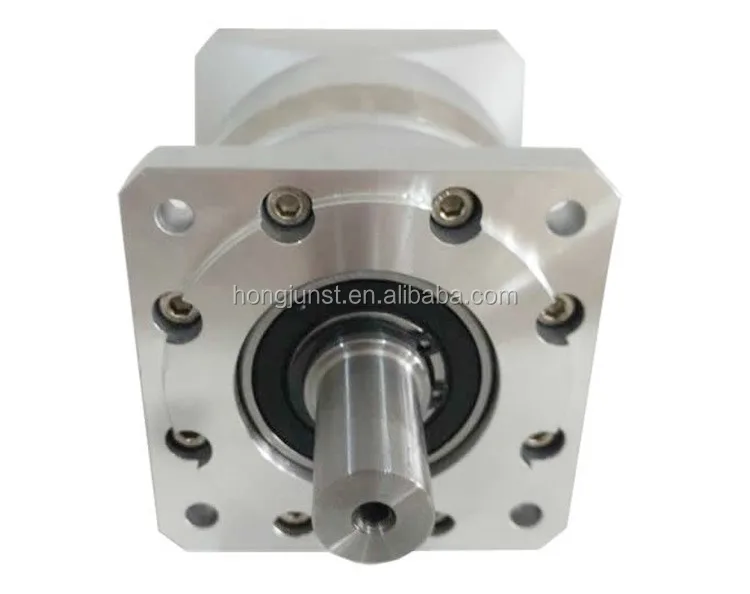

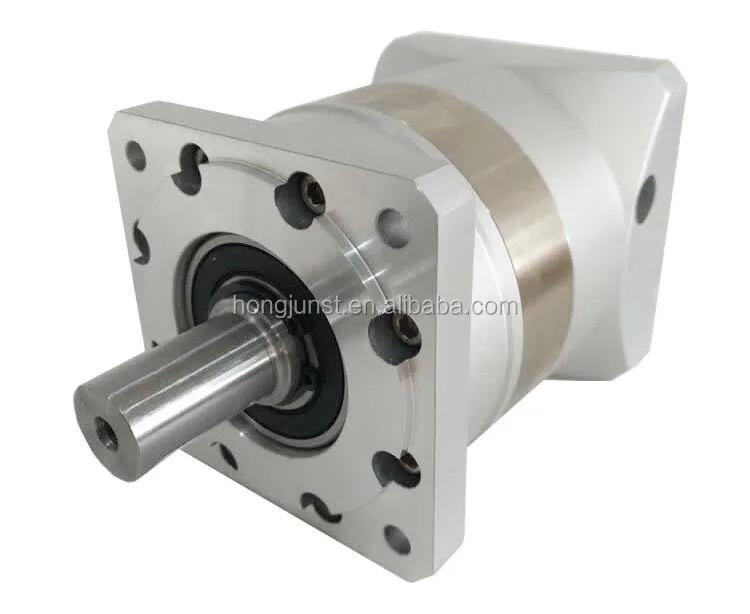

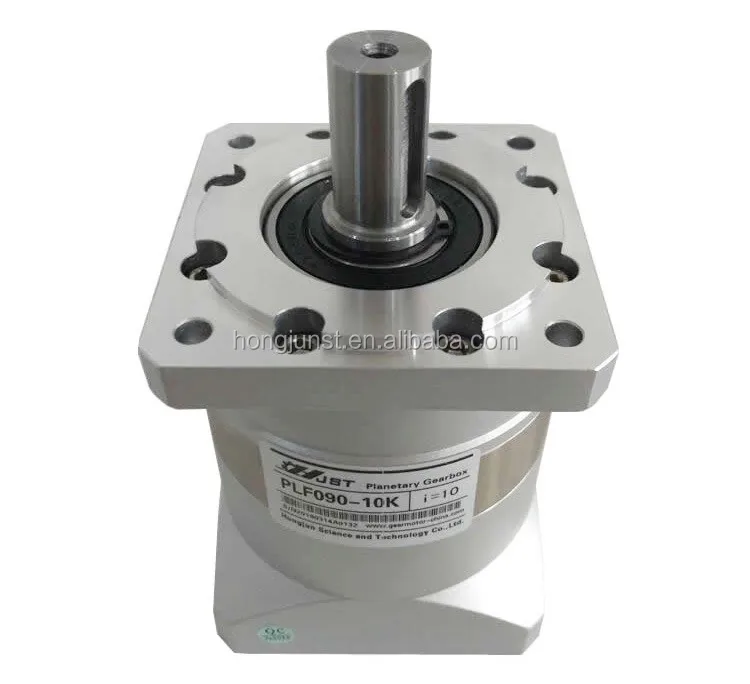

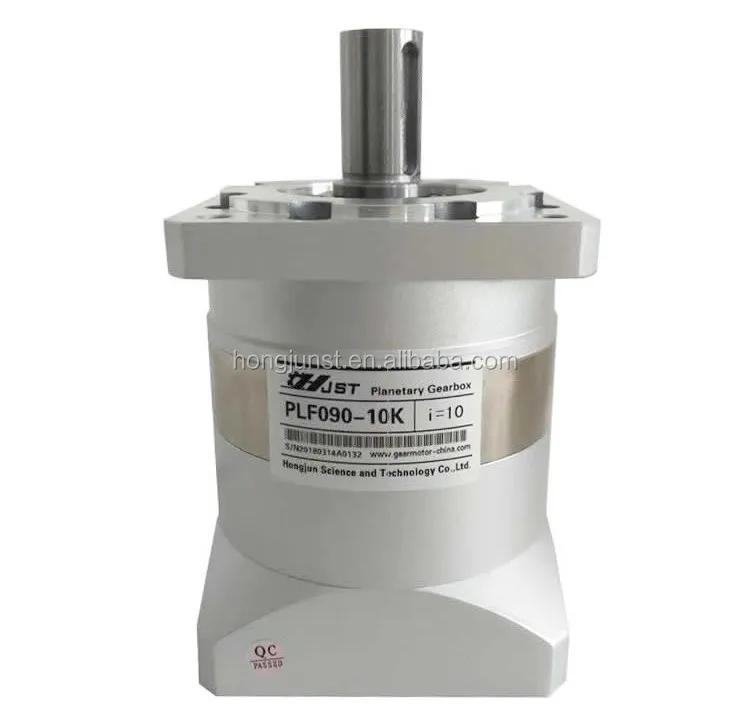

Product Images

Related Products

Packaging & Shipping

Generally, our small planetary gearbox are packaged with carton, big one will be packaged with wooden case. All reducers will be protected with soft material inside the box.

We can aslo accpet customized packaging method.

Samples planetary reducer will be shipped in 5 days. Bulk order lead time is up to the quantity.

About the shipping method, we support DHL, TNT, FedEx, EMS, UPS door to door, and also by sea, by air.

Compay Profile

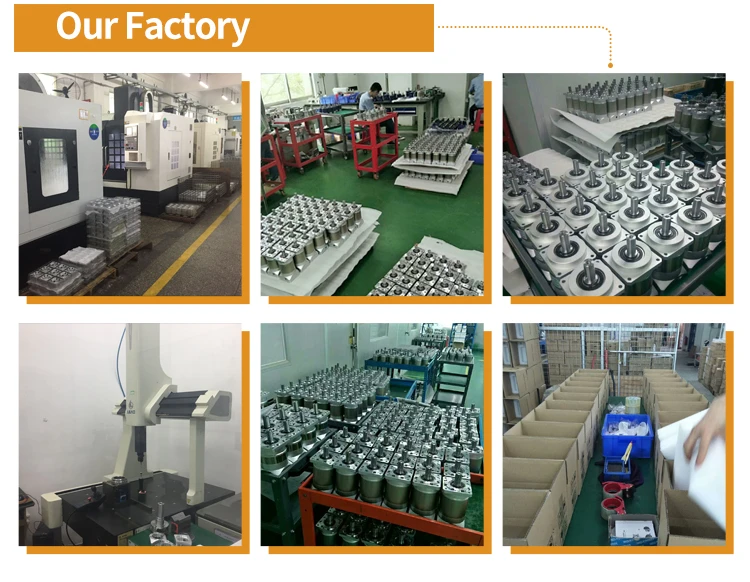

As one of the most professional planetary gearbox manufacture in China, Hongjun Science and Technology Co. Ltd. has been specializing in this field for over 10 year. Our factory, which have very proven technique of producing planetary gear box, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. Our products are really popular in many markets, especially in Europe, our reducers are widely used to replace famous brand precision gearbox planetary, such as NEUGART, because of our good quality.

Our Services

1. On receiving Inquiries or any other messages from customers, we promise to reply in several hours. We're on line for customers for a very long time every day;

2. We supply our customers not only standard reducers, but also customized products;

3. After receiving payment, we'll arrange production at once. When production has been finished, goods will be shipped with well and proper packaging soon.

4. We promise to give all our customers perfect after-sales services.
