220V AC water Float level switch

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $1.90 / >=5 units
Min. Order: 5 units

Click here to contact

Product details

Cable length:	1m,2m,3m,4m,5m,6m customize;	Application:	Water Tank;
Operating Temperature:	-10℃~100℃;	Feature:	corrosion proof type customize;
Flow Rate:	water Float switch;	Port:	Guangzhou, Shanghai;
Brand Name:	HOLYKELL;	Packaging Detail:	standard export carton for 220V AC water Float level switch;
Place of Origin:	China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Media Type:	Water;	Supply Ability:	100000 Piece/Pieces per Month Water float switch;
Power supply:	AC220V;	Model Number:	HFS-3;
Product type:	float switch;

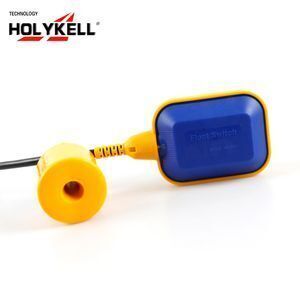

220V AC water Float level switch

Why Choose and trust HOLYKELL ?

You benefits from:

Factory experience:

More than 16 years of experience in Level sensor industry.
large stock:

within 24 hours delivery for standard specifications.
Supply ability:

At least 50000 pcs per Month.
Supply area:

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa

Certificate:

CE, RoHS, ATEX audited by TUV Rheinland and ECM

OEM/ODM : Accept.

You Credit Guarantee:

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

Trade Assurance: 558 Transactions, total amount is above $ USD 361,000+
Near 50% buyers found water level sensor and contact us, Holykell in ALIBABA
View Holykell 6000+, Send inquiry 200+, Quote 400+ (half of 2017 years)

Product Description

HOLYKELL water pump float switch is widely used to control the liquid level.

Our float switch quality is stable, safe, and pass CE approval.Flaot Switch's operation voltage is 220vac, and current can be up to 10A. Applies to branch water,sewage,aid-base solution and oil.

float switch make use of mercury switch as contact component. When liquid lift up to contact float, the float will have variable angles. The switch will have ON or OFF contact signal output when the angle is larger than 10 Degree.

1.Simple construction,reliable performance of cable float switch/water pump, tank float switch

The product can output stable and reliable switch control signal of "of making", breaking "without any fault action,so its eliability is very high and antiinter-ference is strong .

2. Sturdy and durable,need not maintain of cable float switch/water pump, tank float switch

The product can be used for a long time after it being installed.Almostno maintence and repairing problem would occur during its operation period.

Installation of water float switch:

Use the black and blue wire.

when the float is on the level surface,the contact is under the obstructed status,when the float is under the water,the contact is turn-on status;

Use the black and yellow wire

When the float is on the level surface,the contact si turn-on status,when is under the water,the contact is the obstructure status;

Installation of fixed hammer

The level control height is decided by the cable length of magnetic float type level switch and the position of the hammer;

The ways of install the hammer

Displace snap ring of the plastic non-cone terminal,and to the appropriate place on the cable.

Then let the cable penetrate the terminal of the plastic cone,the snap ring of set on the cable limit the position of the hammer;

Finally,fixed the cable outside of the container,let the cable connect to control box and avoid using middle joint.if it need joint forbid to put the joint in he water.

FAQ

Q:What are the products HOLYKELL offer ?

A: Pressure sensor, level sensor, flow meter, water float switch and digital controllers.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation or send my inquiry to?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Or contact Ms. Anna Loh directly at (email: sales09 at holykell.com, Whatsapp&Viber 86-18473365257) you will get the reply within 12hours.
