Zinc Plate Hex Washer Head din 7504 Self Drilling Screws

Product details
Tapping screws type:Hexagon head self-drilling screws;Measurement system:Metric;
Port:Shanghai;Packaging Detail:Packing: Cartons,small box,color box,plastic buckets,pallets.;
Payment Terms:L/C,T/T,Western Union,Credit card,Paypal,Alibaba trade assurance;Supply Ability:8000000 Piece/Pieces per Month Self drilling screws;
Application:Automotive Industry,Food & Beverage,General Industry,Healthcare,Heavy Industry,Mining,Retail Industry,Water Treatment;
Product Description

Product :Zinc Plate Hex Washer Head din 7504 Self Drilling Screws



Material:Carbon steel

Head:Hex washer head

Surface:Zinc plate,yellow zinc.

Drilling point:#2,#3,#4,#5



Selecting the drilling point as below:





DRILL POINT#

DRILLING CAPACITY

APPLICATION

REDUCED POINT

2MM (1+1)

Light duty steel to steel

#3

5 MM(2+3)

Medium duty steel to steel

#4

8MM

8 mm steel to steel

#5

12MM

Heavy duty steel to steel



Selecting the Sizes as below:



Diameter : #6, M3.5

M3.5 X 19

#6 X 3/8"

M3.5 X 45

#6 x 1-3/4"

M3.5 X 22

#6 X 1/2"

M3.5 X 47

#6 x 1-7/8"

M3.5 X 25

#6 X 5/8"

M3.5 X 50

#6 x 2"

M3.5 X 28

#6 X 3/4"

M3.5 X 60

#6 x 2-3/8"

M3.5 X 32

#6 X 7/8"

M3.5 X 63

#6 x 2-1/2"

M3.5 X 35

#6 X 1"

M3.5 X 65

#6 x 2-5/8"

M3.5 X 38

#6 X 1-1/8"

M3.5 X 75

#6 x 3"

M3.5 X 41

#6 X 1-1/4"





















Diameter : #8, M4.2

M4.2 X 13

#8 X 1/2"

M4.2 X 45

#8 X 1-3/4"

M4.2 X 16

#8 X 5/8"

M4.2 X 47

#8 X 1-7/8"

M4.2 X 19

#8 X 3/4"

M4.2 X 50

#8 X 2"

M4.2 X 22

#8 X 7/8"

M4.2 X 55



M4.2 X 25

#8 X 1"

M4.2 X 60

#8 X 2-3/8"

M4.2 X 28

#8 X 1-1/8"

M4.2 X 63

#8 X 2-1/2"

M4.2 X 32

#8 X 1-1/4"

M4.2 X 65

#8 X 2-5/8"

M4.2 X 35

#8 X 1-3/8"

M4.2 X 70

#8 X 3/4"

M4.2 X 38

#8 X 1-1/2"

M4.2 X 72

#8 X 2-7/8"

M4.2 X 41

#8 X 1-5/8"

M4.2 X 75

#8 X 3"









Diameter : #10, M4.8

M4.8 X 16

#10 X 5/8"

M4.8 X 50

#10 X 2"

M4.8 X 19

#10 X 3/4"

M4.8 X 55



M4.8 X 22

#10 X 7/8"

M4.8 X 60

#10 X 2-3/8"

M4.8 X 25

#10 X 1"

M4.8 X 63

#10 X 2-1/2“

M4.8 X 28

#10 X 1-1/8"

M4.8 X 65

#10 X 2-5/8"

M4.8 X 32

#10 X 1-1/4"

M4.8 X 70

#10 X 2-3/4"

M4.8 X 35

#10 X 1-3/8"

M4.8 X 75

#10 X 3"

M4.8 X 38

#10 X 1-1/2"

M4.8 X 80



M4.8 X 41

#10 X 1-5/8"

M4.8 X 88

#10 X 3-1/2"

M4.8 X 45

#10 X 1-3/4"

M4.8 X 90

#10 X 3-5/8"

M4.8 X 47

#10 X 1-7/8"

M4.8 X 100

#10 X 4"









Diameter : #12, M5.5

M5.5 X 16

#12 X 5/8"

M5.5 X 60

#12 X 2-3/8"

M5.5 X 19

#12 X 3/4"

M5.5 X 63

#12 X 2-1/2"

M5.5 X 22

#12 X 7/8"

M5.5 X 65

#12 X 2-5/8"

M5.5 X 25

#12 X 1"

M5.5 X 70

#12 X 2-3/4"

M5.5 X 28

#12 X 1-1/8"

M5.5 X 75

#12 X 3"

M5.5 X 32

#12 X 1-1/4"

M5.5 X 80



M5.5 X 35

#12 X 1-3/8"

M5.5 X 88

#12 X 3-1/2"

M5.5 X 38

#12 X 1-1/2"

M5.5 X 90



M5.5 X 41

#12 X 1-5/8"

M5.5 X 100

#12 X 4"

M5.5 X 45

#12 X 1-3/4"

M5.5 X 113

#12 X 4-1/2"

M5.5 X 47

#12 X 1-7/8"

M5.5 X 125

#12 X 5"

M5.5 X 50

#12 X 2"













Diameter : #14, M6.3

M6.3 X 16

#14 X 5/8"

M6.3 X 82

#14 x 3-1/4"

M6.3 X 19

#14 X 3/4"

M6.3 X 88

#14 x 3-1/2"

M6.3 X 22

#14 X 7/8"

M6.3 X 90

#14 x 3-5/8"

M6.3 X 25

#14 X 1"

M6.3 X 100

#14 x 4"

M6.3 X 28

#14 X 1-1/8"

M6.3 X 110

#14 x 4-3/8"

M6.3 X 32

#14 X 1-1/4"

M6.3 X 113

#14 x 4-1/2"

M6.3 X 35

#14 X 1-3/8"

M6.3 X 120

#14 x 4-3/4"

M6.3 X 38

#14 X 1-1/2"

M6.3 X 125

#14 x 5"

M6.3 X 41

#14 X 1-5/8"

M6.3 X 130

#14 x 5-1/8"

M6.3 X 45

#14 X 1-3/4"

M6.3 X 138

#14 x 5-1/2"

M6.3 X 50

#14 X 2"

M6.3 X 140

#14 x 5-5/8"

M6.3 X 55



M6.3 X 150

#14 x 6"

M6.3 X 60

#14 X 2-3/8"

M6.3 X 160

#14 x 6-3/8"

M6.3 X 63

#14 X 2-1/2"

M6.3 X 170

#14 x 6-3/4"

M6.3 X 65

#14 X 2-5/8"

M6.3 X 175

#14 x 7"

M6.3 X 70

#14 X 2-3/4"

M6.3 X 180

#14 x 7-1/4"

M6.3 X 75

#14 X 3"

M6.3 X 190

#14 x 7-5/8"

M6.3 X 78

#14 X 3-1/8"

M6.3 X 200

#14 X 8"















Usage:



· Fixing cladding and roofing applications to hot and cold rolled purlins and rails.

· Fastening liner panels and general components to steel.

· Fixing steel to steel

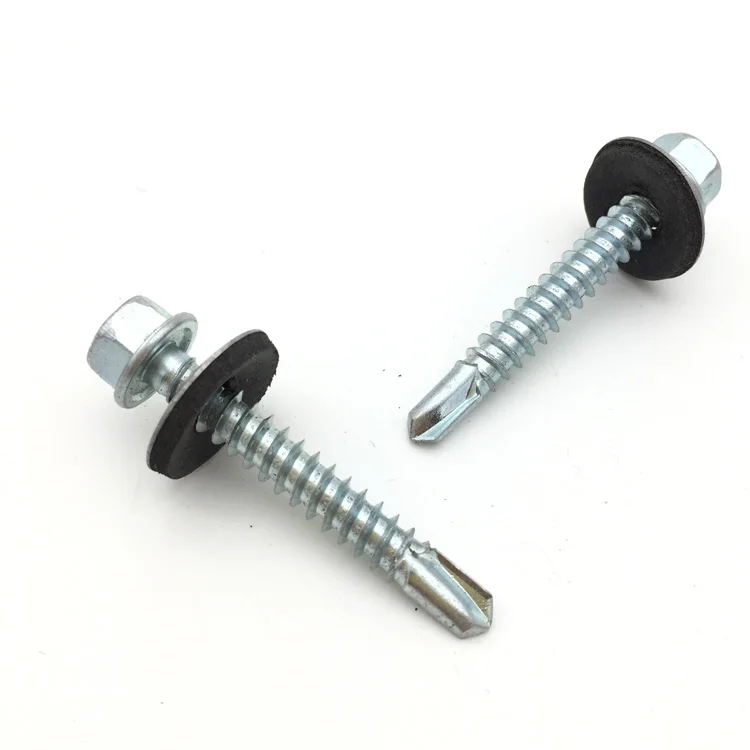

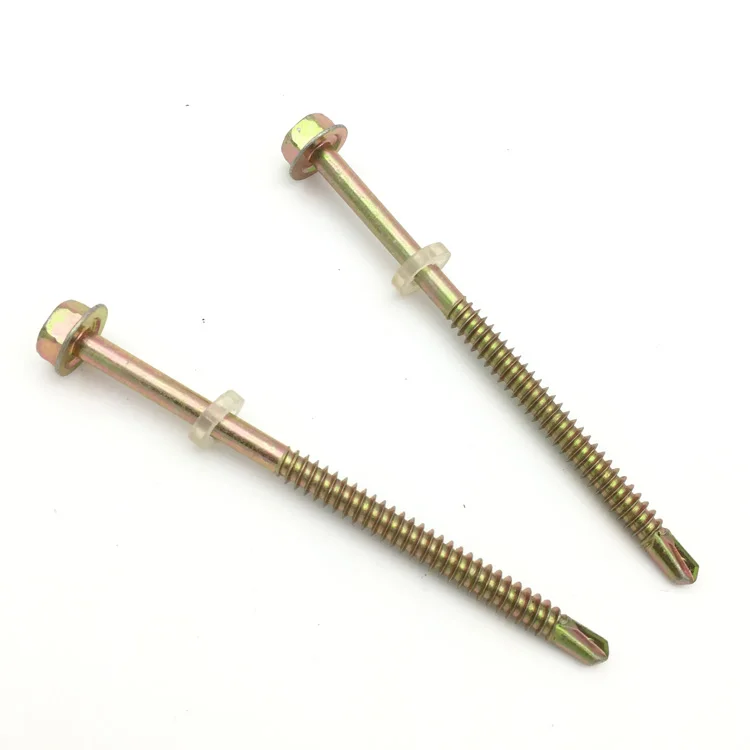

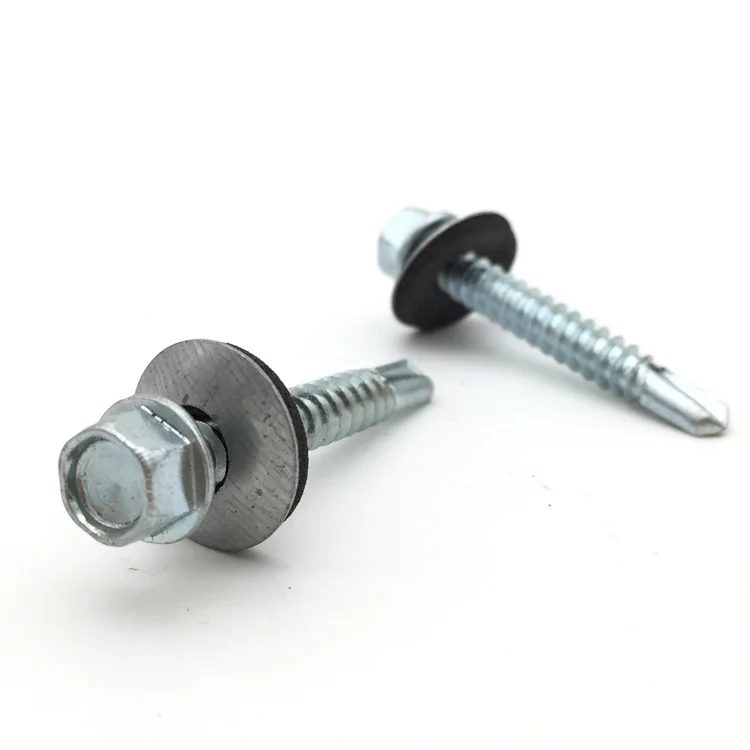

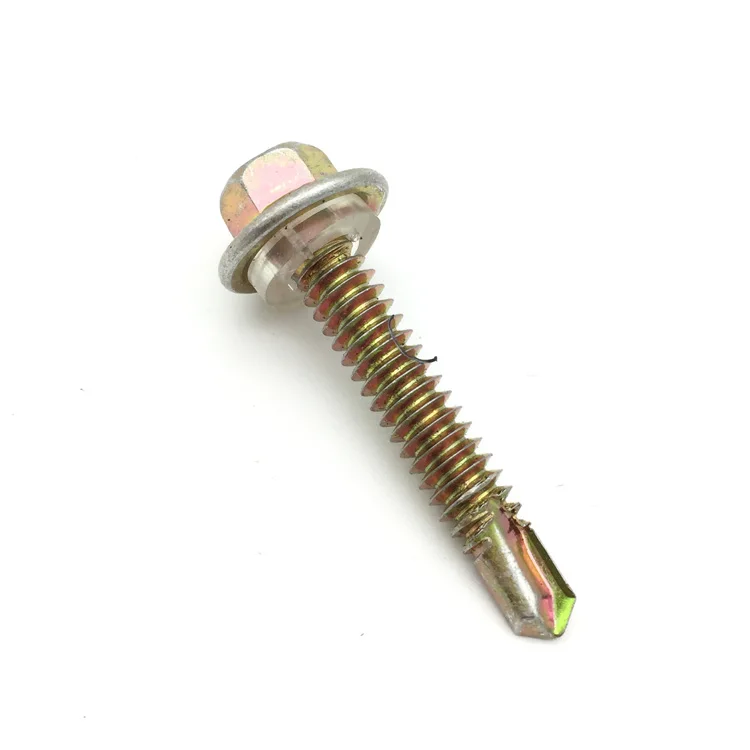

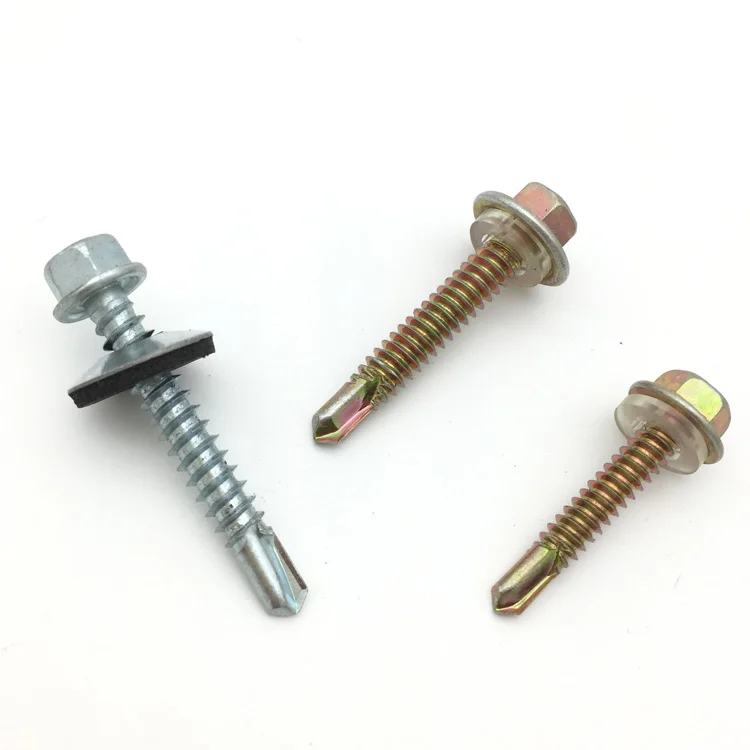

Product Photos







Company Information





Application Sample

Pls feel free to contact with us when you need the samples.

We will send you free samples,you only need pay for the delivery cost.
