Heavy Duty Hex Head Galvanized Zinc plated Self drilling Concrete Screw Anchor

Product details
Application:Concrete, brick and block;Standard:ANSI,DIN;
OEM:Available;Diameter:3/8'' 1/2'' 5/8'' 3/4'';
Packaging Detail:concrete Screw anchor 50pcs/box,100pcs/box. Exporting cartons, plastic buckets, special packing is also available;Material:Carbon Steel;
System of Measurement:INCH,Metric,Hot dipped Galvanised, zinc plated;Payment Terms:L/C,D/A,T/T,Western Union,MoneyGram,Credit card;
Diamater:3/8'' 1/2'' 5/8'' 3/4'';Capacity:High bearing capability;
Sample:Free of charge and will be dispatched in 2-3 days;Head Style:Flange head or Hex Head;
Model Number:Concrete Screw Anchor;Brand Name:GW;
Surface:Zinc , Galvanised, Yellow Zinc,Dacromet;Color:Silver;
Place of Origin:Jiangsu China;Material:Steel;
Port:Shanghai;Finish:Bright(Uncoated),Longer Life TiCN;
Supply Ability:5000000 Piece/Pieces per Month concrete Screw anchor;Length:1-3/4",2-1/2", 3" ,4'',5'',6'',4-1/2'',5-1/2'',6-1/4'';



Product Description

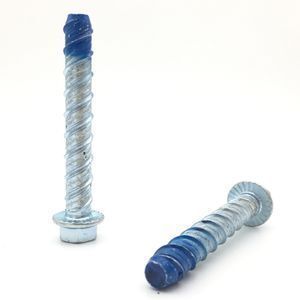

Heavy Duty  Hex Head Galvanized Zinc Plated self  tapping Concrete Screw Anchor

Specification:

This heavy duty concrete screw anchor  is zinc plated with hex head. It is simple to install, easy to identify and fully removable.  The steel threads along the anchor body tap into the hole during installation to provide keyed engagement. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.

  • Used to anchor into concrete, brick and blocks. Concrete Screw are ideal for fastening into Hollow Bricks.

  • Creates a thread into the material enableing the bolt to be removed without damage to the hole.

  • The galvanised coating is suitable for most outdoor applications.the zincgalvanise coating is suitable for most

     indoor applications.

Size: (Inch)

Size 1  Size 2
1/4" x 1-1/4"  5/8" x 3"
1/4" x 1-3/4"  5/8" x 4"
1/4" x 2-1/4"  5/8" x 5"
1/4" x 3"  5/8" x 6"
   5/8" x 6-1/2"
3/8" x 1-3/4"  5/8" x 8"
3/8" x 2-1/2"
3/8" x 3"  3/4" x 3"
3/8" x 4"  3/4" x 4"
3/8" x 5"  3/4" x 5"
3/8" x 6"  3/4" x 6"
   3/4" x 8"
1/2" x 2"  3/4" x 8-1/2"
1/2" x2-1/2"  3/4" x 10 "
1/2" x 3"
1/2" x 4"
1/2" x 5"
1/2" x 6"
1/2" x 6-1/2"
1/2" x 8"

Metric size (mm)
