Bright Zinc plate Cup Head Coach Bolt/Carriage Bolt

Supplier: Shijiazhuang Goodwell Import&Export Co., Ltd.
Region: Hebei, China
Contact: Mr Mike Ho
Price: $0.02 / >=5000 pieces
Min. Order: 5000 pieces

Click here to contact

Product details

Bolts type:	Round head bolts,Round head bolts;	Application:	Automotive Industry,General Industry,Heavy industry,Oil & Gas,Retail Industry,mining,water treatment;
Packaging Detail:	General Purpose Threaded Coach Bolts Bright Zinc plate Cup Head Bolt & Nut Each Small Box 50/100/200/500/1000pcs Coloful box,plastic box/bucket and bar code is available.;	Material:	STEEL,STEEL;
Port:	Shanghai;	Measurement system:	Metric,Metric;
Package Preview:	;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Credit card,alibaba trade assurance;
Supply Ability:	800000 Piece/Pieces per Month Zinc plated Coach Bolt;

Product Description

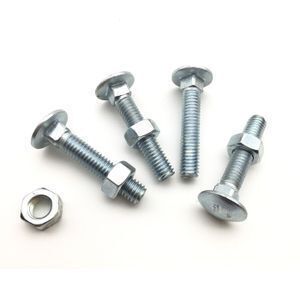

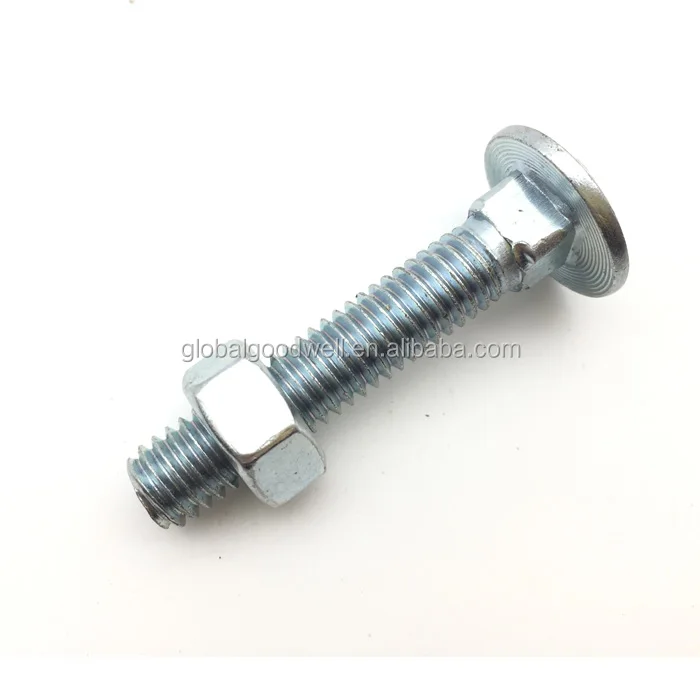

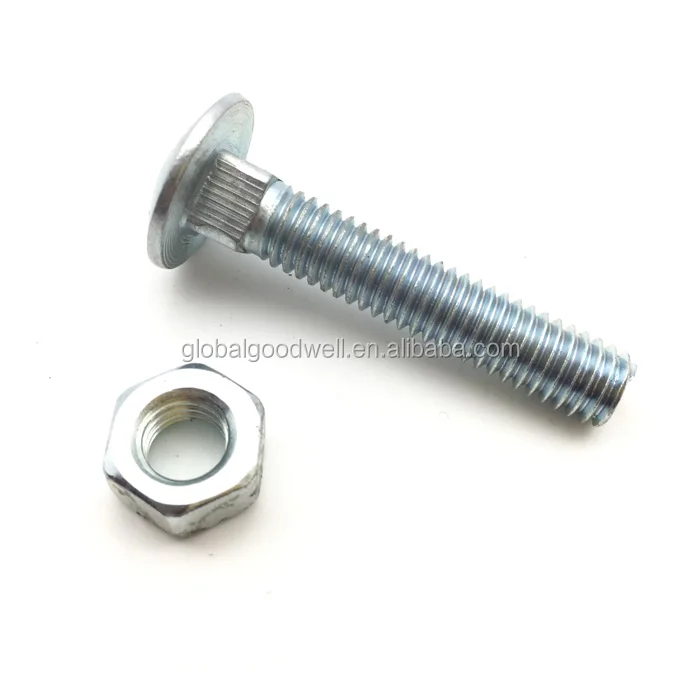

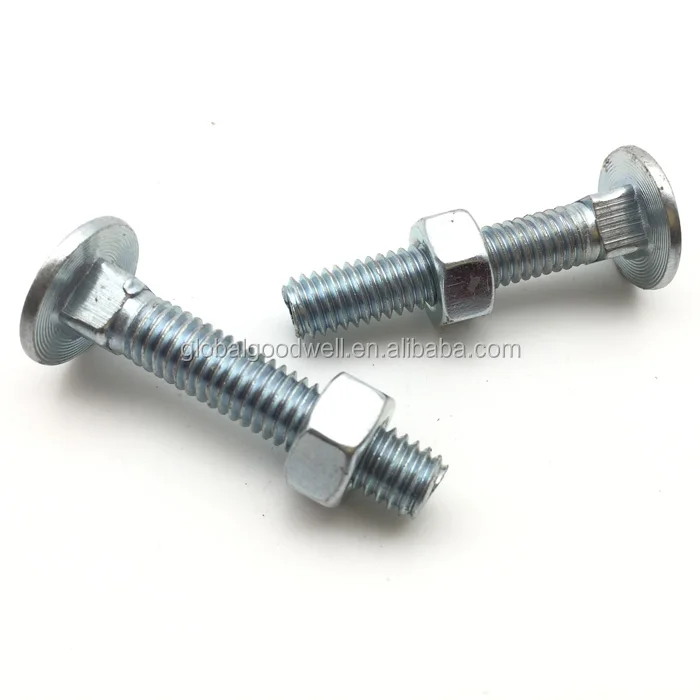

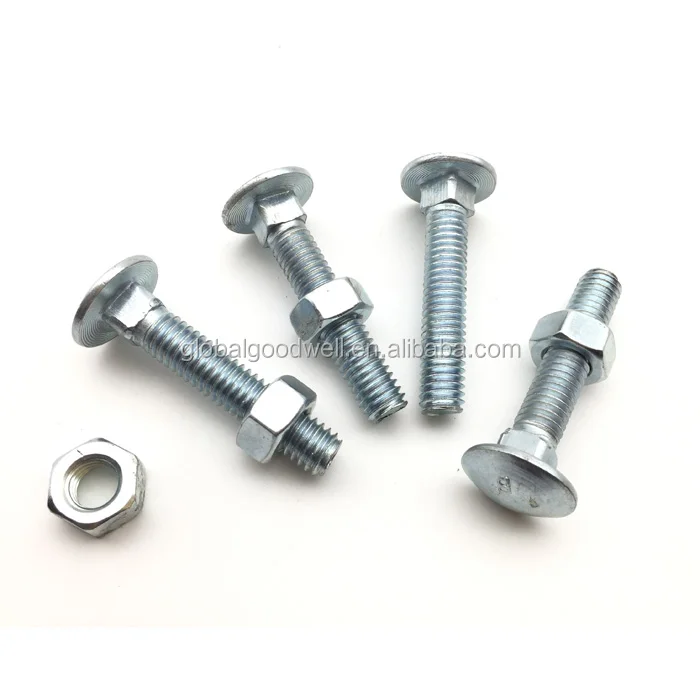

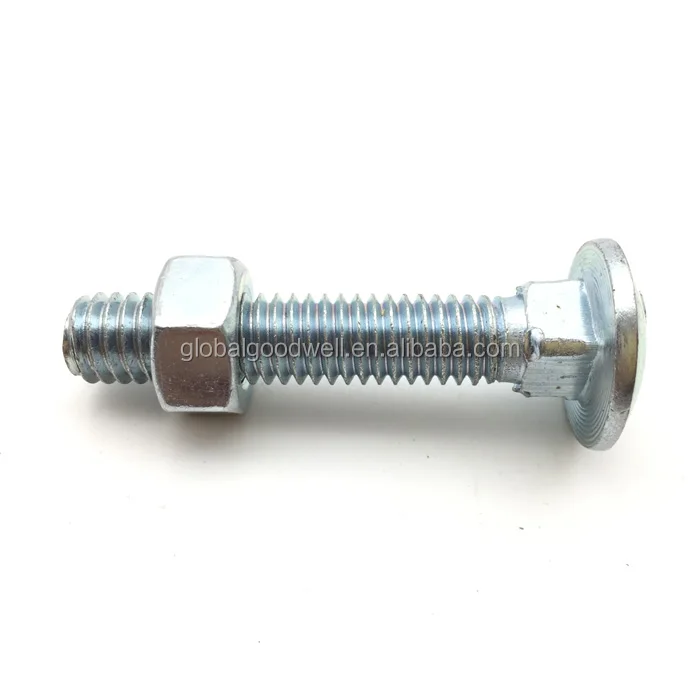

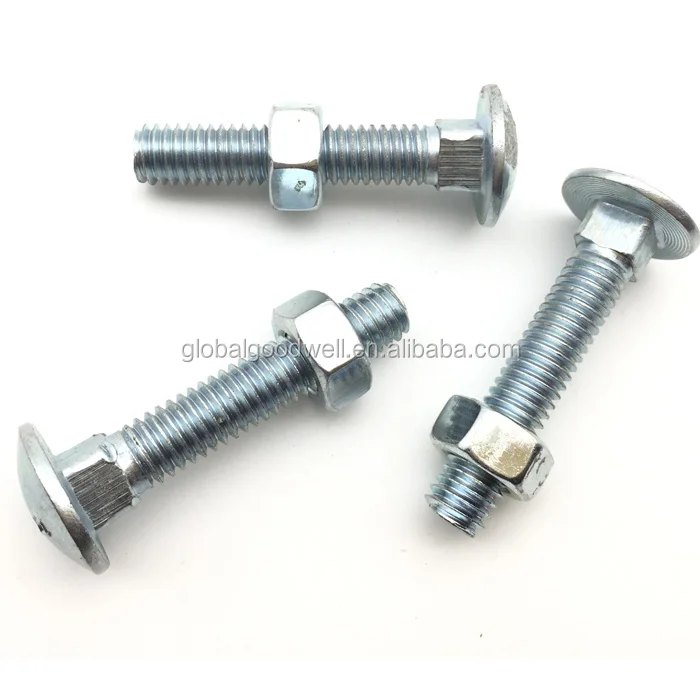

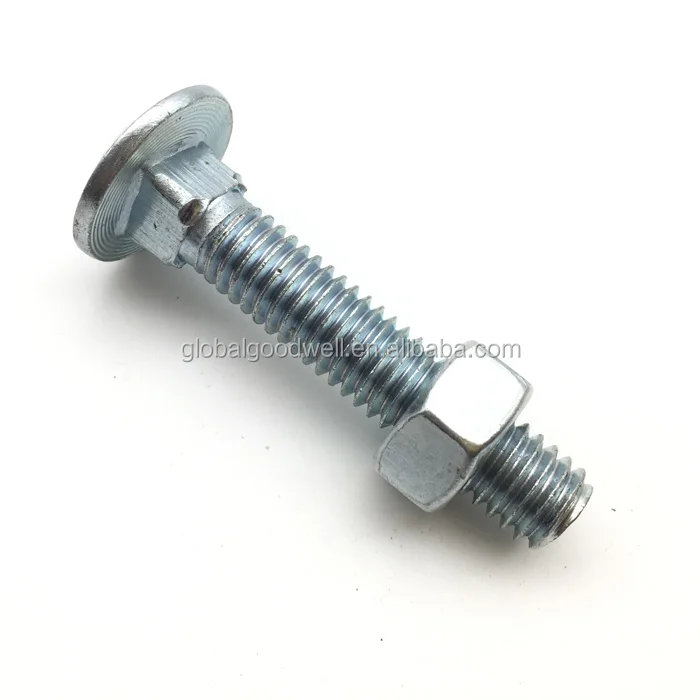

Bright Zinc plate Cup Head Coach Bolt/Carriage Bolt

Coach bolts are used for connecting metal to timber, or to join heavy timbers. These bolts were designed for use with square plate washers on ether side of a wooden beam. They are often used now however with bare timber as the coach bolt has developed.

Also known as carriage bolts, coach bolts are extremely heavy duty and have a square or hexagonal head which requires a wrench, spanner or pliers to turn.

WHAT FINISH DO I NEED?

Our range of coach bolts come in 3 different finishes. Bright Zinc Plated, Galvanised and Stainless Steel. Bright Zinc Plated (BZP) are generally used for indoor applications such as bolting 2 or 3 timber joists together. Galvanised coach bolts should used for outdoor applications such as fencing or building work exposed to the elements. All Galvanised coach bolts supplied by tradefixdirect.com are hot dipped which is a very robust coating high than Bright zinc plated and as such has a longer life span. Stainless Steel coach bolts should be used in areas of high polution, coastal regions and where aok timbers are being used.

COACH BOLTS USED FOR CONSTRUCTION

Coach bolts are pivotal for most large building projects. They are manufactured in many different sizes, from small bolts perfect for home DIY and local trade use to huge coach bolts for giant industrial construction projects.

Coach bolts are often used at critical points within a structure to join segments together. They're sturdy and are far superior to nails and many other bolt types.

Pls choose the sizes as below:

Product Code	Size	Grade	Finish	Qty/Box
620CB46Z	M6 x 20	CLASS 4.6	ZINC PLATED	200
625CB46Z	M6 x 25	CLASS 4.6	ZINC PLATED	200
630CB46Z	M6 x 30	CLASS 4.6	ZINC PLATED	200
640CB46Z	M6 x 40	CLASS 4.6	ZINC PLATED	200
645CB46Z	M6 x 45	CLASS 4.6	ZINC PLATED	200
650CB46Z	M6 x 50	CLASS 4.6	ZINC PLATED	200
660CB46Z	M6 x 60	CLASS 4.6	ZINC PLATED	150
665CB46Z	M6 x 65	CLASS 4.6	ZINC PLATED	150
670CB46Z	M6 x 70	CLASS 4.6	ZINC PLATED	150
675CB46Z	M6 x 75	CLASS 4.6	ZINC PLATED	150
680CB46Z	M6 x 80	CLASS 4.6	ZINC PLATED	150
690CB46Z	M6 x 90	CLASS 4.6	ZINC PLATED	150
6100CB46Z	M6 x 100	CLASS 4.6	ZINC PLATED	150
820CB46Z	M8 x 20	CLASS 4.6	ZINC PLATED	200
825CB46Z	M8 x 25	CLASS 4.6	ZINC PLATED	200

830CB46Z	M8 x 30	CLASS 4.6	ZINC PLATED	200
840CB46Z	M8 x 40	CLASS 4.6	ZINC PLATED	200
850CB46Z	M8 x 50	CLASS 4.6	ZINC PLATED	150
860CB46Z	M8 x 60	CLASS 4.6	ZINC PLATED	150
865CB46Z	M8 x 65	CLASS 4.6	ZINC PLATED	150
870CB46Z	M8 x 70	CLASS 4.6	ZINC PLATED	100
875CB46Z	M8 x 75	CLASS 4.6	ZINC PLATED	100
890CB46Z	M8 x 90	CLASS 4.6	ZINC PLATED	100
8100CB46Z	M8 x 100	CLASS 4.6	ZINC PLATED	100
8120CB46Z	M8 x 120	CLASS 4.6	ZINC PLATED	100
8130CB46Z	M8 x 130	CLASS 4.6	ZINC PLATED	100
8140CB46Z	M8 x 140	CLASS 4.6	ZINC PLATED	100
8150CB46Z	M8 x 150	CLASS 4.6	ZINC PLATED	100
1020CB46Z	M10 x 20	CLASS 4.6	ZINC PLATED	200
1025CB46Z	M10 x 25	CLASS 4.6	ZINC PLATED	200

1030CB46Z	M10 x 30	CLASS 4.6	ZINC PLATED	200
1040CB46Z	M10 x 40	CLASS 4.6	ZINC PLATED	150
1045CB46Z	M10 x 45	CLASS 4.6	ZINC PLATED	150
1050CB46Z	M10 x 50	CLASS 4.6	ZINC PLATED	100
1060CB46Z	M10 x 60	CLASS 4.6	ZINC PLATED	100
1065CB46Z	M10 x 65	CLASS 4.6	ZINC PLATED	100
1070CB46Z	M10 x 70	CLASS 4.6	ZINC PLATED	100
1075CB46Z	M10 x 75	CLASS 4.6	ZINC PLATED	100
1085CB46Z	M10 x 85	CLASS 4.6	ZINC PLATED	100
1090CB46Z	M10 x 90	CLASS 4.6	ZINC PLATED	50
10100CB46Z	M10 x 100	CLASS 4.6	ZINC PLATED	50
10110CB46Z	M10 x 110	CLASS 4.6	ZINC PLATED	50
10120CB46Z	M10 x 120	CLASS 4.6	ZINC PLATED	50
10130CB46Z	M10 x 130	CLASS 4.6	ZINC PLATED	50
10140CB46Z	M10 x 140	CLASS 4.6	ZINC PLATED	50

10150CB46Z	M10 x 150	CLASS 4.6	ZINC PLATED	50
10170CB46Z	M10 x 170	CLASS 4.6	ZINC PLATED	100
10180CB46Z	M10 x 180	CLASS 4.6	ZINC PLATED	100
10190CB46Z	M10 x 190	CLASS 4.6	ZINC PLATED	100
10200CB46Z	M10 x 200	CLASS 4.6	ZINC PLATED	100
1240CB46Z	M12 x 40	CLASS 4.6	ZINC PLATED	200
1250CB46Z	M12 x 50	CLASS 4.6	ZINC PLATED	150
1265CB46Z	M12 x 65	CLASS 4.6	ZINC PLATED	150
1270CB46Z	M12 x 70	CLASS 4.6	ZINC PLATED	150
1275CB46Z	M12 x 75	CLASS 4.6	ZINC PLATED	150
1285CB46Z	M12 x 85	CLASS 4.6	ZINC PLATED	100
1290CB46Z	M12 x 90	CLASS 4.6	ZINC PLATED	100
12100CB46Z	M12 x 100	CLASS 4.6	ZINC PLATED	100
12120CB46Z	M12 x 120	CLASS 4.6	ZINC PLATED	100
12130CB46Z	M12 x 130	CLASS 4.6	ZINC PLATED	75
