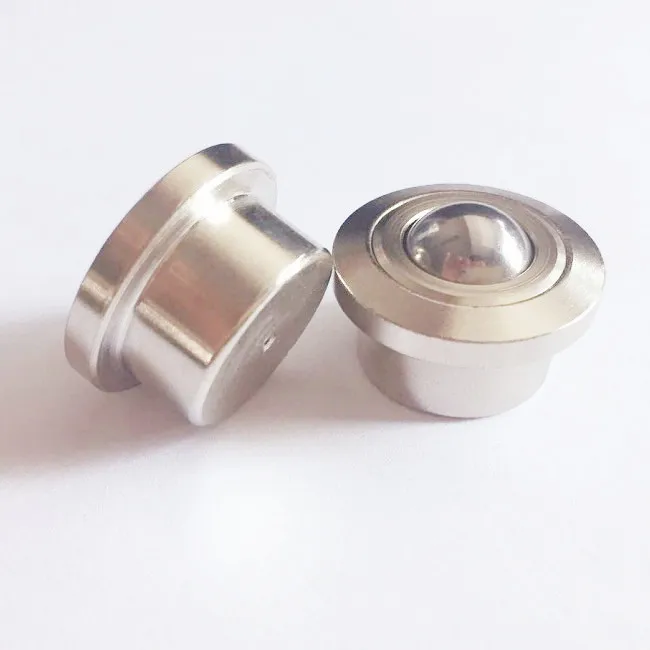

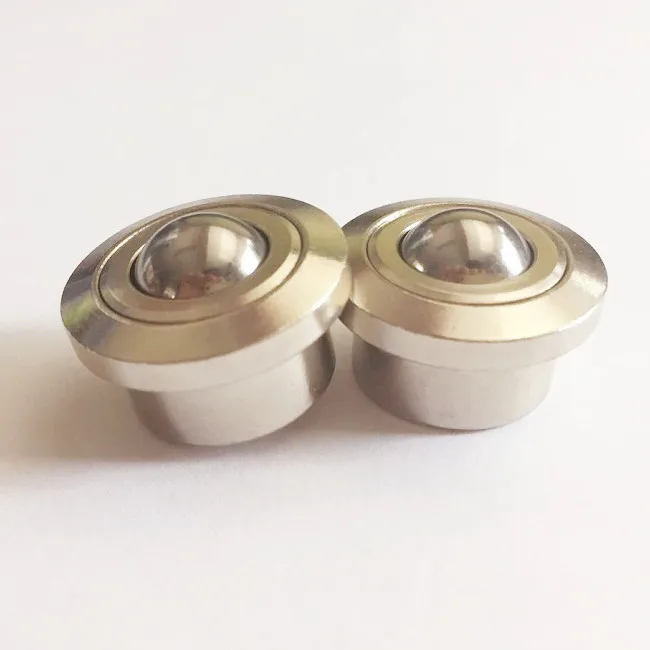

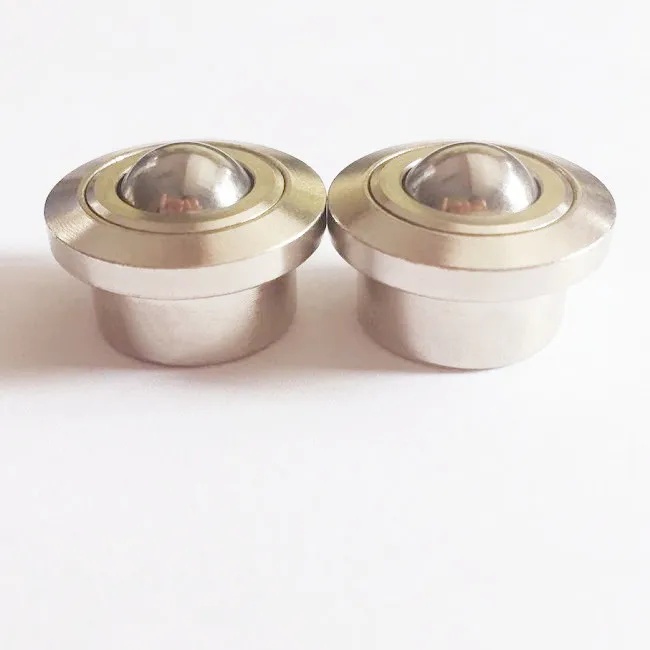

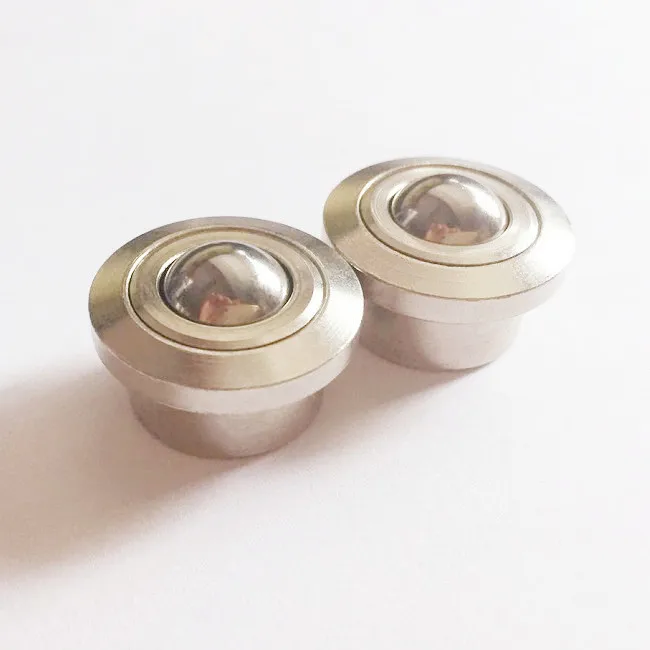

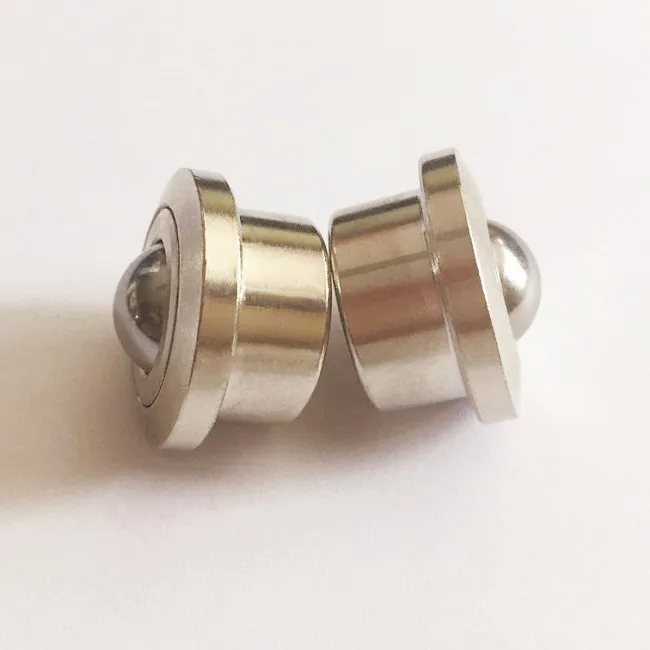

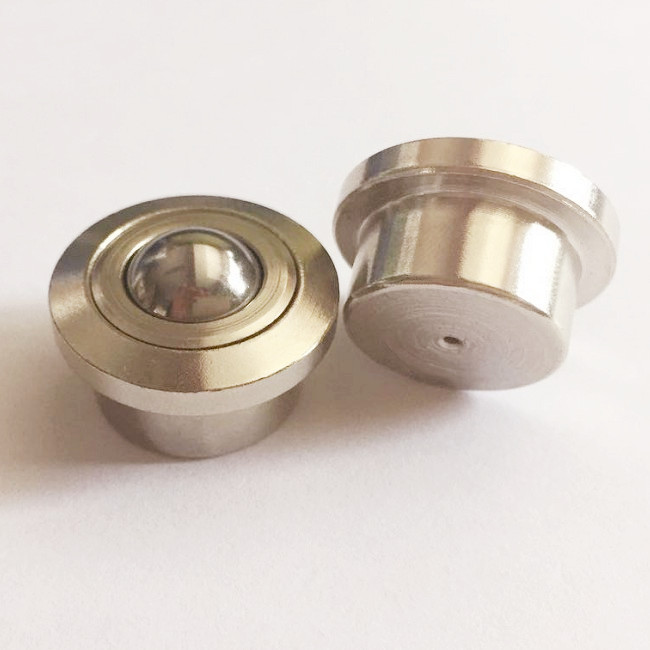

Roller Conveyor Ball Transfer Unit Caster Bearing SP-22 For Luggage Delivery

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $2.71 / >=30 pieces
Min. Order: 30 pieces

Click here to contact

Product details

Allowable load:	160kg;	Load weight:	140kg;
Warranty:	3 Months;	Application:	Transportation;
Local Service Location:	None;	Condition:	New;
Applicable Industries:	Food & Beverage Factory,Construction works ,Energy & Mining;	After Warranty Service:	No service;
Packaging Detail:	individual box+carton box+pallet;	Payment Terms:	L/C,D/P,T/T,Western Union,paypal;
Brand Name:	NTL;	Bore size:	22mm;
Place of Origin:	Zhejiang China;	Certification:	ISO9001:2008;
Supply Ability:	100000 Piece/Pieces per Month SP-22;	Product name:	Roller Conveyor Ball Transfer Unit Caster Bearing SP-22;
Usage:	used for packing machine;	Material:	Carbon steel/Bearing steel/Stainless steel;
Item:	SP-22;	Port:	shanghai;
Showroom Location:	None;	Feature:	Durable;

Roller Conveyor Ball Transfer Unit Caster Bearing SP-22 For Luggage Delivery

Product Description

Roller Conveyor Ball Transfer Unit Caster Bearing SP-22 For Luggage Delivery

Description:

Ball transfers are utilized in material handling due to their ability to move in all directions. This feature makes them ideal for assembly lines that require products to make turns in the course of handling. They are also especially well suited for use at work stations, where they facilitate the rotation of heavy material in any direction. This eliminates the need for workers to lift or slide products to complete assembly work, providing equal access to all sides.

Application:

Used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.

Drawing:

Data:

Model No.	Ball size	Loading capacity Maximum/Breaking
SP-8	8MM	8KG/15KG
SP-12	12MM	25KG/30KG
SP-15	15.875MM	40KG/50KG
SP-22	22.23MM	140KG/160KG
SP-25	25.4MM	180KG/200KG
SP-30	30.16MM	250KG/300KG
SP-45	45MM	450KG/500KG
SP-60	60MM	800KG/1200KG
SP-76	76MM	2000KG/2500KG
SP-90	90MM	3000KG/3500KG

SP-8FL	8MM	8KG/15KG
SP-15FL	15.875MM	40KG/45KG
SP-22FL	22.23MM	140KG/160KG
