API 6A Hydraulic FCL gate valve

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $6500.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Port:	shanghai seaport;	Working Pressure:	2000PSI to 20000PSI;
Temperature of Media:	High Temperature,Low Temperature,Medium Temperature,Normal Temperature;	Type:	BALL VALVES,Gate Valves;
Power:	Manual;	Supply Ability:	1000 Piece/Pieces per Month;

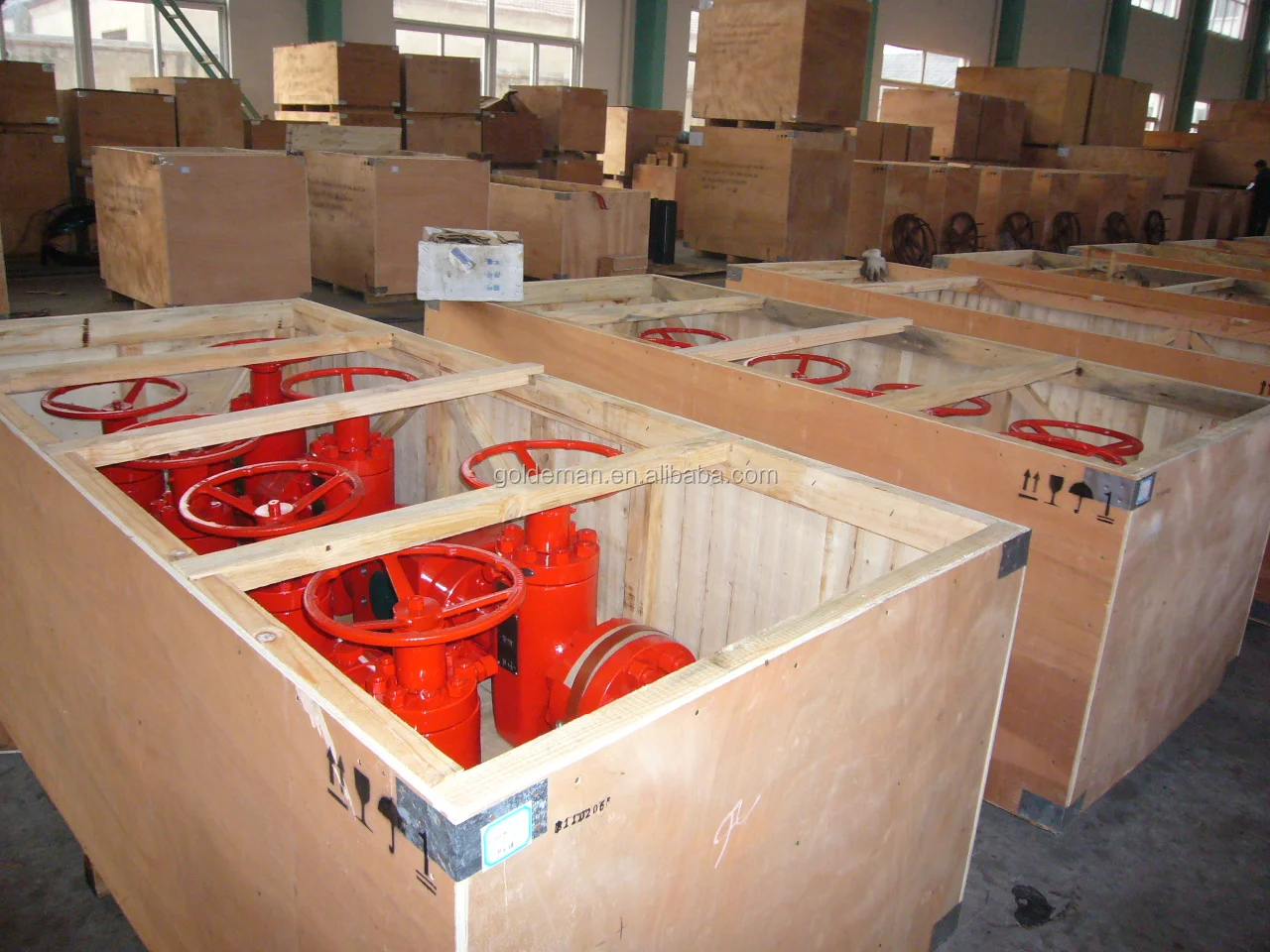

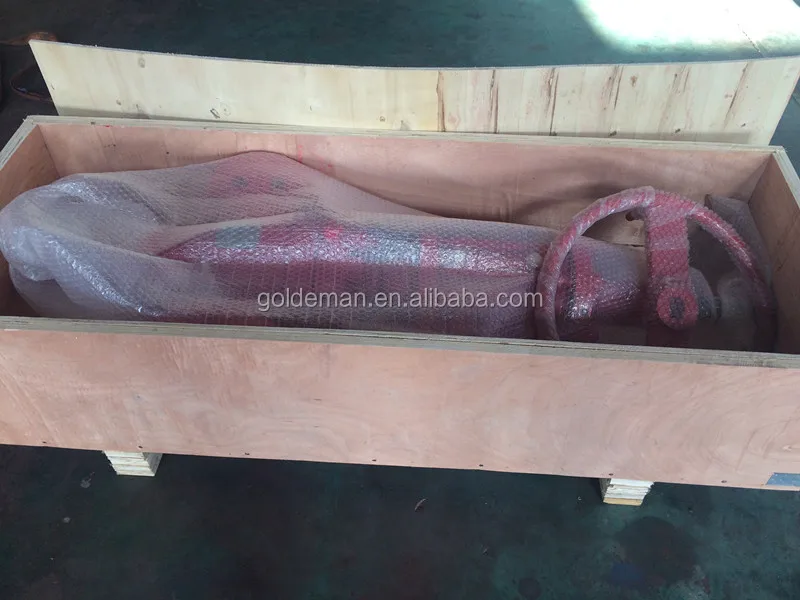

Packaging Detail:	wooden cases;	Port Size:	various size;
Color:	red, orange;	Place of Origin:	Shandong China;
Nominal Bore:	1.13/16" to 9" (46mm to 230mm);	Material Class:	AA,BB,CC,DD,EE,FF,HH;
Model Number:	Specification level: PSL1-4;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Specification level:	PSL1-4;	Working Temperature:	below 46 degree to 121 degree(Class LU);
Structure:	Diaphragm;	Working Medium:	oil,natural gas,mud and gas containing H2S,CO2;
gate valves for API 6A:	oil drilling equipments;	Application:	oilfield;
Performance Requirement:	PR1-2;	Brand Name:	Goldenman;
Standard or Nonstandard:	Standard;	Media:	Oil;

Product Description

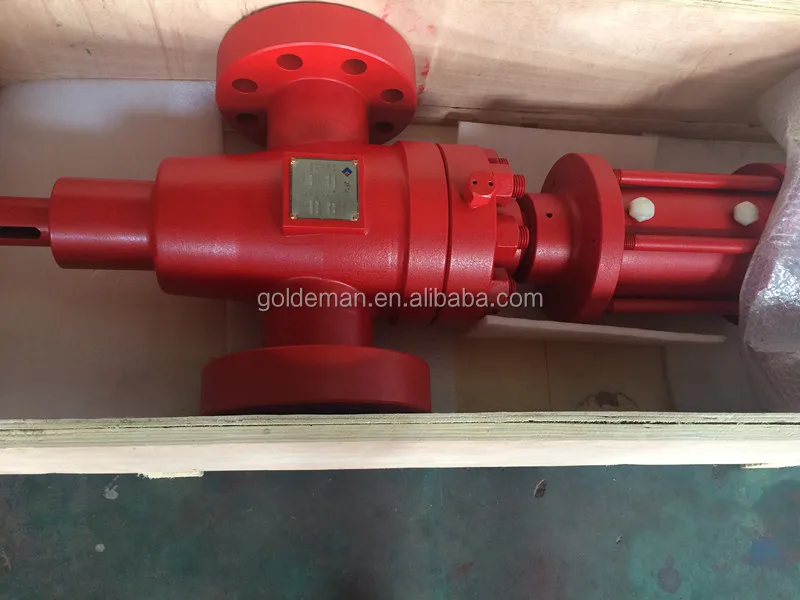

API 6A Hydraulic FCL gate valve

1)Working Pressure: 2000PSI~20000PSI

2)Bore: 1.13/16"~9" (46mm~230mm)

3)Specification level: PSL1-4

4)Performance Requirement: PR1-2

• Full bore design eliminateefficiently pressure drop and vortex, eliminates washing by solids in fluid.• Special seal type lower switch torque.• Mental-to-mental seal is used between bonnet and body, gate and seat rising.• Mental-to-mental seal between gate and seat, and the surface is weld overly with hard alloy, which has feature of corrosion resistance and washing resistance.• Retainer plate fix seat ring insuring good stability.• The stem designed with back seal, can replace stem sealing under pressure.• One side of bonnet is designed with sealant injection in order to supply sealant and improve seal and lubrication performance of gate and seat.• Can complete with different pneumatic (hydraulic) actuator upon user’s requirements.

• Working Pressure: 2000PSI~20000PSI• Nominal Bore: 1.13/16"~9" (46mm~230mm)• Working Medium: oil,natural gas,mud and gas containing H2S,CO2• Working Temperature: -46°C~121°C(Class LU)• Material Class: AA,BB,CC,DD,EE,FF,HH• Specification level: PSL1-4• Performance
