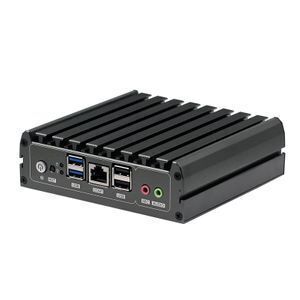

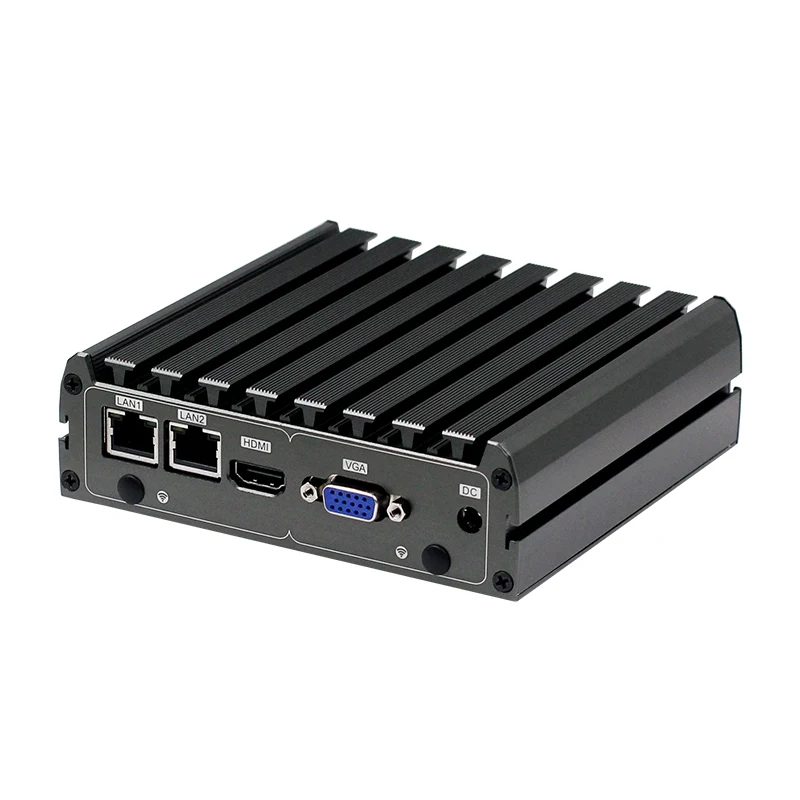

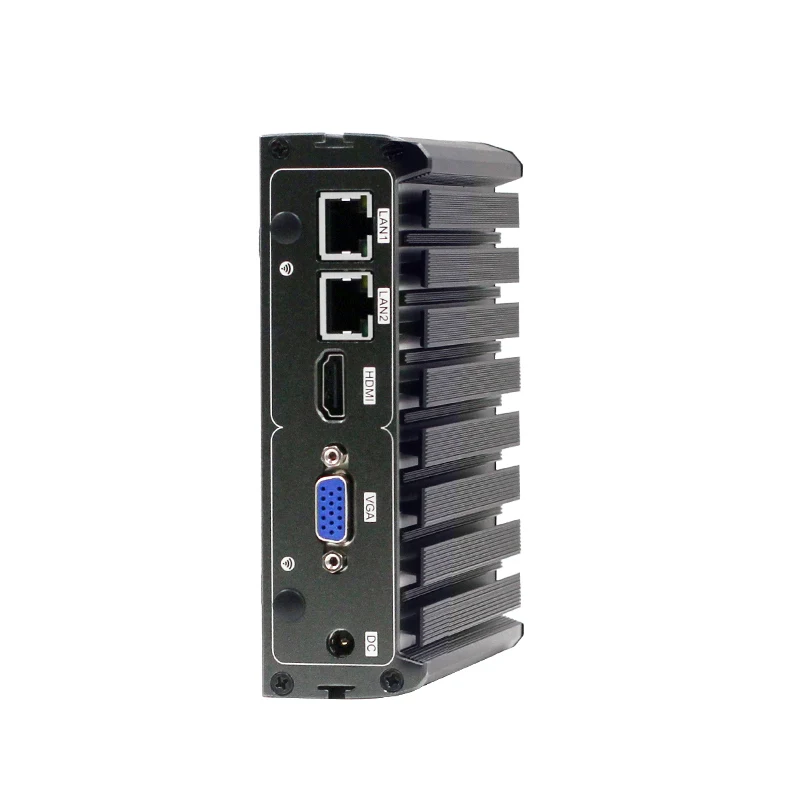

Mini PC Core J3455 N4200 processor 2 LAN pfsense Nano Fanless Mini PC

Click here to contact

Product details

Application:	Server;	Type:	Horizontal;
Material:	Aluminum Alloy;	Selling Units:	Single item;
lAN:	2*Intel I211ATHigh-performance Gigabit LAN;	Ram:	Max support 8GB DDR3L Ram;
Products Status:	Stock;	Style:	With Fan;
Single gross weight:	2 KG;	Single package size:	21X22X7 cm;

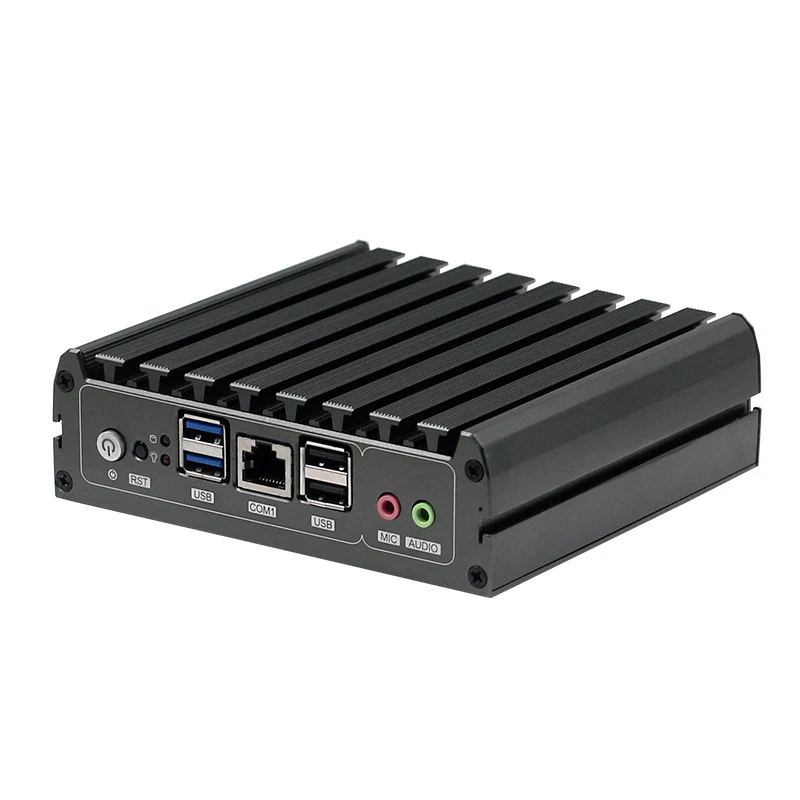

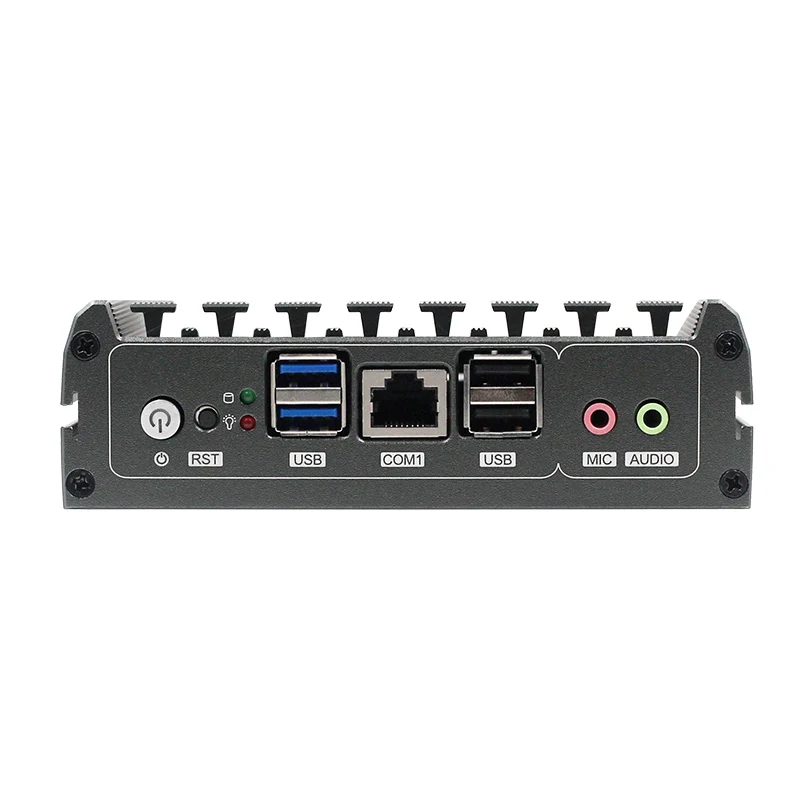

USB:	2USB2.0 2USB3.0;	Front Ports:	Audio,USB,Lan/vga/Com Port/switch button;
Com:	1*RJ45 Port RS-232;	Brand Name:	Zunsia;
Place of Origin:	China;	Form Factor:	Nano;
CPU:	Apollo lake serial Processor;	Model:	nbox-j4;

CPU	CPU	Apollo lake serial Processor
	CPU package	BGA
	Chipset	Apollo lake single chip set
	BIOS	EFI BIOS
Ram	Technology Architecture	Single channel DDR3L 1066/1333/1600/1866MHz
	Capacity	Max support 8GB DDR3L Ram
	Socket	DDR3 SODIMM 204 Socket
Video	Graphics controller	Intel HD Graphics
	VGA	VGA max resolution support 2048x1536
	HDMI	max resolution support3840*2160
	Dual display	VGA+HDMI Synchronous or asynchronous

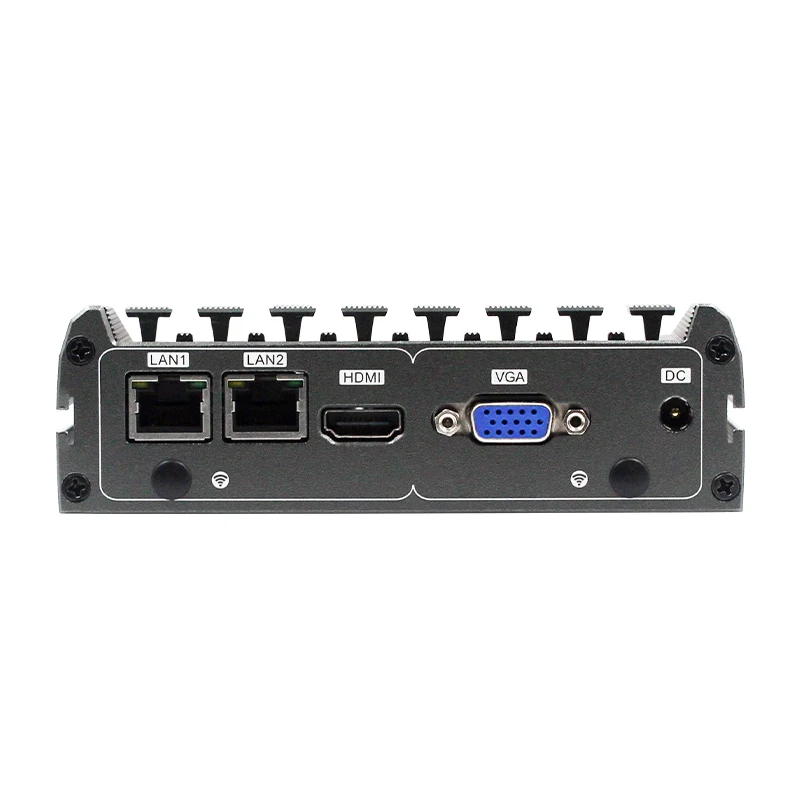

I/O back panel	Ports	1VGA 1HDMI 2USB2.0 2USB3.0 2LAN 1 quick start button with indicator light 1* restart button 1Line_out 1MIC 1* power indicator 1* hard disk indicator
Internet	Controller	2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port
Input/output interface	USB	2USB2.0 2USB3.0 Max support+5V/1A
	Com	1*RJ45 Port RS-232
	Audio	1LINE OUT 1MIC
Expansion bus	Mini-PCle	1* Mini-PCIe socket ,support PCIE and USB signal equipment
Storage	SATA	1*standard SATAII Port, Maximum transfer rate 3Gb/s
	M-SATA	1*M-SATA Socket, Support SanDisk protocol, maximum rate 3gb/s
	EMMC	Support32/64/128G(optional)
POWER SUPPLY	Power Type	Wide Voltage 12-19V
WORKING ENVIRONMENT	Working temperature	-20℃ ~ +60℃
	Storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90%(non-condensing)
	Storage humidity	0% ~ 90%(non-condensing)
