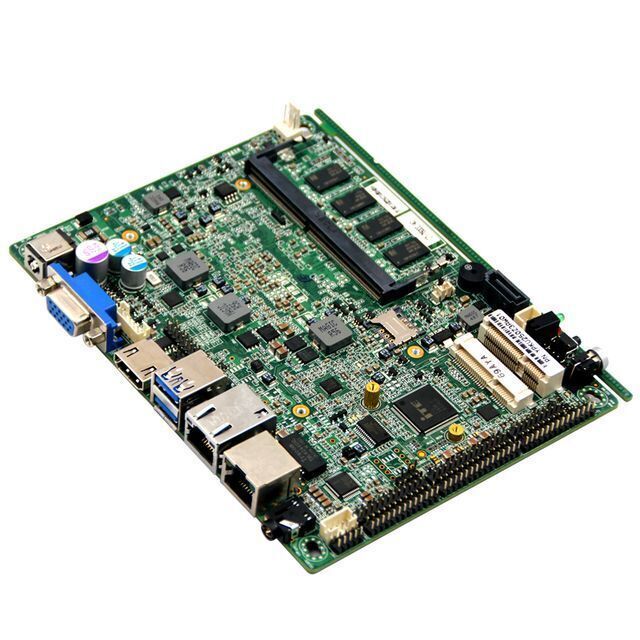

3.5Inch Integrated InTel 7th Gen Mobile Kaby Lake-U I5- 7200U Industrial Mainboard with DC 12V Power Supply

Supplier: Shenzhen Piesia Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Amy piesia
Price: $149.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Products Status:	New;	Certification:	FCC,ce,RoHS;
CPU:	Intel Core seventh generation Kaby lake-U Soc i3/i5/i7 processor;	Technology framework:	Single channel DDR4 2133Mhz;;
Packaging Detail:	1 * Drive CD-ROM 1SATA 1SATA-P line 1*COM line;	CPU Type:	Intel;
Package:	Yes;	Form Factor:	Z-3.5;
Brand Name:	PIESIA;	Graphics Card Type:	Integrated;
Supply Ability:	1000 Piece/Pieces per Week;	Slot:	Can add 1 slot, maximum expansion of 16GB memory;
Video:	Ruiyu HD ALC662 Audio Decoding;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Memory channel:	Single;	Memory Type:	DDR4,DDR4;
Cooler:	Aluminum with fan radiator;	Chipset:	Intel Kaby lake-U SOC,intel;
Maximum Ram Capacity:	8GB;	With CPU:	Yes;
Application:	LAPTOP;	Capacity:	Integrated 2GB/4GB/8G DDR4;
Chipset Manufacturer:	Intel;	Hard Drive Interface:	SATA,M-SATA;
Graphic controller:	Intel HD Graphics 620(I3-7100U display card type is related to CPU;	Port:	Shenzhen;
FSB / HT:	800/1066/1333 MHz;	GPIO:	-bit, providing routines, freely defined input / output 3.3V;
network:	1 Intel I211AT and 1 Intel I219V Gigabit network card;	Socket Type:	Other;
Item Condition:	New;	Place of Origin:	Guangdong China;
Ports:	Ethernet,SATA,USB 2.0,USB 3.0,VGA,wifi,bluetooth;

3.5Inch Integrated InTel 7th Gen Mobile Kaby Lake-U I5- 7200U Industrial Mainboard with DC 12V Power Supply

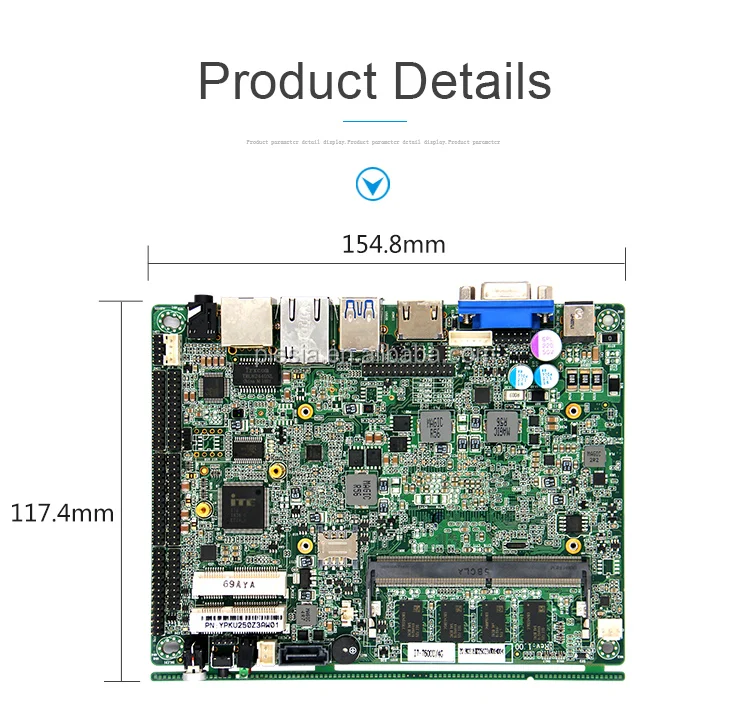

Product Description

Processor	CPU	Intel Core seventh generation Kaby lake-U Soc i3/i5/i7 processor
	CPU Package	BGA
	Chipset	Intel Kaby lake-U SOC
	BIOS	EFI BIOS

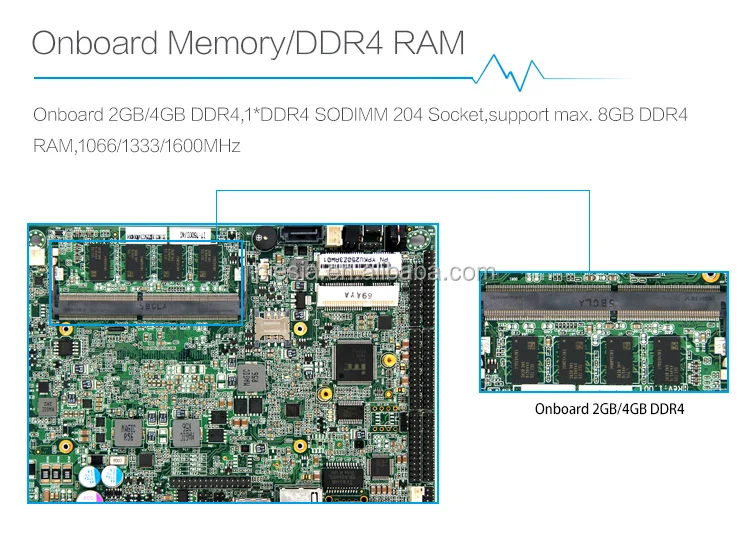

RAM	Technology framework	Single channel DDR4 2133Mhz;;
	Capacity	Integrated 2GB/4GB/8G DDR4
	Slot	Can add 1 slot, maximum expansion of 16GB memory
Video	Graphic controller	Intel HD Graphics 620(I3-7100U display card type is related to CPU
	Dual LVDS EDP	Support for dual channel 24 bit output, maximum resolution 1920 x 1200 EDP maximum resolution 4096 / 2304 (only one of two)
	VGA	VGA supports maximum Resolution 2048x1536
	HDMI	Maximum Resolution support HDMI 1.4U 4096U 2304HZ support 4K display
	Double display support	LVDS VGA LVDS HDMI VGA synchronous or Asynchronous display
	Three display	Support for LVDS VGA HDMI three-screen synchronous or asynchronous display

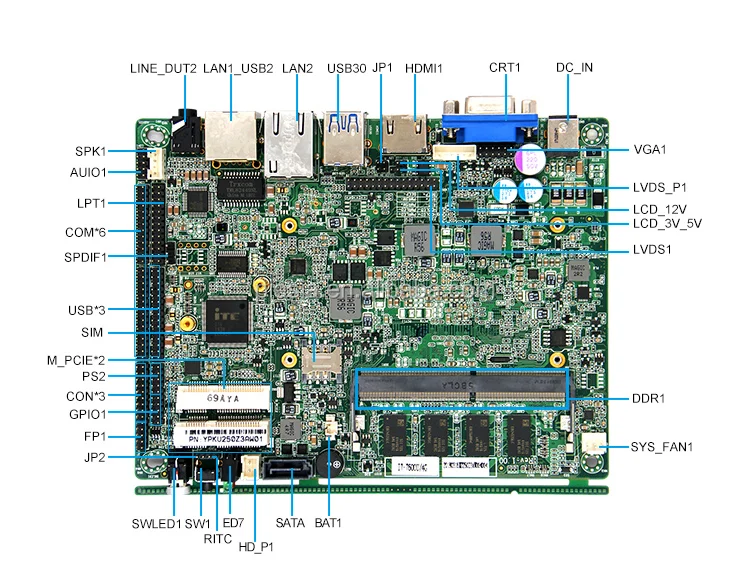

I / O backplane	port	1VGA,1HDMI,1LAN,2USB3.0/1*MIC-OUT/LINE-OUT
network	controller	1 Intel I211AT and 1 Intel I219V Gigabit network card (when I / O interface is 4 USB, only 1 Intel I211AT card)
Video	controller	Ruiyu HD ALC662 Audio Decoding (left and right microphone)
Super I/O	controller	ITE8786E
Hardware monitoring	Watchdog timer	0-255 seconds, provides watchdog routines
	Cooler	Aluminum with fan radiator (support automatic and manual fan speed adjustment)
Input / output interface	USB	2*USB3.0 is compatible with USB2.0 / 1.1 / 6U USB 2.0, maximum support for 5V/1.5A
	Com ports	5 RS-232, 1 RS422/485 optional RS485 supports automatic flow control
	PS/2	1 * PS / 2 Pin Interface
	touch screen	Support for touch screen 4wire 5wire 8 wire- optional
	GPIO	8-bit, providing routines, freely defined input / output 3.3V @ 24mA level
Extended bus	Mini-PCle	2 Mini-PCIe slots supporting PCIe and USB devices
memory	SATA	1 standard SATAIII interface, maximum transmission rate 6Gb/s
	Onboard SSD	SSD 16 / 32 / 64 / 128G (optional)
	M-SATA	1 Mini-PCIe M-SATA Scoket. supports SANDISK protocol, maximum transfer rate 6gb/s
Power Supply	Power supply type	DC 12V power supply
	Power consumption	35W
