Intel Core 4th Haswell-U Single Chip CPU mini nano industrial mainboard 2*DDR3 SODIMM 204 Socket

Supplier: Shenzhen Piesia Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Amy piesia
Price: $132.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Memory Type:	DDR3;	Application:	Server;
Power Type:	Single input DC power,DC12-19V,+/-5%;	Products Status:	Stock;
FSB / HT:	800/1066/1333 MHz;	Chipset:	Intel core 5th Broadwell i3/i5/i7;
CPU Type:	Intel;	Selling Units:	Single item;
CPU:	Intel Core 4th Broadwell-U Soc i3/i5/i7 processor;	Serial ports:	1*RS-232 or TTL electrical level;
Single gross weight:	1 KG;	Brand Name:	PIESIA;
Mini-PCle:	1*Mini-PCIe socket,Support PCIe and USB devices;	Chipset:	Intel Broadwell-U series SOC;
Package Type:	1I/O back panel 1CD drivers 1SATA 1SATA-P cable;	Form Factor:	nano;
Hard Drive Interface:	SATA;	Maximum Ram Capacity:	16GB;
Chipset Manufacturer:	Intel;	USB:	4*USB3.0;
Technology framework:	Dual Channel DDR3L 1066/1333/1600MHz;	Single package size:	22X21X7 cm;
Graphics Card Type:	Integrated;	Socket Type:	Other;
Place of Origin:	Guangdong China;	Ports:	Ethernet,SATA,USB 2.0,USB 3.0,VGA,WiFi,Bluetooth;

Intel Core 4th Haswell-U Single Chip CPU mini nano industrial mainboard 2*DDR3 SODIMM 204 Socket

Product Description

Advantages:

Integrated Intel Core™ 4^thHaswell-U Single Chip CPU;

2*DDR3 SODIMM 204 Socket;

Provide 1*Mini DP,1*HDMI all support 4K display output;

4*USB3.0 ,2*USB2.0;

1*NGFF high speed data transfer interface(Support 42*22mm);

Support Power on automatic Starting up,jumper line selection;

Single input DC power,DC12-19V Power Supply;

Size :100*100mm

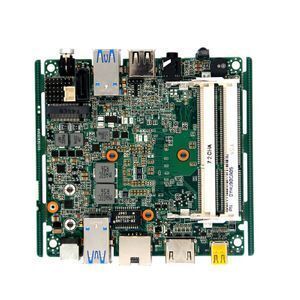

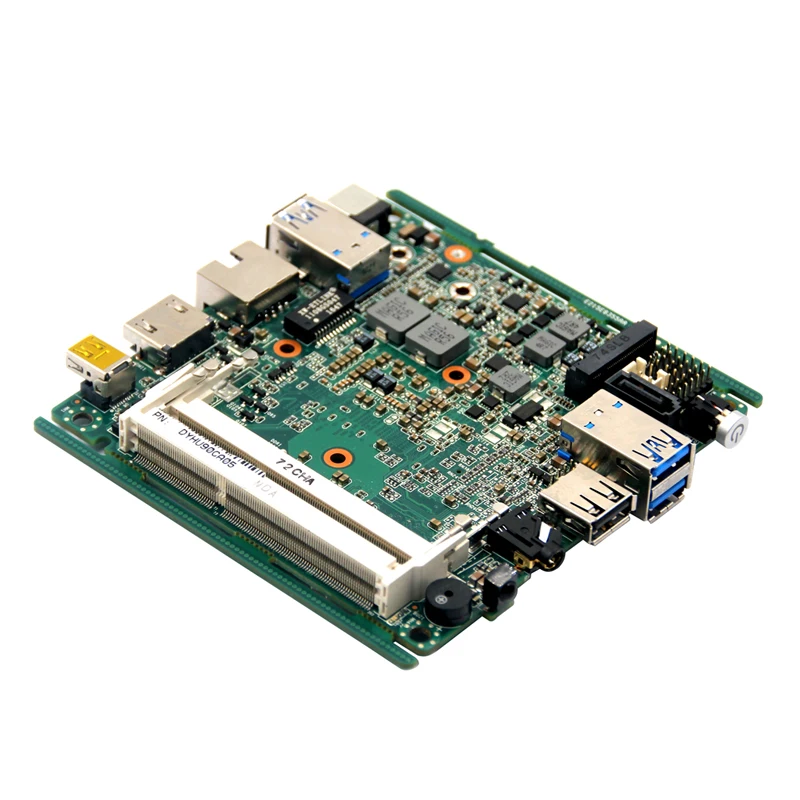

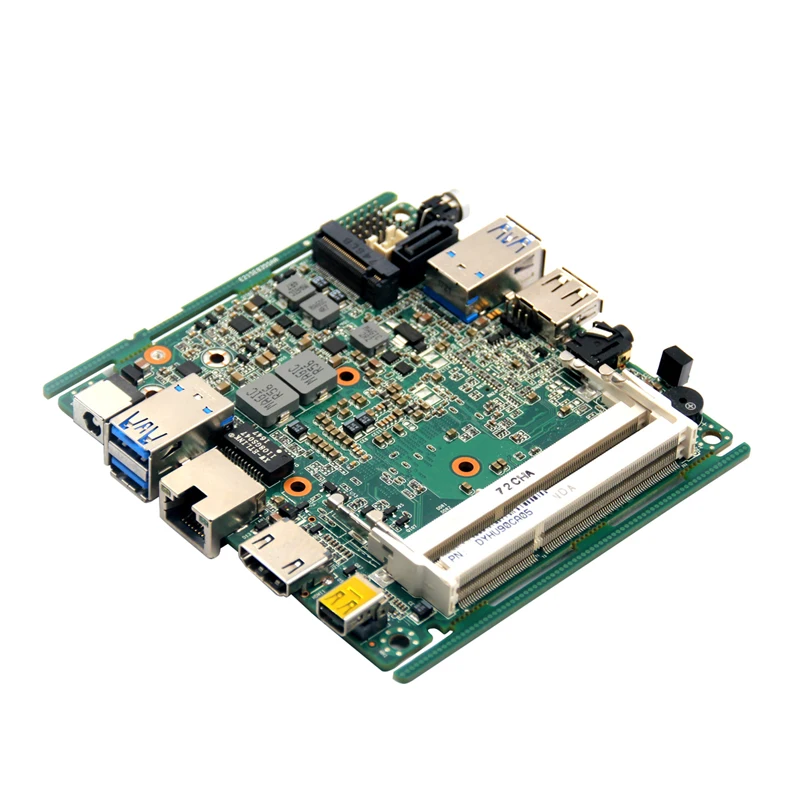

Item pictures:

Specification:

Processor	CPU	Intel® Core™ 4^thBroadwell-U Soc i3/i5/i7 processor
	CPU Package	BGA
	Chipset	Intel® Broadwell-U series SOC
	BIOS	EFI BIOS
RAM	Technology framework	Dual Channel DDR3L 1066/1333/1600MHz
	RAM socket	2*DDR3 SODIMM 204 Socket
Video	Graphic controller	Intel HD Graphics 5500(I3-5005U’s graphics);Graphics model is connected with CPU
	Mini-DP	Mini DP Resolution maximum support 3200*2000@60HZ
	HD(M)I	esolution maximum support(HD(M)I1.4)3200*2000@60HZ
	Double display support	HDMI+Mini DP Synchronous or asynchronous display

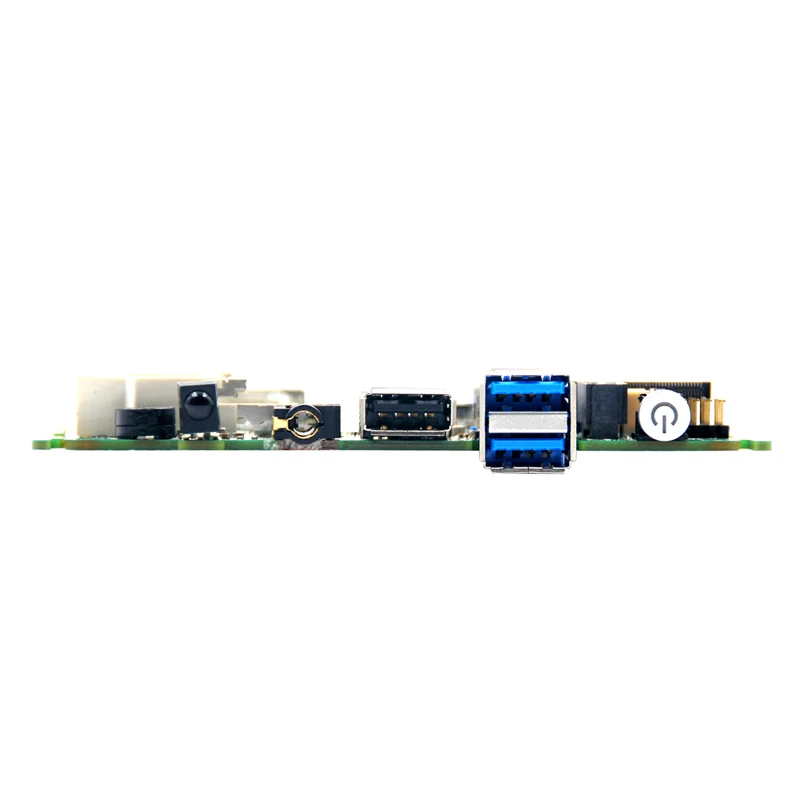

Rear Panel I/O	Ports	1Mini DP,1HDMI,1LAN,4USB3.0/,1USB2.0,1MIC-OUT/LINE-OUT,1Switch button(with indicator light),1IR Port
Network	Controller	1*RTL8111E-V Gigabit Ethernet,RJ45 Ports
Audio	Controller	Realtek HD ALC662 chipset (line-in,line-out,Mic)
Super I/O	Controller	IT8163E
Hardware monitor	Watchdog & Timer	0~255 timer (Watchdog code optional)
	Cooler	Aluminum alloy heat sink with fan
Input/Output Interface	USB	4USB3.0 (compatible USB1.1/2.0) Max. Current supported +5V/1A,3USB2.0
	Serial ports	1*RS-232 or TTL electrical level(Optional)
	PS/2	NO
	IR	1*IR Port
	LPC	1*LPC pin expansion interface
Extended bus	Mini-PCle	1*Mini-PCIe socket,Support PCIe and USB devices
Storage	SATA	1*Standard SATAIII ports,Maximum transmission rate to 6gb/s
	NGFF_SSD	1NGFF_SSD interfaces(Support 4222mm)
Power Supply	Power Type	Single input DC power,DC12-19V,+/-5%
	Power Consumption	35W
Working environment	Working Temperature	-20°C~+60°C(-4°F~140°F)
	Storage Temperature	-40°C~+85°C(-40°F~185°F)
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~90% (non-condensing)
Dimensions	Size	100*100mm
	Weight	0.5KG
Certificates		CE,RoHS,FCC
