3.5inch PICO ITX touch panel pc motherboard with D525 + ICH8 POS terminal mainboard with dual 1000M LAN

Product details
CPU:Intel Atom D525 CPU(45NM,1.8GHz,1M L2 cache);Place of Origin:Guangdong China;
Memory:onboard DDR3 2GB(SO-DIMM socket max 4GB optional);Operating System:Win2000/XP, Linux, win CE/XPe;
Brand Name:Piesia;L2 Cache:1MB, CPU integrated;
Packaging Detail:Carton Box(Accessory:1*COM cable;1*CD driver;1*SATA cable;1*SATA power cable);Payment Terms:L/C,T/T,Western Union,Paypal;
Storage:mini-SATA;SATA;Chipset:Intel D525 + Intel ICH8M;
Port:shenzhen;Power supply:12V-DC;ATX 4PIN;
COM:6*COM expansion headers;Type:Embedded Industrial Motherboard;
Products Status:Stock;Supply Ability:5000 Piece/Pieces per Month;
Network:2*1000M RJ45 port;LVDS:single channel18bit LVDS connector;

3.5inch PICO ITX touch panel pc motherboard with D525 + ICH8 POS terminal mainboard







                          Specification & description


Main features:

Suitable for

AD Player;ultrathin AIO machine; Monitoring System; HTPC;VOD; IPC; POS etc.

Form Factor

Mini ITX  115mm×155mm

Chipset Manufacturer

Intel

CPU

Intel® Atom D525 CPU(45NM,1.8GHz,1M L2 cache)

FSB

800MHz

Chipset

Intel® Atom D525 processor + ICH8 chipset

L2 Cache

1MB, CPU integrated

RAM

1*onboard 1333 DDR3 2GB memory.(SO-DIMM socket maximum 4GB optional)

Sound

Onboard HD ALC662 chipset,provide 6 channels output,onboard power amplifier.

Network

2*Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting

LVDS

Onboard 18bit single channel LVDS connector

USB

6*USB 2.0/1.1

Expansion Sockets

1*Mini SATA socket; 1*Mini-PCIE socket;1*SIM card slot for 3G;2*SATA

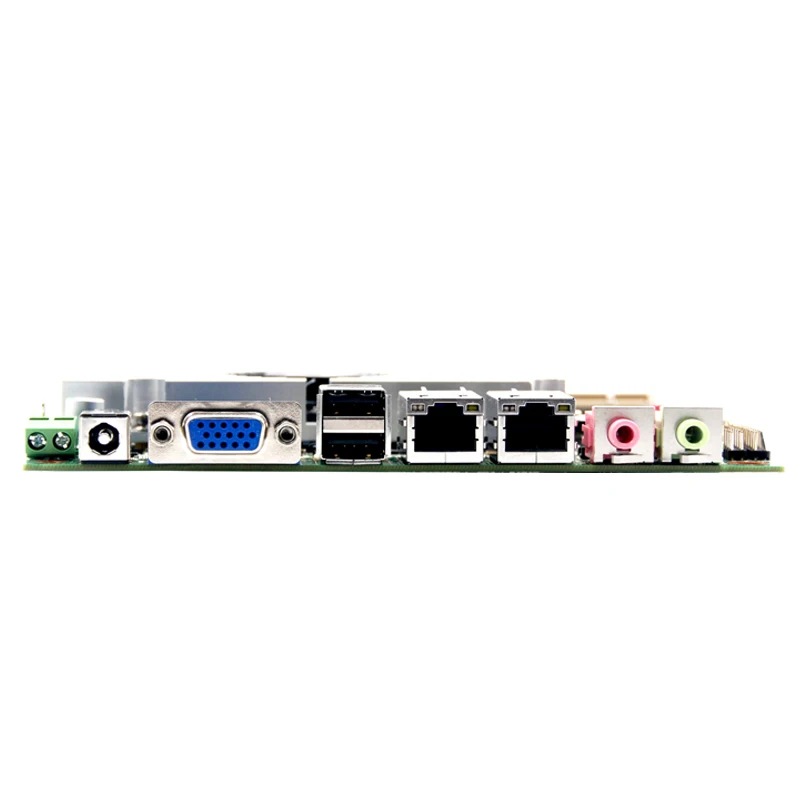

rear panel I/O

1*12V -DC power supply



1*VGA port



2*USB 2.0/1.1 port



2*1000M RJ45 port



2*Audio I/O interfaces( Line in,Line out,Mic)

Internal I/O

1*30pin LVDS



6*COM expansion headers (support RS232/488/485)



1*GPIO expansion header(8 group)



1*VGA expamsion header



1*LPT expansion header



1*Audio onboard power amplifier

Power Interface

12V-DC/ATX 4PIN

Power Consumption

17W

Working Temperature

-20°C~70°C (-4°F~158°F)

Storage Temperature

-20°C~80°C (-4°F~176° )

Operating Humidity

 10%~90% (non-condensing)

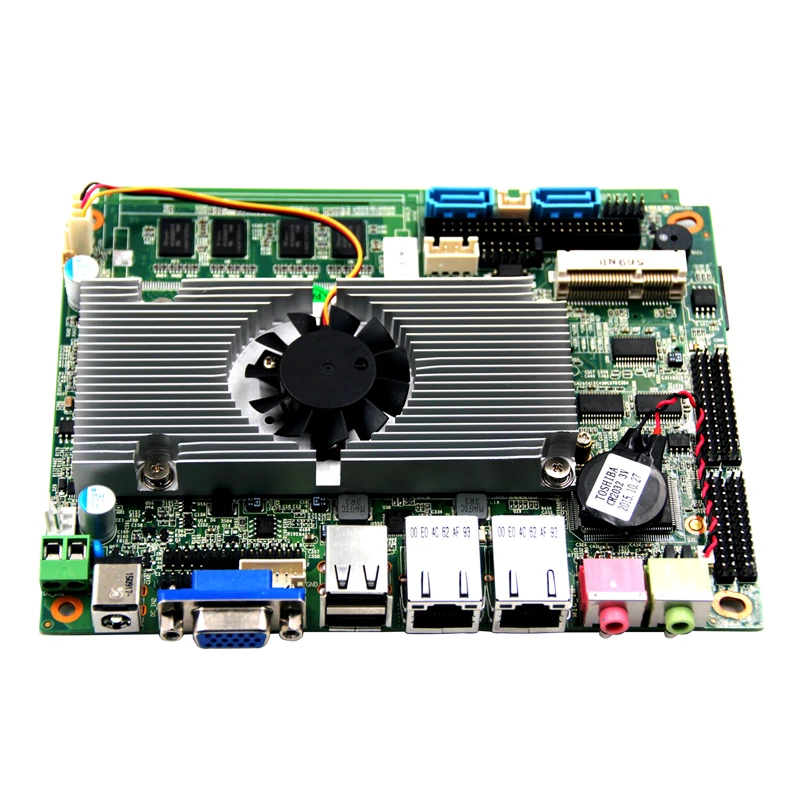

Detail pictures :







Advantage:



1.Embedded high performance industrial motherboard. (1.8CM ultrathin)

2.All tantalum capacitor design,onboard DDR3 2GB memory,maximum up to 6GB.

3.Support 3G SIM card,support Mini SATA ,more efficiency.

4.Support power booting/plug and play,Timer-power-on.

5.Support 18bit single ch LVDS output.VGA and LVDS asynchronous with show supported.

6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.

7.6*COM expansion header design.

8.Certificate:CE,FCC,RoHS





Certification:







Company information:





Package:



>packing details: Carton box (Accessory: 1 *COM cable: 1*CD driver 1*SATA cable 1*SATA power cable)
>delivery details:Within 3 days (sample order) 7-25 days in a bulk
Delivery ways:Small quantity by air highly demand by se



          OEM Service Offered/Design Service Offered/Buyer Label Offered
