Application2: | industrial filtration equipment; | width: | 270mm; |
Delivery Detail: | 5-10days; | Supply Ability: | 3000 Roll/Rolls per Day; |
Application3: | lab testing; | certificate: | SGS; |
Model Number: | PVDF; | Place of Origin: | Zhejiang China; |
Shape: | roll; | Type: | Hydrophilic and Hydrophobic; |
Application4: | disc membrane; | Packaging Detail: | box and then put into cartoon; |
Application1: | Gas filter; | Payment Terms: | T/T,Western Union; |
Port: | Shanghai or Ningbo; | Material: | PVDF; |
color: | white; | Brand Name: | Tianshan filter; |

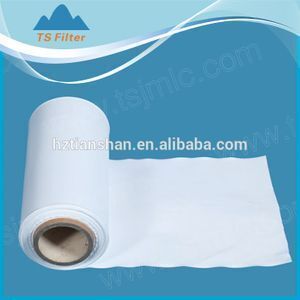

Professional hydrophobic pvdf membrane for pharmaceuticals / biological
Membrane | Quality hydrophobic pvdf membrane filter | ||
Support | PP | ||
Color | White | ||
Filter Surface | Plain | ||
Thickness, μm | 150~250 | ||
Diameter | Disc: Φ13, Φ25, Φ47, Φ50, Φ60, Φ90, Φ100, Φ106, Φ142, Φ150, Φ200, Φ250, Φ293, Φ300 Roll: 270 mm, 300 mm | ||
Pore Size, μm | 0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10 | ||
Maximum Operating Pressure | Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C | ||
Flow Rate | Liquid | Air | |
0.22 μm | ≥ 6 mL/min/cm2 at 1 bar | ≥ 3.5 L/min/cm2 at 1 bar | |
0.45 μm | ≥ 30 mL/min/cm2 at 1 bar | ≥ 7 L/min/cm2 at 1 bar | |
Integrity Test-60% IPA/water bubble point at 23 °C | |||
0.22 μm | ≥ 1000 mbar | ||
0.45 μm | ≥ 600 mbar | ||
Bacterial Retention | |||
Passed the bacterial challenge testing using Brevundimonas diminuta(ATCC19146)(0.22 μm) / Serratia marcescens (ATCC14041)(0.45 μm) at a minimum challenge concentration of 1 x 107 CFU/cm2. | |||
Non-Fiber Releasing | |||
Meets the criteria for a “non-fiber releasing” filter as defined in 21 CFR 210.3 (b) (6). | |||
Sterilization | |||
By autoclave at 123°C or EO | |||
Bacterial Endotoxins | |||
< 0.5 EU/ml as determined by the LAL test |

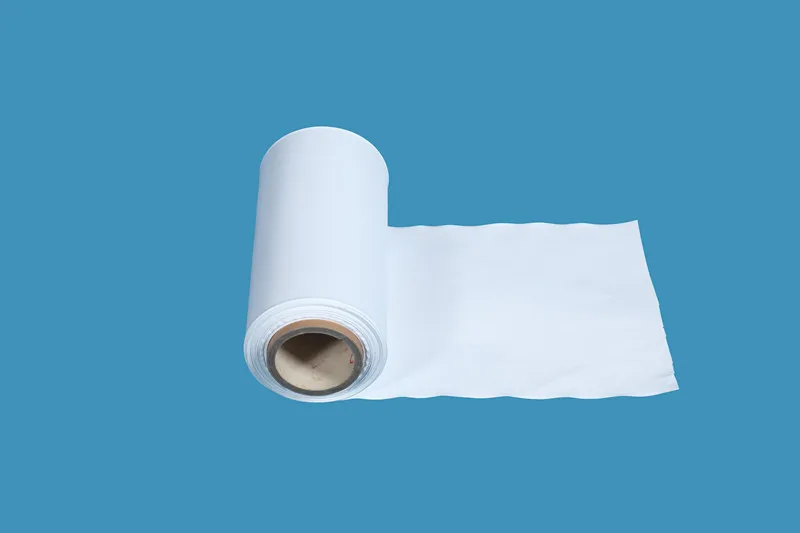

China Factory wholesale Hydrophobic and Hydrophilic PTFE roll membrane
Usage:
1.dustrial filtration equipment
2. Disc membrane
3.other Scientific research
