Pharmceutical grade sterile filter membranes api filtration

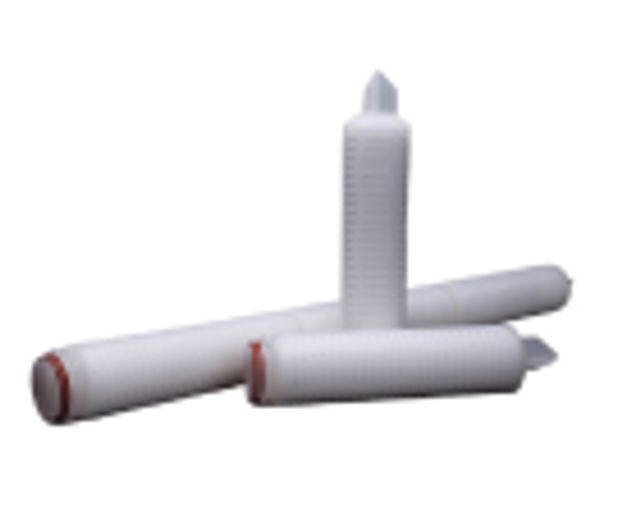

These PES membrane filters are constructed of absolute rated, hydrophilic polyethersulfone (PES) membrane and polypropylene components.
Polyethersulfone (PES) is low protein binding and excellent resistant to hydrolysis, therefore a good choice for terminal filtration(bacterial removal) of water treatment, food&beverage, pharmaceutical applications, etc.
Features
|
Extremely high flow rate |
No adhesives |
|
High purity water flushing,no fiber shedding |
|
Wide chemical compatibility |
|
Low binding to protein,and microorganism |
|
100% integrity test |
|
Material of Construction
|
Filter Media: PES asymmetric membrane |
Support layer/drainage layer:Polypropylene |
|
Cage/Endcap:Polypropylene |
|
Core:Polypropylene/Stainless steel |
|
Dimension
|
Outer diameter:Φ68,Φ69mm |
Inner diameter:Φ33mm |
|
Filter area:5~40in |
|
Core:0.65m2/10in |
|
Operation Conditions
|
PH range:2~13 |
Normal working temperature:≤60℃ |
|
Max working temperature:85℃ |
|
Max pressure drop:0.42Mpa/25℃ 0.10Mpa/80℃ |
|
Sterilization:Steam Sterilization for 30 minutes at 121±2℃,autoclave 30 minutes optional |
|
Extractables
|
Endotoxin:<0.25EU/ml |
Extractables:<0.03g/ 10" |
|
Typical water flow rate (10") |
|
Typical applications
|
Food&Beverage:wine,mineral water,pure water,juice |
Electonics:ultrapure water,disk,display,multi silicon |
|
Chemical: raw material clarification and sterilization |
|
Pharma: API, LPV, blood serum, biological products, protein solution, bacteriophage |
Ordering information:
GRADE | PRODUCT | MICRON | ADAPTER | LENGTH | O-RING / GASKET |
H - Chemical | IPS | 004-0.04um | AA- DOE | 10-10" | S-silicone; N-nitrile |
E - ELECTRONIC | 010-0.1um | CN-226/FIN | 20-20" | E-epdm ; T-teflon (encaptulated) | |
P - Phamar | 020-0.2um | BN-222/FIN | 30-30" | V-viton | |
F - Food | 045-0.45um | BF-222/ FLAT SEAL | 40-40" | How to Order?- Example | |
065-0.65um | CF-226/FLAT SEAL | 05-5" |
Pharmaceutical grade; Micron:0.45um; Length:10" ADAPTER: DOE; Gakset: Silicone. Selection Code is: PIPS045AA10S |
||
