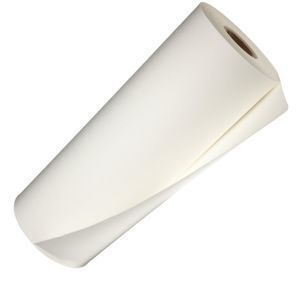

Professional hydrophobic pvdf membrane filter

Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fiona Li
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Showroom Location:	None;	Local Service Location:	None;
Application3:	lab testing;	color:	white;
After Warranty Service:	Online support;	Material:	PVDF;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Energy & Mining,Food & Beverage Shops,Other,Pharmaceutical;	Video outgoing-inspection:	Not Available;
Packaging Detail:	box and then put into cartoon;	Core Components:	Hydrophobic pvdf membrane;
Port:	Shanghai or Ningbo;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Condition:	New;	Package Preview:	;
Place of Origin:	Zhejiang China;	Type:	Hydrophilic and Hydrophobic;
Warranty:	1.5 years;	Machinery Test Report:	Provided;
Application1:	Gas filter;	Warranty of core components:	3 years;
Marketing Type:	New Product 2020;	width:	270mm;
Supply Ability:	3000 Roll/Rolls per Day;	certificate:	CE;ISO;
Brand Name:	Tianshan filter;	Application2:	industrial filtration equipment;
Application4:	disc membrane;	Shape:	roll;

Professional hydrophobic pvdf membrane filter

Product Description

PVDF membranes do not require the use of wetting agents, transmitting negligible extractables and increasing sample purity during sterilization or clarification procedures. Because of their exceptionally low protein binding our PVDF filters are well-utilized in the preparation of proteinaceous solutions for chromatography and other instrumental analyses. Broad chemical compatibility allows PVDF filters to accommodate a wide range of applications especially those requiring high flow rates/throughput.

Specifications

Nylon Membrane	Features	Natural hydrophobic
		High non-specific adsorption
		Chemical resistant to alkaline solutions and organic solvents
		Pore size: 0.10um - 3.00um
	Application	Particles removing filtration of water, aqueous solutions and solvents
		Particularly suitable for alkaline solutions and organic solvents.
Polyethersulfone(PES) Membrane	Features	Excellent throughput
		Natural hydrophobic
		Wide chemical compatiblity
		Broad pH-range of pH 2-14
		Low protein adsorption
		Pore size: 0.10um - 1.20um
	Application	Sterile filtration for pharmaceutical and beverage industries laboratory filtration
		Buffer filtration, tissue culture media filtration,etc
Polyvinylidene fluoride (PVDF) Membrane	Features	Natural hydrophobic
		Excellent temperature resistant
		Wide chemical compatiblity
		Low protein adsorption
		Pore size: 0.20um - 3.00um
	Application	Sterile filtration for gas/air, chemical organic solvents,etc
		Ideal for sterile manufacture of active pharmaceutical ingredients (API)

Mixed cellulose membrane	Features	Hydrophilic, no prewetting
		High flow rates and thermal stability
		Low protein adsorption
		Low protein adsorption
	Application	Widely used in analytical and laboratory filtration
Polytetrafluoroethylene (PTFE) Membrane	Features	Permanently hydrophobic
		Excellent chemical compatiblity
		High temperature resistant
		Broad pHPore size: 0.10um - 3.00um-range of pH 2-14
	Application	Air/gas sterile filtration
	Application	Aggressive chemicals, reagents and solvents bacterial removing

Technical Specification

Membrane Name	Nylon			PES
Pore Size (um)	0.20	0.45	0.65	0.20	0.45	0.65
Buble Point (Mpa)	0.30	0.20	0.15	0.33	0.22	0.18
pH Value	6 - 13			2 - 14
Water Flow Rate mL/cm2/min (ΔP=1.0bar)	Water			Water
	23℃			23℃
	>7	>20	>50	>20	>40	>75

PVDF			CN-CA			PTFE
0.20	0.45	0.80	0.20	0.45	0.65	0.10	0.20	0.45
0.09	0.06	0.04	0.30	0.20	0.15	0.15	0.10	0.07
1 - 14			4 - 8			1 - 14
Ethanol			Water			Air Flow Rate
23℃			23℃			m3/m2„/h
>7	>18	>45	>10	>25	>55	>2	>4	>6
Sterilization	by autoclaving (121 ℃ at 1 bar) or with ethylene oxide.

About us

Our service

1,24-hour Response
We responds any request from our clients within 24 hours, saving your time and labor.

2,Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.

3,Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.

4,Free Storage Area
We are providing free storage area to our client,to achieve mix loading purposes.

FAQ

1 How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....

2What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.

3How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment

Whats app:+86 18538816823
EMail:lyy(at)tsjmlc.com

Best wishes!

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.
