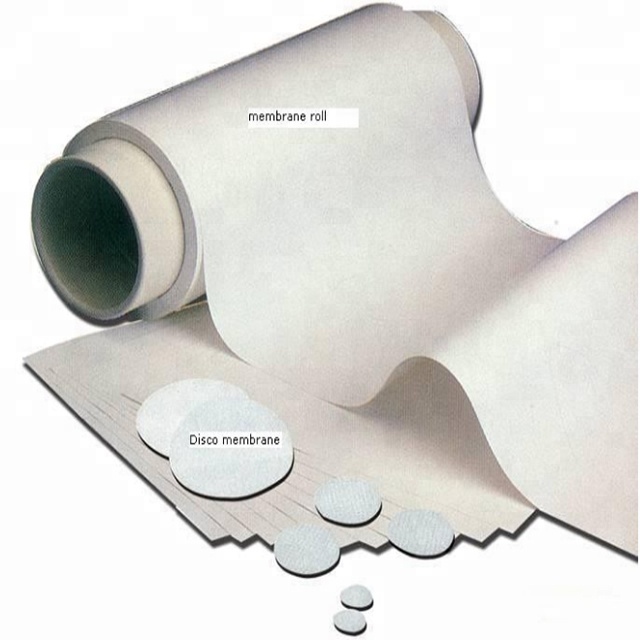

0.22 um 0.45 micron nylon PVDF PTFE membrane roll

Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fiona Li
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Marketing Type:	New Products 2021	case:	25/50
type:	Membrane filter	diameter:	13/25/47/90/142/293mm
Mechanical test report:	Not available	Filter media:	PP/PES/PTFE/PVDF/Nylon
Video external inspection:	if	place of origin; place of origin:	China
color:	white	Packaging Details:	plastic case, then put in a carton
Warranty:	1.5 years	Supply capacity:	3000 cases per day
Core components:	filter	Material:	0.22 um 0.45 micron nylon PVDF PTFE membrane roll
Health status:	new	Showroom location:	not any
shape:	square	payment terms:	L/C,Western Union,T/T
Core parts warranty:	1 year	model:	disc membrane
brand:	TS filter	Pore Size:	0.45 microns
Applicable industries:	water treatment machinery	port:	Shanghai or Ningbo
Weight (kg):	0.2

0.22 um 0.45 micron nylon PVDF PTFE membrane roll

Product Description

Product Description

Nylon membrane filters are specifically designed to evenly wet out and maintain membrane integrity without cracking, tearing, curling or breaking. Produced using a proprietary manufacturing process, these filters feature a nylon-impregnated polyester support mesh that provides consistent chemical/physical properties, flow rates and overall product uniformity due to stringent quality standards applied at every step. Due to its exceptional strength, nylon membranes can withstand vigorous handling and be used with automated equipment. In addition to their compatibility with most aqueous and alcoholic solvents and solutions.

feature

1. Entirely made of polyamide

2. Hydrophilic

3. High non-specific adsorption

4. High mechanical stability

5. Low in extractables

Specification

Nylon membrane	feature	Naturally hydrophilic
		High non-specific adsorption
		Resistant to alkaline solutions and chemicals Organic solvents
		Aperture: 0.10um - 3.00um
	application	Water, water particle removal filtration Solutions and Solvents
		Especially suitable for alkaline solutions and organic solvents.
Polyethersulfone (PES) membrane	feature	Excellent throughput
		Naturally hydrophilic
		Broad chemical compatibility
		Broad pH range from pH 2-14
		low protein adsorption
		Aperture: 0.10um - 1.20um
	application	Sterile Filtration of Pharmaceuticals and Beverages Industrial Laboratory Filtration
		Buffer filtration, tissue culture filtration, etc.
Polyvinylidene fluoride (PVDF) membrane	feature	Naturally hydrophobic
		Excellent temperature resistance
		Broad chemical compatibility
		low protein adsorption
		Aperture: 0.20um - 3.00um
	application	Sterile Filtration of Gas/Air, Chemicals organic solvent, etc.
		Ideal for aseptic production of active pharmaceuticals Ingredient (API)

Hybrid cellulose film	feature	Hydrophilic, no pre-wetting
		High flow rate and thermal stability
		low protein adsorption
		low protein adsorption
	application	Widely used for analysis and laboratory filtration
Teflon (PTFE) membrane	feature	Permanently hydrophobic
		Excellent chemical compatibility
		High temperature resistance
		Wide range of pH pore sizes: 0.10um - 3.00um - range pH 2-14
	application	Air/Gas Sterile Filtration
	application	Aggressive chemicals, reagents and solvents sterilization

Technical Specifications

Membrane name	nylon			Polyethersulfone
Aperture(um)	0.20	0.45	0.65	0.20	0.45	0.65
Bubble point (Mpa)	0.30	0.20	0.15	0.33	0.22	0.18
pH value	6 - 13			2 - 14
water flow ml/cm²/min (ΔP=1.0bar)	water			water
	23℃			23℃
	>7	>20	>50	>20	>40	>75

Polyvinylidene fluoride			China-CA			Teflon
0.20	0.45	0.80	0.20	0.45	0.65	0.10	0.20	0.45
0.09	0.06	0.04	0.30	0.20	0.15	0.15	0.10	0.07
1 - 14			4 - 8			1 - 14
Ethanol			water			Air flow
23℃			23℃			m3/m2„/h
>7	>18	>45	>10	>25	>55	>2	>4	>6
disinfect	Autoclave (121 °C, 1 bar) or ethylene oxide.

order information

product	membrane	Pore size	diameter
IF	PN - Nylon	010 - 0.10 microns	013 - 13mm
	PS-PES	020 - 0.20 microns	025 - 25mm
	Photovoltaic-PVDF	045 - 0.45 microns	047 - 47mm
	PF - Polytetrafluoroethylene	065 - 0.65 microns	090 - 90mm
	CNCA-CN-CA	080 - 0.80 microns	142 - 142mm
		100 - 1.00 microns	293 - 293 mm

pack
25G -	25 pieces in a carton, paper separated
50N -	50 packs in one case without paper separation
How to order? - example
Membrane: Nylon, Pore Size: 0.20 um, Diameter: 47mm
Packing: 25 pcs in a carton, paper separated
The selection code is: MFPN02004725G

Product Range Click below to select the product category you want

pleated filter element	Metal filter element	Other filters	filter housing
				PN filter series	Titanium alloy sintered filter element	small filter	Gas filter housing
PES filter series	pleated stainless steel filter	ZP Filter / Monolithic Filter	liquid filter housing
				PTFE filter series	Stainless Steel Sintered Filter	High Flow Filter	bag filter housing
PVDF filter series		wire wound filter	Titanium filter housing
				PP filter series		Meltblown filter	filter bottle
GF filter series		Activated carbon block filter	plate filter
						mesh filter
filter membrane	filter cloth	Capsule filter
				Nylon membrane	Polyester filter cloth
PES membrane	Nylon filter cloth
				PVDF membrane	Polypropylene filter cloth
CN-CA membrane	filter bag

about us

our service

1.24 hours response
We will respond to any requests from customers within 24 hours, saving you time and labor.

2. Supporting system
The system consists of a claim system, a technical support system, an inquiry system and an order tracking system. The system will provide a full range of after-sales services.

3. Free training
We offer free training to all customers and dealers. Training will give you a solid understanding of our products and make your job easier.

4. Free storage area
We provide our customers with free storage area for mixed loading purposes.

FAQ

1 How to get the price of filter element
Please tell us the specifications such as material, length, microns, adapters, for which industry...

2What is the minimum quantity required?
We do not require minimum requirements. thanks.

3What is your delivery time?
Orders are always arranged within 10 working days after receipt of deposit or payment

Sales Engineer: Nina Liu

What to apply: +86 18356516590
Email: lyy(at)tsjmlc.com

best wishes!

Exhibition
