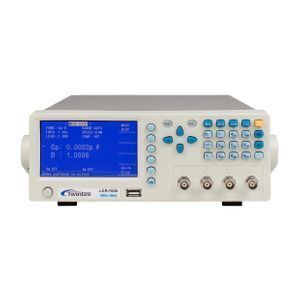

TWINTEX LCR-7030 High Precision RLC Meter Accuracy 0.1% 30kHz Digital LCR Meter

Supplier: Twintex Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily CHEUNG
Price: $150.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Memory:	Internal 100 sets memories, External 500 sets for U disk;	Certificate:	CE;
Supply Ability:	1000 Piece/Pieces per Month;	Calibration function:	Open circuit, Short circuit, Load;
Port:	SHENZHEN or HONG KONG;	Measurement:	5-terminal;
Communication interface:	Standard: RS232, USB HOST;	Model Number:	LCR-7030;
Brand Name:	TWINTEX;	Test Frequency:	30kHz;
Payment Terms:	L/C,T/T,Western Union;	Basic Accuracy:	0.1%;
Test Level:	0.1V, 0.3V, 1V;	Output impedance:	30Ω, 100Ω;
Comparator:	4-bin comparator;	Place of Origin:	China;
Packaging Detail:	Double-Layer cartons;

TWINTEX LCR-7030 High Precision RLC Meter Accuracy 0.1% 30kHz Digital LCR Meter

Introduction
The LCR7000 series are high precision LCR meter with basic accuracy 0.1% and 0.05% (LCR7000A) and maximum measurement frequency up to 500kHz. The 5-digit 4.3-inch TFT LCD display gives easy reading. The RS-232 interface facilitates in remote control and analysis of measurement results. With its fast measurement speed, wide frequency range and low cost, the LCR7000 series are widely used in R&D, IQC, online quality control and automatic test system.

Feature
32-bit core processor
5-digit 4.3-inch LCD display
2 signal source output impedance: 30Ω, 100Ω
100 sets memories for internal storage/save
500 memories for U disk storage/save, supports FAT16 and FAT32 files
Save the last parameter settings before power off
Standard interface: RS-232, HANDLER, USB HOST

Specifications

Model	LCR-7010		LCR-7030		LCR-7200
Measurement function
Test parameter	\| Z\|, \|Y\|, C, L, X, B, R, G, D, Q, θ
Test signal frequency	LCR-7010: 100Hz,120Hz,1kHz,10kHz LCR-7030: 100Hz,120Hz,1kHz,10kHz, 20kHz, 30kHz LCR-7200: 40Hz, 50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 800Hz, 1kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 15.7kHz, 16.2kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 66.6kHz, 75kHz, 100kHz, 120kHz, 150kHz, 200kHz (38 points)
Basic accuracy	0.15%	0.1%		0.1%
Equivalent circuit	Series, Parallel
Mathematical function	Absolute Deviation and Percentage Deviation
Range mode	Auto, Hold, Manual Selection
Trigger mode	Internal, Manual, External, BUS
Measurement speed	Fast: max.30, Medium: 10, Slow: 3 (times/second) (≥1kHz)
Average times	1-255
Delay time	0-60s, step 1ms
Calibration function	Open circuit, Short circuit, Load
Measurement terminal	5-terminal
Display mode	Direct, Δ, Δ%, V/I (monitoring test voltage and current)
Display	5 digit 4.3-in LCD display
Measurement signal
Output impedance	30Ω, 100Ω
Test level	0.1V, 0.3V, 1V	0.1V, 0.3V, 1V		0.05V to 1V
Test level accuracy	5%
Measurement display range
\|Z\|, R, X	0.01m Ω - 99.999 MΩ
\|Y\|, G, B	0.0001µS - 99.999 S
C	0.0001 pF - 9.9999 F
L	0.0001 µH - 999.99 H
D	0.0001 - 9.9999
Q	0.0001 – 9999.9
θ (DEG)	-179.99º -179.99 º
θ (RAD)	-3.14159 - 3.14159
Δ%	-999.99% - 999.99%
Comparator and interface
Comparator	N/A	4-bin comparator		5-bin comparator
Memory	100 sets memories for internal parameter settings storage/save 500 sets for U disk parameter settings storage/save
Standard interface	Standard: RS232, USB HOST	Standard: RS232, USB HOST, HANDLER
Optional interface	N/A
General
Operating environment	0°C - 40°C, ≤80%RH
Power source	110/220V±10%, 47~63Hz
Power consumption	≤30VA
Accessories	4-terminal Kelvin test clip leads, RS232 cable, power cord, operation manual
Dimensions	265W100H340D mm
Weight	Approx.3.5kg
