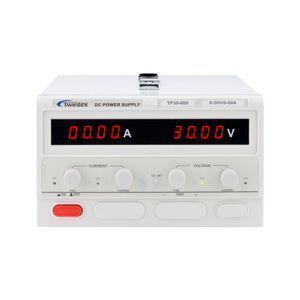

30V 60V 80A Digital Switch Mode Laboratory AC DC Adjustable Regulated Power Supply TP30-80S

30V 60V 80A Digital Switch Mode Laboratory AC DC Adjustable Regulated Power Supply TP30-80S

Function
The TP-S series are high power output DC power supply with output range up to 5000W. The TP-S series can be made according to customer request, with output voltage up to 600V and output current up to 200A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and Over Load Protection keep the TP-S series and their load safe from unexpected conditions. High Accuracy, high stability and low ripple & noise make the TP-S series an ideal solution for various industrial applications.

Features
Max. output power ranging from 150W to 5000W
Max. output voltage 600V, Max. output current 200A
Applying advanced PWM control technology
Compact design and light weight (3~10kg)
Constant voltage and constant current operations
Auto CV/CC switch
Coarse and Fine control for voltage and current
Over voltage, over current, over temperature and over power protections
Adjustable OVP range, OCP fixed 105% of Max. current range
Intelligent temperature control cooling fan
Customized specifications and functions acceptable

Output capacity: 150W~5kW
Working mode: PWM

Output
Output voltage: DC 0~100% full range adjustable
Output current: DC 0~100% full range adjustable
O.V.P. range: DC 1~100% rated output
O.C.P. range: DC fixed 105% max. output
Line regulation: CV≤0.2% +2 digits; CC≤0.5% +2 digits
Load regulation: ≤0.5% +2 digits
Ripple & Noise: ≤1% rms full scale

Display
Voltmeter: 4 digits LED display
Ammeter: 4 digits LED display
Voltage resolution: 0.000-9.999V; 00.00-99.99V; 000.0-999.9V
Current resolution: 0.000-9.999A; 00.00-99.99A; 000.0-999.9A
Accuracy ±(1% FS+1 digit)

Optional functions
Display meter: 4 1/2 digits LED display (Max. display 19999)
Output terminal: On front panel; or on rear panel; or on both front and rear panels
Output ON/OFF switch on front panel
Remote ON/OFF switch on rear panel

General
Protection: Over voltage, over current, over temperature and over load protections
Operating environment: 0℃~40℃, <80%RH
Storage environment: -10℃~70℃, <80%RH
Power source: AC110V/220V±10%, 50/60Hz
Input module: Power socket or terminal block
Dimension (WxHxD):
200x150x285mm (M chassis, 150W~1250W)
260x160x380mm (L chassis, 1300W~3000W)
260x160x440mm (XL chassis, 3000W~5000W)
