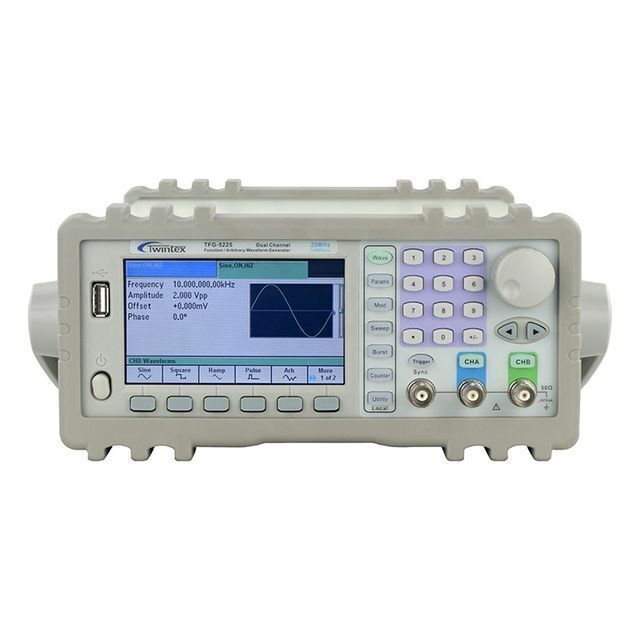

High Voltage Programmable 2 Channel Digital Frequency Arbitrary Waveform DDS Signal Generator

Supplier: Twintex Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily CHEUNG
Price: $400.00 / 1 - 9 pieces
$350.00 / 10 - 49 pieces
$320.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Certification:	/;	Vertical Resolution:	14 bits;
Model Number:	TFG-5225;	Wave Length:	16k points;
Customized support:	OEM,ODM;	Distortion:	0.2%;
Frequency range:	1uHz~25MHz;	Packaging Detail:	Double-layer cartons;
Selling Units:	Single item;	Sample Rate:	150MSa/s;
OEM:	50pcs;	Place of Origin:	Guangdong China;
Waveforms:	6 standard waveforms, 50 built-in waveforms and 12 arbitrary waveforms;	Single package size:	48X32X43 cm;
Interface:	RS232, USB device, USB Host, support SCPI commands;	Warranty:	1 year;
Type:	DDS;	Frequency counter:	250MHz external frequency counter;
Single gross weight:	9.0 KG;	Modulation mode:	AM, DSSC AM, FM, PM, ASK, FSK, BPSK;
Brand Name:	TWINTEX;

Square Wave Programmable 2 Channel High Voltage Digital Frequency Arbitrary Waveform DDS Signal Generator

Product Description

Twintex TFG5200 Series 25MHz 40MHz 60MHz Programmable DDS Arbitrary Waveform Function Generator

Introduction

The TFG5200 series are arbitrary waveform/function generators with maximum frequency of 25MHz, 40MHz and 60MHz, based on Direct Digital Synthesis (DDS) technology, providing high fidelity, low jitter performance function signal and arbitrary waveform signal.

The TFG5200 series are equipped with 150MSa/s sampling rate, 14 bits vertical resolution, ±1ppm high stability and high accuracy waveform output, 250MHz frequency counter, as well as digital modulations of AM, DSSC AM, FM, PM, ASK, FSK, BPSK. Built-in USB device, USB host and RS232 interface support easy remote control. 4.3-inch TFT LCD display, user-friendly interface design and keyboard layout brings excellent operation experience.

Features
Frequency range 1μHz~25MHz/40MHz/60MHz
2 independent output channels at same frequency range for main waveforms
4.5-inch TFT LCD display
Min. output amplitude 1mVpp (50Ω), total distortion 0.2%
Sampling rate 150MSa/s, vertical resolution 14 bits, waveform length 16k points
6 standard waveforms, 50 built-in waveforms and 12 user-defined arbitrary waveforms
10 sets save & recall for operating parameters
Modulations: AM, DSSC AM, FM, PM, ASK, FSK, BPSK
Synchronous output, external modulation input, trigger input, external reference input and count input
Linearity/Logarithmic sweep signal and Burst signal
Channel coupling, parameter (frequency, amplitude, offset, phase) coupling, point frequency replication tracking
Strong arbitrary waveform building software, support SCPI commands
Over voltage, over current, short circuit and reverse voltage protections
Standard interface: RS232, USB device, USB Host
250MHz external frequency counter
Optional power amplifier

Specifications

Model		TFG-5225	TFG-5240	TFG-5260
Output Frequency
Range	Sine	1μHz ~ 25MHz	1μHz ~ 40MHz	1μHz ~ 60MHz
	Square	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 15MHz
	Ramp	1μHz ~ 500kHz	1μHz ~ 1MHz	1μHz ~ 1MHz
	Pulse	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 15MHz
	Noise	30MHz white noise (-3dBm)
	Arbitrary	1μHz ~ 6.5MHz
Resolution		1μHz
Accuracy		≤±5x10-5
Waveform
Output waveform		Sine, Square, Ramp, Pulse, Noise, Arb, DC
Waveform length		8~16384 points (CHA), 8~2048 points (CHB)
Vertical resolution		14 bits
Sampling rate		150MSa/s
Sine		Harmonics distortion < -70dBc, < 20kHz < -50dBc, 20kHz ~ 1MHz < -40dBc, 1MHz ~ 30MHz < -30dBc, 30MHz ~ 60MHz Total distortion≤0.2% (20Hz ≤ f ≤100 kHz)
Square Pulse		Rise/fall edge: 18ns Duty cycle: 0.1% ~ 99.9% Edge jitter: ≤150ps rms
Ramp		Symmetry: 0.0% ~ 100.0% Non-linearity ≤0.1%, 5%~95% of signal
Noise		Repeat cycle >50 years
Arbitrary		Sampling rate : 1μSa/s ~ 50MSa/s Vertical resolution: 14 bits
Output Characteristics
Amplitude		CHA range (High impedance) 2mVpp~20Vpp ≤15MHz 2mVpp~10Vpp ≤60MHz (50Ω) 1mVpp~10Vpp ≤15MHz 1mVpp~5Vpp ≤60MHz
		CHB range 2mVpp~6Vpp (High impedance) ≤60MHz 1mVpp~3Vpp (50Ω) ≤60MHz
		Flatness (1kHz) ±0.1dB (<100kHz), ±0.5dB (100kHz ~ 10MHz) , ±1.0dB (10MHz ~ 60MHz)
Offset		CHA level range: ±(10V DC~AC peak/2) (High impedance) ±(5 VDC~AC peak/2) (50 Ω)
		CHB level range: ±(189.3 mV DC–AC peak/2) (High impedance) ±(94.7 mV DC –AC peak/2) (50 Ω)
		CHA accuracy: ±1% offset setting value ±0.25% amplitude setting value ±2mV
		CHB accuracy: ±1% offset setting value ±0.25% amplitude setting value ±3mV
Modulation		AM modulation depth : 0.0%~120.0%
		FM modulation deviation : 0 ~fc/2
		PM modulation range : 0.0°~360.0°,
		FSK : 1μHz~Fsine max (Sine), 1μHz~ Fsquare max (Square/Pulse), 1μHz~ Framp max (Ramp)
		BPSK : 0.0°~360.0°
		ASK : 2mVpp~ 20Vpp
Sweep		Sweep mode : Linearity/Logarithmic
		Sweep time : 0.001s~1000s
		Trigger source : Imm/Ext/Bus
Burst		Burst mode : N Cycle/Gated
		Burst numbers : 1~1000000, resolution 1
		Interval time : 1μ ~1000S, resolution 1μS
Pulse		Pulse width : 28.5 ns ~ period - 28.5 ns
		Overshoot: ≤2%(CHA) (50Ω)
		Edge jitter: ≤150ps rms
Counter		Frequency range : 0.1Hz~250 MHz
		Resolution : 6 digits/s
Power amplifier (optional)		Frequency bandwidth: 20Hz~200kHz
		Max. output power: 5W sine wave
Interface		USB Device, USB Host, RS232
Power source		AC100~240V, 47~63Hz, Max. 30VA
Accessories		Power cord x1, Operation manual x1, Software CD x1, USB cable x1, RS-232 cable x1, BNC-BNC cable x1, BNC-Crocodile cable x1
Dimension		Chassis: 260Wx110Hx385D mm Instrument: 295Wx195Hx415D mm
Weight		4kg
