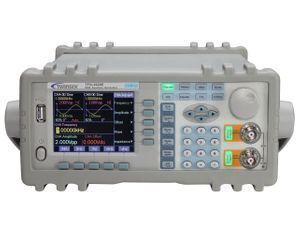

Twintex TFG-3620E DDS Function / Arbitrary Waveform Generator 20MHz Dual Channel Digital Signal Source
Introduction
The TFG3600E series are arbitrary waveform/function generators with maximum frequency of 5MHz, 10MHz, 15MHz and 20MHz, based on Direct Digital Synthesis (DDS) technology providing flexible performance and system features for basic scientific and industrial requirements.
The 8 bits resolution, 100MSa/s sampling rate, 1024 pts memory length, 32 built-in waveforms and 8 user-defined arbitrary waveforms create various waveforms for different needs. Free PC software for RS-232 interface control. The TFG3600E series have additional functions of multiple modulations FM, FSK, ASK and PSK, 200MHz external frequency counter, 40 sets memories and multiple protections. Stable output frequency, high accuracy and low distortion make TFG3600E series an ideal solution for an accurate and affordable signal source for industrial, scientific research and educational applications.
Features
Max. output frequency 5MHz/10MHz/15MHz/20MHz
2 output channels
3.5-inch TFT LCD display
Direct Digital Synthesis technology (DDS)
Min. output amplitude 1mV (50Ω) with good stability
Sampling rate 100MSa/s, vertical resolution 8 bit, waveform length 1024 points
Arbitrary waveform function
32 built-in waveforms and 8 user-defined arbitrary waveforms
40 sets save & recall for panel settings
Modulations: FM, FSK, ASK, PSK
Frequency sweep, amplitude sweep, burst and TTL output functions
Over voltage, over current, short circuit and reverse voltage protections
High speed rotary dial and keypad input
Standard RS-232 interface for PC remote control
Standard 200MHz external frequency counter
Optional power amplifier
Specifications
Model | TFG-3605E | TFG-3610E | TFG-3615E | TFG-3620E | |
Waveform | |||||
Output waveform | 32 built-in waveforms, including Sine, Square, Triangle, Ramp, Pulse, etc. 8 user-defined arbitrary waveforms | ||||
Waveform length | 1024 points | ||||
Vertical resolution | 8 bits | ||||
Sampling rate | 100MSa/s | ||||
Sine | Harmonic distortion | ≥40dBc (<1MHz); ≥35dBc (1~20MHz) | |||
Total distortion | ≤1% (20Hz~200kHz) | ||||
Square | Rise/fall time | ≤35ns | |||
Overshoot | ≤10% | ||||
Duty cycle | 1%~99% | ||||
Frequency | |||||
Range | Sine | 1μHz~5MHz | 1μHz~10MHz | 1μHz~15MHz | 1μHz~20MHz |
Square | 1μHz~5MHz | ||||
Other | 1μHz~1MHz | ||||
Resolution | 1μHz | ||||
Accuracy | ±5x10-5 | ||||
Output characteristics | |||||
Amplitude | Range | 2mVpp~20Vpp (open circuit) | |||
Resolution | 20mVpp (amplitude>2Vpp); 2mVpp (amplitude<2Vpp) | ||||
Accuracy | ±(1%+2mVrms) (open circuit, 1kHz, sine) | ||||
Stability | ±0.5% /3hours | ||||
Flatness | ±5% (<10MHz); ±10% (>10MHz) | ||||
Output impedance | 50Ω | ||||
Offset | Range | ±10V (open circuit, attenuation 0 dB) | |||
Resolution | 20mVdc | ||||
Accuracy | ±(1%+20mVdc) | ||||
Sweep | |||||
Time | 100ms~900s | ||||
Direction | Up, Down, Up-Down | ||||
Mode | Linearity, Logarithmic | ||||
Modulations | |||||
Frequency Modulation (FM) | Carrier signal: CHA signal Modulating signal: CHB or external signal Deviation: 0%~20% | ||||
Shift Keying | FSK: Free to set the hop frequency and the carrier frequency ASK: Free to set the hop amplitude and the carrier amplitude PSK: Hop phase: 0~360°, resolution: 1° Alternative rate: 10ms~60s | ||||
Burst | Carrier signal: CHA signal Trigger signal: TTL_A signal Burst counts: 1~65000 cycles Trigger source: Internal TTL, External, Single | ||||
CHB output characteristics | |||||
Waveform | 32 built-in waveforms, including Sine, Square, Triangle, Ramp, Pulse, etc. 8 user-defined arbitrary waveforms Waveform length: 1024 points Vertical resolution: 8 bits Sampling rate: 12.5MSa/s | ||||
Frequency | Frequency range: Sine: 1μHz~1MHz; Other: 1μHz~100kHz Frequency resolution: 1μHz Frequency accuracy: ±1x10-5 | ||||
Amplitude | Amplitude range: 50mVpp~20Vpp (open circuit) Amplitude resolution: 20mVpp Output impedance: 50Ω | ||||
Burst (CHB signal is used as burst signal) | Carrier signal: CHB signal Trigger signal: TTL_B signal Burst counts: 1~65000 cycles Trigger source: Internal TTL, External, Single | ||||
TTL output | |||||
Waveform | Square, rise/fall time ≤20ns | ||||
Frequency | 10mHz~1MHz | ||||
Amplitude | TTL, CMOS compatible, low<0.3V, high>4V | ||||
Frequency counter | |||||
Frequency range | 1Hz~200MHz | ||||
Input amplitude | 100mVpp~20Vpp | ||||
General | |||||
Interface | Optional RS-232 interface | ||||
Power source | AC110V/220V±10% selectable, 50/60Hz, Max. 45VA | ||||
Standard accessories | Power cord x1, Operation manual x1, BNC-BNC cable x1, Test lead x1 | ||||
Dimension (WxHxD) | 260x110x385mm | ||||
Weight | 3.5kg |
