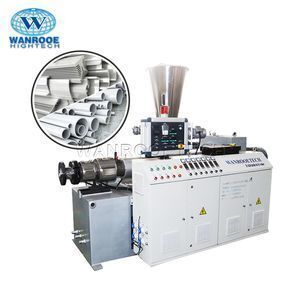

Conical Twin Screw PVC Pipe Sheet Profile Plastic Extruder Price

Supplier: Wanrooe Machinery Co., Ltd. (Zhangjiagang)
Region: Jiangsu, China
Contact: Mr Anthony Xia
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

motor brand:	Siemens;	Voltage:	380v;
Port:	Shanghai;	Certification:	CE;
Payment Terms:	L/C,T/T,Western Union;	Key Selling Points:	Automatic;
Brand Name:	wanrooe;	Applicable Industries:	Manufacturing Plant;
Warranty:	1 year;	power source:	380v 50hz;
After-sales Service Provided:	Video technical support,Online support;	Dimension(LWH):	370015002400mm;
Warranty:	1 Year;	Packaging Detail:	Conical Twin Screw PVC Pipe Sheet Profile Plastic Extruder Price wrapped with film then come into wooden case for container shipping;
Power (kW):	37;	Center Height:	1000/1200;
Processing Type:	Pipe Board Sheet Extrusion;	Plastic Processed:	PVC UPVC WPC;
Raw material:	PVC UPVC WPC;	Screw diameter (mm):	100 mm;
Place of Origin:	Jiangsu China;	Product Name:	Conical Twin Screw PVC Pipe Sheet Profile Plastic Extruder Price;
screw design:	conical twin screw;	motor power:	37kw;
Output (kg/h):	100 - 1000;	Screw Design:	Double-screw;
Automatic Grade:	automatic;	Weight:	2000kg;
Condition:	New;	Application:	Pipe Profile Sheet;
Supply Ability:	500 Set/Sets per Year Conical Twin Screw PVC Pipe Sheet Profile Plastic Extruder Price;	Power(W):	37kw;

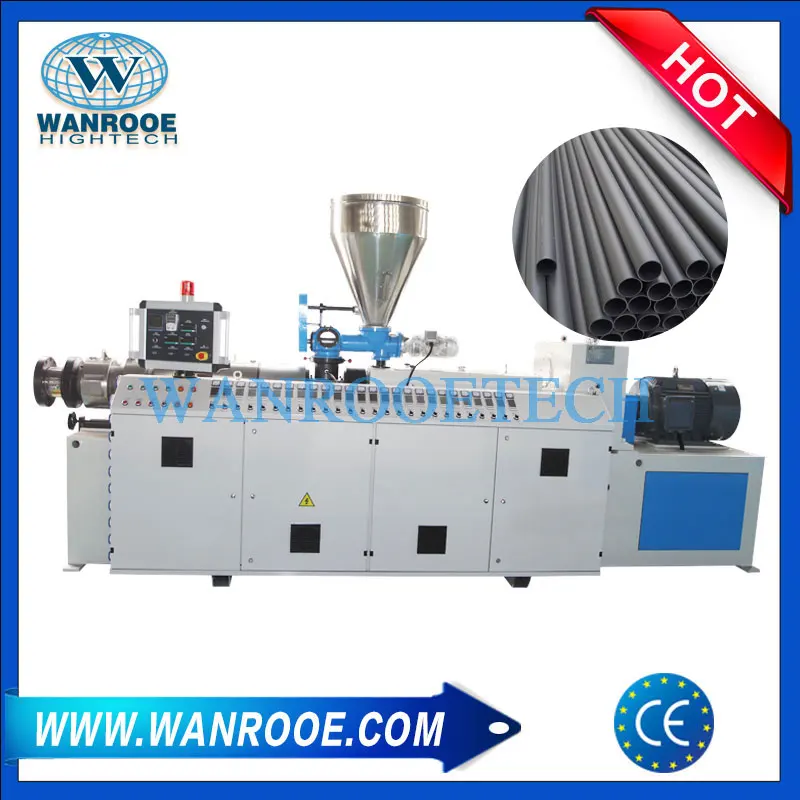

Conical Twin Screw PVC Pipe Sheet Profile Plastic Extruder Price

Product Description

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

Description:
The serise extruders with appropriate diemould and auxiliary machine can directly convert thermoplastic espical pvc powder into pipe, plate sheet, film and profile, and also provide function of modefling and pelleting, but twin screw extruder need work with different downstream machines in the whole production line.

The extruders are derived by DC motor with a thrusters to regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by ciculation of oil, it includes vacuum venting and forced feeding.

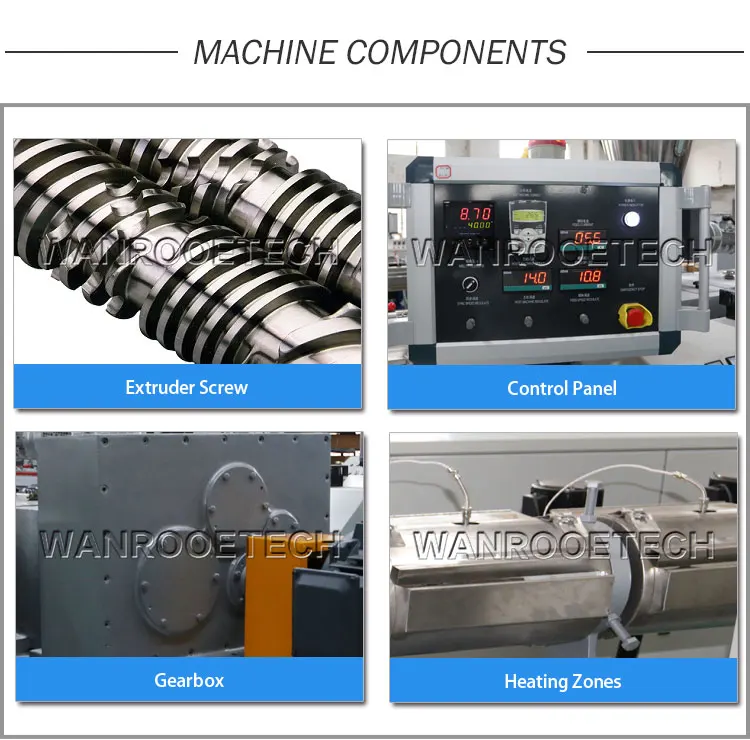

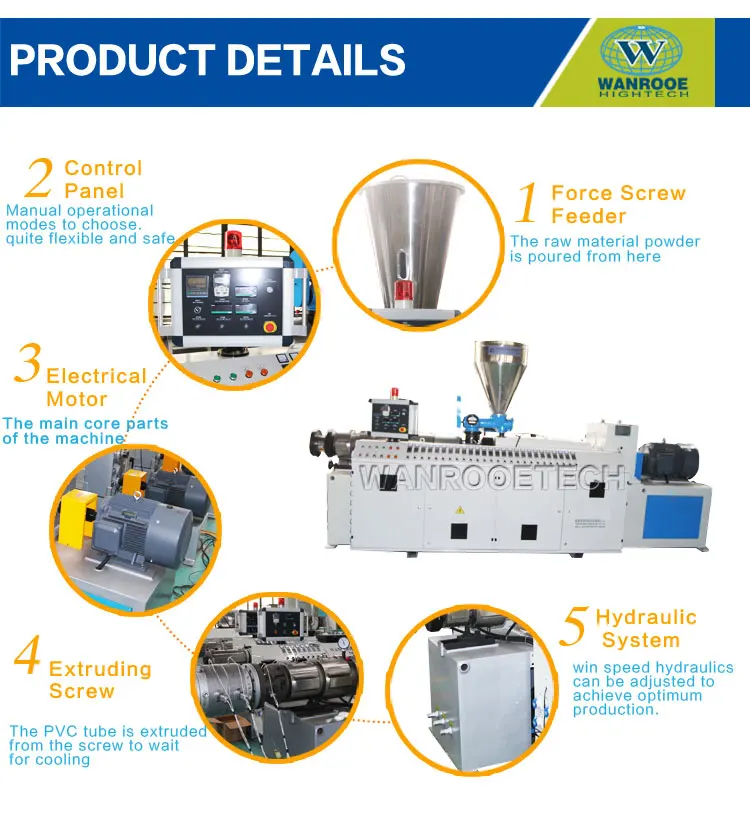

Components:

Technical Features:

Twin Screw Extruder With PLC Control system, reliable and stable performance.

Equipped with over-load protection and stoppage alarming system.

Specified screw design for better material plasticizing & mixing effect, bimetallic screw and barrel can guarantee perfect solution.

This extruder is equipped with AC motor, auto temperature controller, vacuum exhausting device etc.

This production line is suitable for production of plastic pipe, plate and profile and etc.

Concourse chip(inside is chrome plating) is equipped on the extruder head, pressure sensor device is also equipped with.

Application Areas:

Item	SZ-45	SZ-51	SZ-55	SZ-65	SZ-80	SZ-92
Diameter of screw	45/90	51/105	55/113	65/132	80/156	92/188
Number of screw	2	2	2	2	2	2
Direction of screws	Screw rotation direction
Screw rotation speed	1-45	1-45	40	1-35	1-37	1-33
Effictive length of screw	985	1070	1200	1440	1800	2500
Power of main engine(kw)	15	18.5	20	37	55	90
Capacity(kg/h)	120	80-150	150-180	250-300	320-400	600-800
Net weight	2800	3200	3500	4000	5000	8000
