GR180 motor grader made in china

Product details
Place of Origin:Jiangsu China;Dimension(LxWxH):8900*2625*3470mm;
Applicable Industries:Construction works ;Travelling speed ,reverse:5,11,23 km/h;
Hydraulic Valve Brand:Bosch Rexroth;Max. gradeability:20%;
Engine model:6CTAA8.3 D6114;Rated power/speed:138kW/2200 140kW/2300rpm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Condition:New;
Operating weight(Standard):15400kg;Travelling speed ,forward:5,8,11,19,23,38 km/h;
Hydraulic Cylinder Brand:Bosch Rexroth;Brand Name:CANMAX;
Tractive force(f=0.75):79KN;Reverse Speed(km/h):23;
Dimension(L*W*H):8900*2625*3470mm;After-sales Service Provided:Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available;
Hydraulic Pump Brand:KYB;Warranty:1 year;
Forward Speed(km/h):38;Tire inflation pressure:260 kPa;
Certification:ISO;Working hydraulic pressure:16MPa;
Engine Brand:WEICHAI;Port:any port in china;
Supply Ability:10 Set/Sets per Month;Packaging Detail:STANDARDED PACKING FOR EXPORT;



Buying Guides

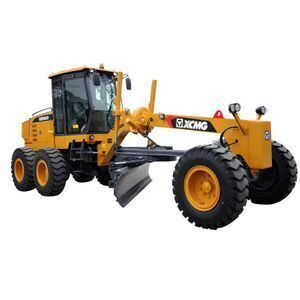

XCMG GR180 motor grader made in china



Product Description

1,Dongfeng Cummins Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.

2,Double-circuit hydraulic brake system makes the brake more reliable and stable;
3,Steering to the load sensing system, the main hydraulic components adopt international support to ensure  the stability and reliability of the system;
4,Use XCMG special enhanced work devices;
5,The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material;
6,Various options expand the machine's performance and working range.

Main Parameter



DescriptionUnitParameter value
Engine model 6CTA8.3-C190-Ⅱ
Rated power/speedkW/rpm142/2200
Overall dimension (standard) 8900x2625x3420
Total weight (standard)kg15400
Tire specification 17.5-25
Ground clearance (front axle)mm430
Treadmm2156
Space of front and rear axlesmm6219
Space of middle and rear wheelsmm1538
Forward velocitykm/h5/8/11/19/23/38
Reverse speedkm/h2005/11/23
Tractive effort f=0.75kN≥79
Maximum gradeability%≥25
Tire inflation pressurekPa260
Working system pressureMPa18
Transmission pressureMPa1.3—1.8
Maximum steering angle of front wheel ±50°
Maximum slant angle of front wheel ±17°
Maximum oscillating angle of front axle ±15°
Maximum oscillating angle of equilibrium box Front15° Rear15°
Maximum steering angle of frame ±27°
Minimum turning radiusm7.3
Scrape knifeMaximum lift height mm450
Maximum cutting depth mm500
Maximum tilt angle   90°
Cutting angle   28°—90°
Angle of revolution   360°
Length & chord heightmm3965x610
CoolantL50
Fuel tankL280
EngineL24
TransmissionL38
Drive axleL28
Balancing boxL46
