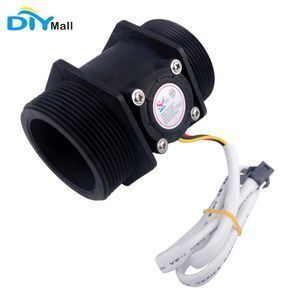

DIYmall DN50 G2" Water Flow Hall Effect Sensor Switch Gauges Flowmeter Counter Black

Supplier: Shenzhen FlyFun Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Melody Gan
Price: $10.87 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Model Number:	XZ0044;	SKU:	XZ0044;
Brand Name:	DIYmall;	Single gross weight:	0.21 KG;
Brand:	DIYmall;	Single package size:	11.2X9X9 cm;
Selling Units:	Single item;	Place of Origin:	Guangdong China;
Item:	Water Flow Sensor;

DIYmall DN50 G2" Water Flow Hall Effect Sensor Switch Gauges Flowmeter Counter Black

Feature:
Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Inlaid with stainless steel impeller shaft, durable wearable.
Suitable for automatic gas water heater.
Specification:
Material:Plastic / monocrystalline
Color:Black
Sensor:Hall effect
Interface Type: 2" interface (2 inch tubing)
Flow accuracy range: 10 ~ 300L / min ± 3%
Lowest rated working voltage: DC 5V-24V
Maximum operating current: 15 mA (DC 5V)
Operating voltage range: DC 5 ~ 18 V
Load capacity: ≤10 mA (DC 5V)
Operating temperature range: ≤80°C
Operating humidity range: 35% ~ 90% RH (no condensation state)
Allow withstand water pressure: <1.75Mpa
Storage temperature: -25 ~ + 80°C
Save Humidity: 25% ~ 95% RH
Production process: Integrated
Output high pulse:> DC 4.5 V (input voltage DC 5 V)
Output pulse low: Output pulse duty cycle: 50 ± 10%
Output Rise Time: 0.04μS
Output Fall Time: 0.18μS
Flow - Level Test pulse frequency pulse characteristics: (Hz) = [0.2 * Q] ± 3% (proficiency tests) (Q is flow L / min)
Dimension:92 x 59mm/3.62 x 2.32"(L x Dia)
Weight:200g

Package Include:
1 x Water Flow Hall Sensor Switch
