Cold paint airless road line marking machine

Product details
Spray Gun:One;Engine:Gasline Engine;
Supply Ability:500 Set/Sets per Month road marking machine;UNIQUE SELLING POINT:Long lifetime;
Place of Origin:China;Size:1120mm*790mm*950mm;
Name:Cold paint airless road line marking machine;After-sales Service Provided:Video technical support,Online support;
Warranty:1 year;Keyword:road marking machine;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ;Port:Qingdao/shanghai;
Condition:New;Power(W):4kw;
Paint Type:Cold Paint/2-component;Color:Customised;
Packaging Detail:Wood case for Cold paint airless road line marking machine;Max Flow:3.8L/Min;
Payment Terms:T/T,Western Union,MoneyGram;Mark width:50-350mm;

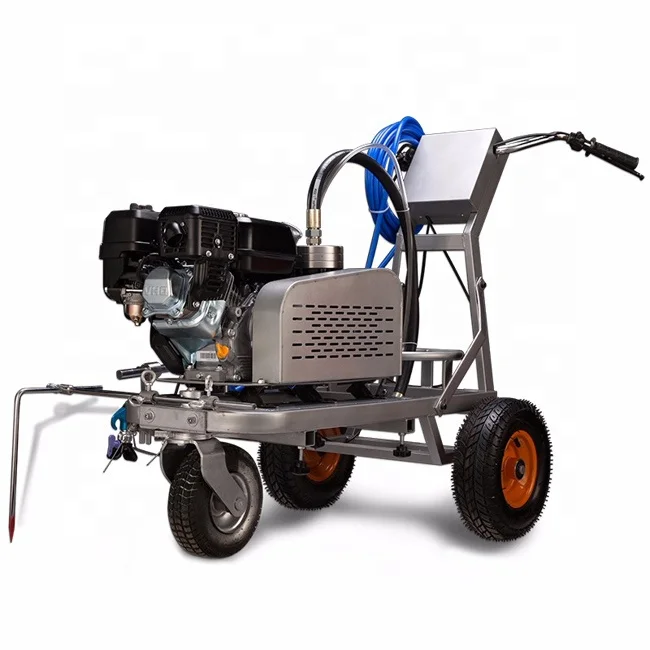

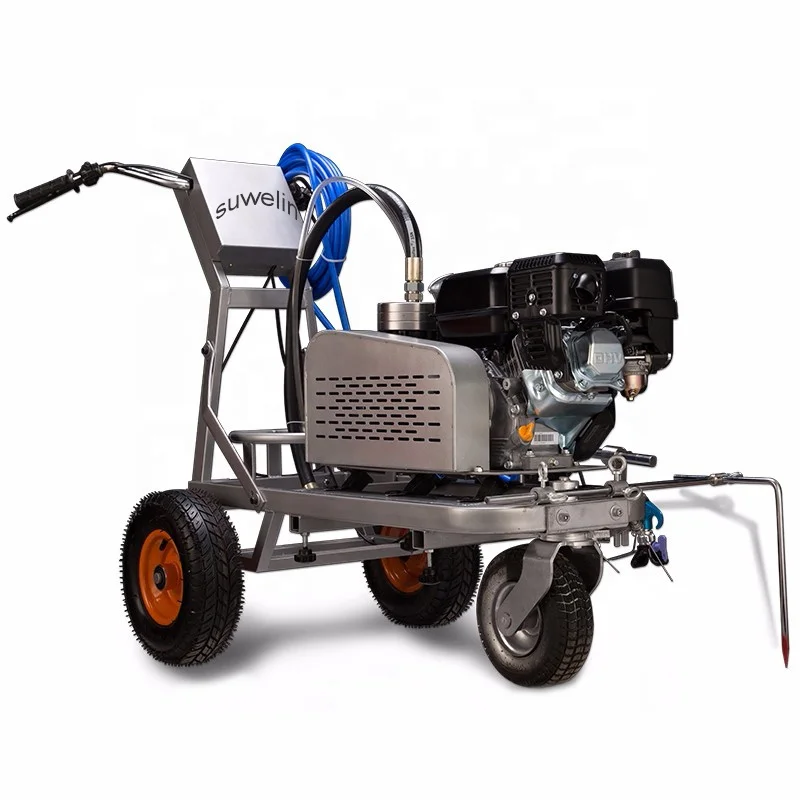

Cold paint airless road line marking machine

Hand Push Cold Paint Road Marking Machine has the features of flexible operation,small size, light weight, marking clear and full lines, spraying high adhesive force of paint and a wide range of applications in marking and spraying.

ModelSW-N1
Line width50-350mm
EngineHonda gx160 gasoline
Weight85kg
Paint nozzle2 pcs
Flow8L/min
Starting modeManual
Fuel tank capacity2L
Length of hose10m
Packing size750*420*660mm

The cold street painting machine road marking machine can delimit factory, car parks,residential area parking, road marking,zebra crossing and so on the road line.


Structure & Function:
1. Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine has been adopted in the line marking machine to create clear, smooth, saturating and even limes, providing a high working efficiency.
2. Both sides of the spraying gun are equipped with a paint-limiting plates, ensuring the line free of raw edges. Such plates may be lift through a pulling line in steering, turning flexibly.
3. The spraying gun may be conveniently dismantled to change different nozzles and control the line width, suitable for common airless spraying for marks or labels.
4. It runs by pushing, with convenient turning, reliable orientation, and flexible turning.
