Showroom Location: | None; | Condition: | New; |
Warranty of core components: | 1 Year; | Dimension(L*W*H): | 105x80x120cm; |
Payment Terms: | L/C,Western Union,T/T,MoneyGram; | Certification: | ce; |
UNIQUE SELLING POINT: | Long lifetime; | Disc Diameter: | 570mm; |
Video outgoing-inspection: | Not Available; | Current: | 16A; |
Core Components: | Motor; | Port: | shanghai; |
Voltage: | 220v/380v; | Function: | grinding polishing floor; |
Warranty: | 1 Year; | After-sales Service Provided: | Video technical support,Online support; |
Place of Origin: | China; | Rotating speed: | 300-1800rpm; |
Supply Ability: | 500 Set/Sets per Month planetary floor grinder; | Keyword: | planetary floor grinder; |
Packaging Detail: | Wood case for 3 heads concrete planetary terrazzo floor grinder; | Weight: | 295; |
Inverter: | 11kw; | water tank: | 68L; |
After Warranty Service: | Online support; | Automatic Grade: | Semi-automatic; |
Marketing Type: | New Product 2020; | Name: | 3 heads concrete planetary terrazzo floor grinder; |
Motor: | 10HP; | Model: | 588-3; |
Applicable Industries: | Building Material Shops,Machinery Repair Shops,Farms,Home Use,Retail,Construction works ; | Local Service Location: | None; |
Power: | 7.5kw; | Machinery Test Report: | Not Available; |
Brand Name: | suwelin; |

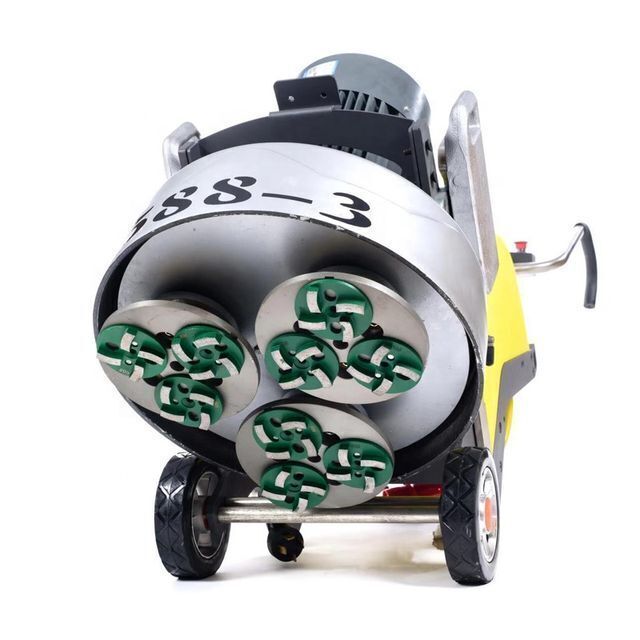

3 heads concrete planetary terrazzo floor grinder
It uses All-aluminum alloy gearbox and gear-drive planetary head reduce noise and improve surface flatness.
The S-shape shelf design allows for a larger angle to be seen when changing the grinding disc,and the grounding is more stable.
Iron block transforms the center of gravity through the slider,not only increase the weight of the machines,but also help you lift the bottom and carry it easily.
Model | 588-3 | 688-4 | 788-4 |
Voltage | 220v/380v | 380v | 380v |
Phase | 1phase/3phase | 3 phase | 3 phase |
Inverter | 7.5kw(10hp) | 7.5kw(10hp) | 15kw(20hp) |
Frequency | 50/60hz | 50/60hz | 50/60hz |
Working width | 570mm | 670mm | 770mm |
Disc quantity | 9pcs | 12pcs | 24pcs |
Rotating speed | 300-1800rpm | 300-1800rpm | 300-1800rpm |
Water tank volume | 68L | 68L | 80L |
Weight | 295kg | 380kg | 480kg |
Packing size | 105x80x120cm | 120x80x130cm | 135x85x130cm |

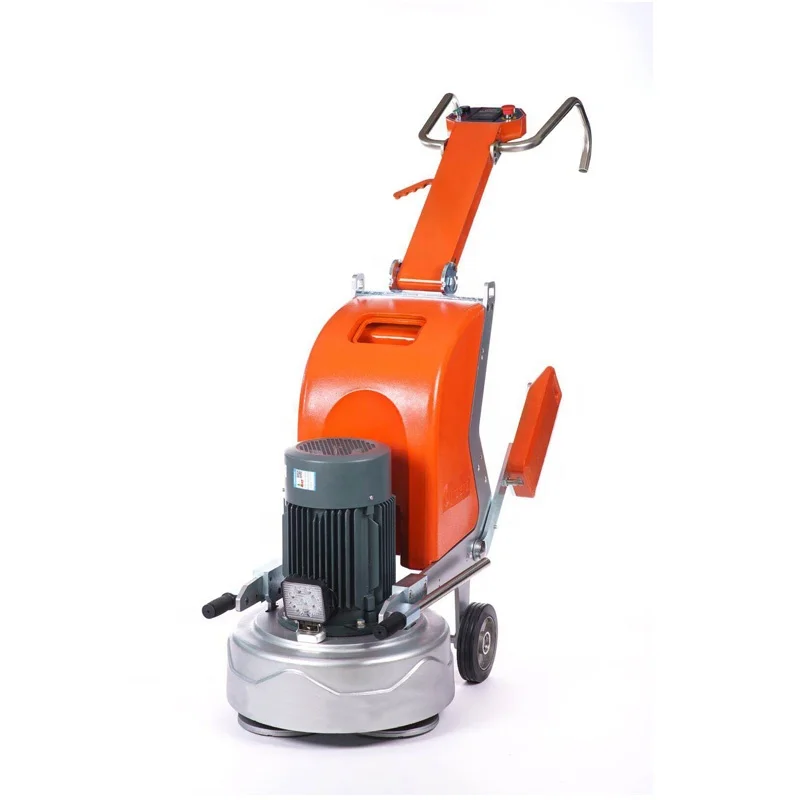

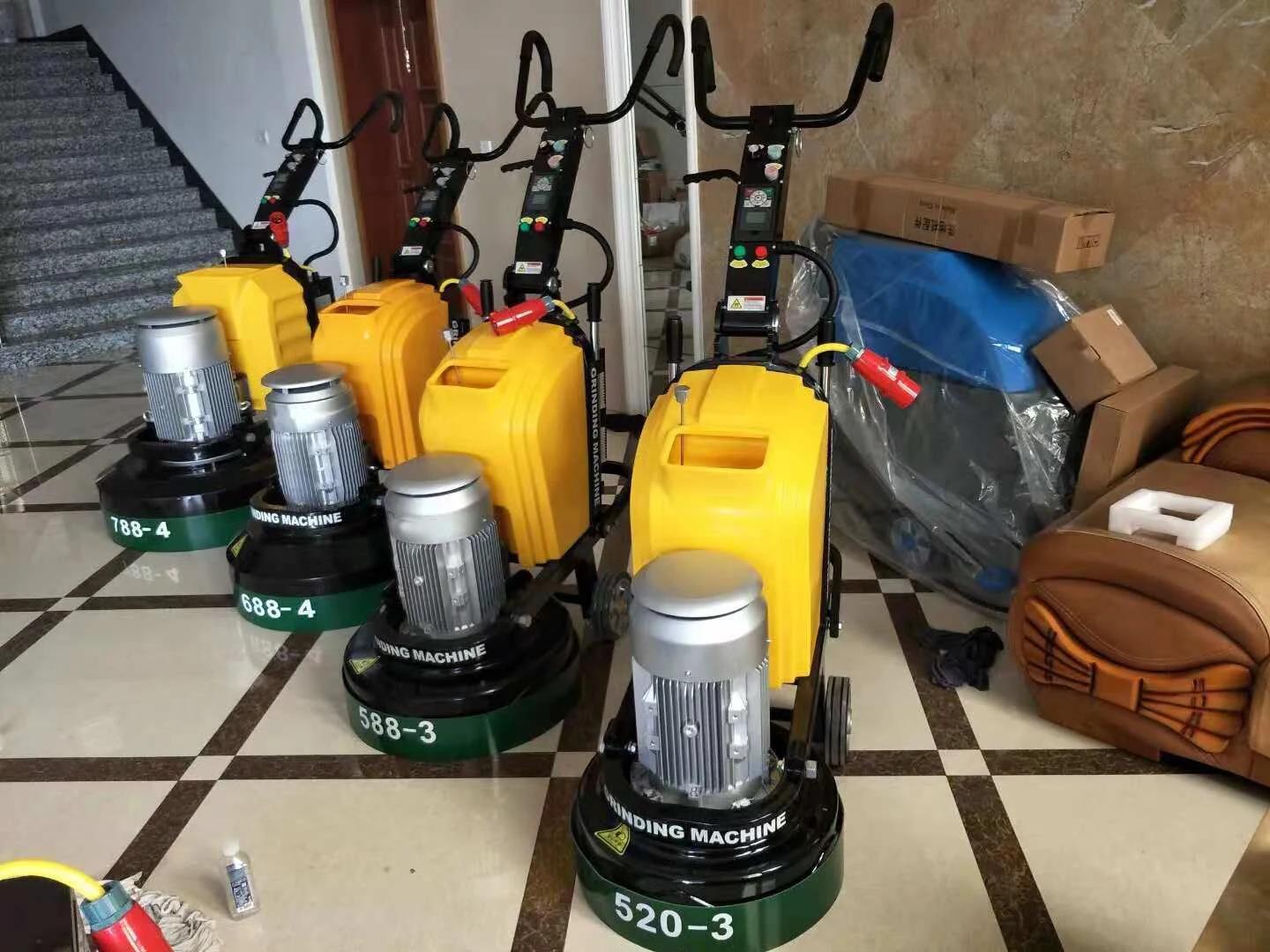

We have old style and new style planetary concrete floor grinder for you choose as below
It could be fixed with diamond blades or resin polishing pads, and could connect with dust vaccum machine
The planetary grinder concrete floor grinder polisher machine is with 3 plates, and could be fixed with 9 heads, stick with diamond metal pads or resin polishing pads.
If you are interest or need any information please contact annie freely
