Micro pressure vacuum pump with 0.5 bar

Supplier: Huaxin Instrument (Beijing) Co., Ltd.
Region: Beijing, China
Contact: Ms sales Huaxin
Price: $0.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Generated Pressure range:	-50-50 kPa;	Working media:	Air;
Adjust resolution:	1 pa(0.01mbar);	Output interface connection:	M20X1.5F, 1/2'' NPT F, 1/4'' NPT F;
Output part:	stainless steel;	Port:	Beijing, Tianjin, Shanghai;
Supply Ability:	100 Piece/Pieces per Month calibration instruments for Lab;	Packaging Detail:	standard carton package with foam;
Brand Name:	Sino instrument;	Weight:	2.55kg;
Body:	transparent plexiglass;	Place of Origin:	Beijing China (Mainland);
Model Number:	HS700;	keywords:	Pneumatic calibration pump;
Seals:	Buna-N;	Delivery Detail:	7 working days;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Dimensions:	260L180W60H (mm);

Product Description

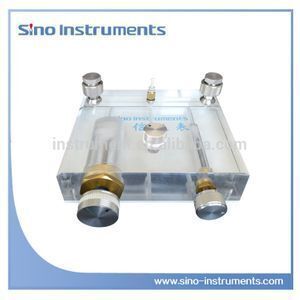

Micro pressure vacuum pump is made from high quality and transparent plexiglass material. The operation of piston inside can be seen clearly. The whole structure is more intuitive and compact. This instrument is specially designed to generate micro pressure from vacuum to 50kPa. The F-adjust valve could accomplish 1Pa (0.01mbar) pressure resolution.

HS700 is a very stable Mirco Pressure Calibrator. The design of relieve valve makes the system return to zero pressure quickly. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. The differential port also may connect gauges under test by hose. It widely calibrates micro pressure instruments in field and laboratory.

Specifications:

Model	HS700 Micro pressure calibration pump
generate pressure range	(-50~50)kPa
Working media	Air
Adjust resolution	1Pa(0.01mbar)
Material	Body:transparent plexiglass Output part:stainless steel Seals:Buna-N
Output interface connection	M20×1.5Female Differential port for connect gauges under test by hose
Weight	2.55KGS
Dimensions	260L×180W×60H (mm)

Detailed Images

Company Information

HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc.

With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering field. Based on our excellent performance, we have joined in setting industry standard for product safety, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed.

HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.

We sincerely hope to work with worldwide customers and create a better future together!
