HS703 huaxin factory supply pneumatic pressure gauge comparator

Supplier: Huaxin Instrument (Beijing) Co., Ltd.
Region: Beijing, China
Contact: Ms sales Huaxin
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	HS703;	Name:	HS703 huaxin factory supply pneumatic pressure gauge comparator;
Packaging Detail:	standard package;	Package Preview:	;
Adjust resolution:	0.1mbar;	pressure range:	(-0.95~ 60) bar;
Supply Ability:	300 Piece/Pieces per Month HS703 huaxin factory supply pneumatic pressure gauge comparator;	Size:	286L198W140H (mm);
Place of Origin:	Beijing China;	Working place:	Laboratory&Field;
Material:	Stainless steel /Aluminium;	Port:	beijing port;
Type:	Pneumatic;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Brand Name:	SINO INTSTRUMENTS;	Connector:	M20X1.5;
Medium:	Air;	WEIGHT:	2.6KG;

HS703 huaxin factory supply pneumatic pressure gauge comparator

Description

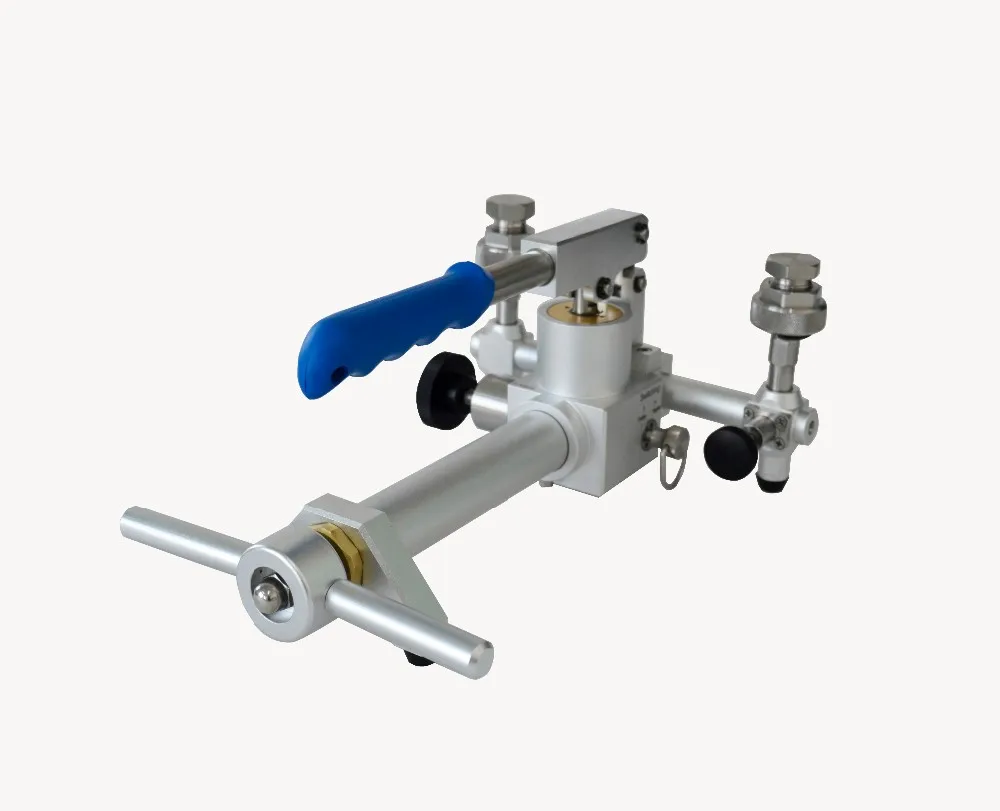

HS703 huaxin factory supply pneumatic pressure gauge comparator is made up of lead screw; relieve valve, reversing valve, and output interface.

Functions

HS703 huaxin factory supply pneumatic pressure gauge comparator can supply pressure for calibrating pressure gauges, Such as pressure (differential pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.

HS703 huaxin factory supply pneumatic pressure gauge comparator is portable structure and designed to generate pressure from vacuum to 60bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Especially the lever lead screw design makes user operate in economize labor. the design of reverse valve makes the switch of vacuum and positive pressure more smooth. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.

Technical Specification

Pressure range	(-0.95~ 60) bar
Accuracy	0.05% F.S
Pressure-transmitting media	air
Output interface	M20×1.5 Female
Overall Dimensions	325×210×170mm
Weight	2.6Kg
