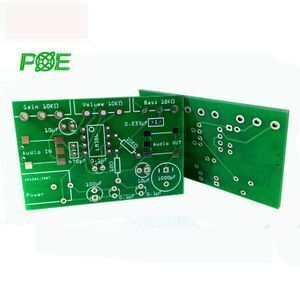

China circuit boards,China printed circuit board,China pcb maker

Supplier: Shenzhen POE Precision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vicky Liang
Price: $0.25 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Min. Line Width:	0.1mm;	Minimun thickness:	10um;
Base Material:	FR4, HI-TG, FR06, Rogers, Taconic,Argon,Na;	Single package size:	15X10X0.16 cm;
Package Type:	Inner Vaccum Packing Outer Carton Box for China circuit boards;	Model Number:	PCB-1777;
Silkscreen:	white;	PCB standard:	IPC-A-610 D;
Board Thickness:	1.6mm;	Tolerance of Impedence Control:	5%;
Sample:	1PCS also welcome;	Min. Line Spacing:	0.1mm;
Min. Hole Size:	0.2mm;	Solder mask:	Green;
Certification:	ISO-9001,ISO-10041,UL, ROHS;	Single gross weight:	0.1 KG;
Number of Layers:	4-Layer;	Copper Thickness:	1oz;
Surface Finishing:	HASL/Immersion gold;	Place of Origin:	Guangdong China;
Selling Units:	Single item;	Package Preview:	https://sc01.alicdn.com/kf/H786ab784b31f440885a68557e3e3b362d.jpg_640x640.jpg;
Testing Service:	AOI;	OEM/ODM:	T-SOAR One-stop Service;
Brand Name:	POE;	Product name:	China circuit boards,China printed circuit board,China pcb maker;

China circuit boards,China printed circuit board,China pcb maker

POE provide one-stop pcb service for you: PCB Design,PCB EQ analysis, PCB Producing,100% PCB flying probe test (for sample) and E-test(mass production),Delivery, 1 year Warranty.

Factory Certificates

ISO9001:2008,ISO-14001,UL

product Certificates

UL ,RoHS

Soldering Standard

IPC-6102B

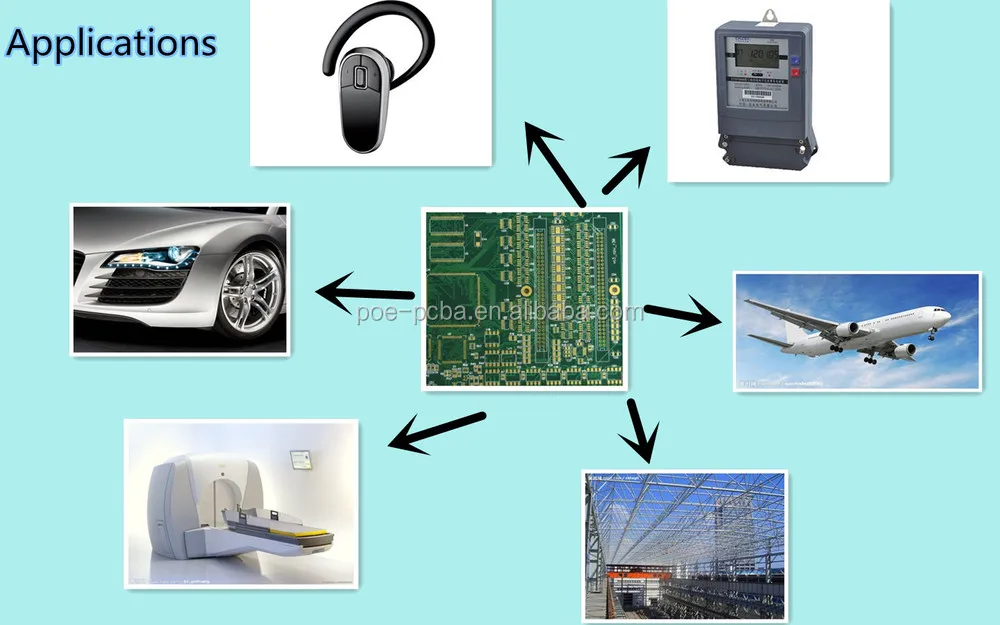

Our Product Application

industrial control equipments

Medical equipment

aerospace area

Automotive devices ect...

Why US?

POE focus on PCB and PCB assembly for 19 years, with full experience and Advanced Equipment.Also,We have Professional engineer team to serve for you!

1.POE PCB Capability

ITEM	Capability
Layers	1--28
Copper thickness	1--6OZ
Base material	FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06, Rogers, Taconic,Argon,Nalco,Isola and so on
Finished surface	conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP...
Soldermask	green, black, yellow, white, blue, red......
Finished board thickness	0.2-7.0mm
Board thickness tolerance	Board thickness≤1.0mm: +/-0.1mm 1 Board thickness>2.0mm: +/-8%

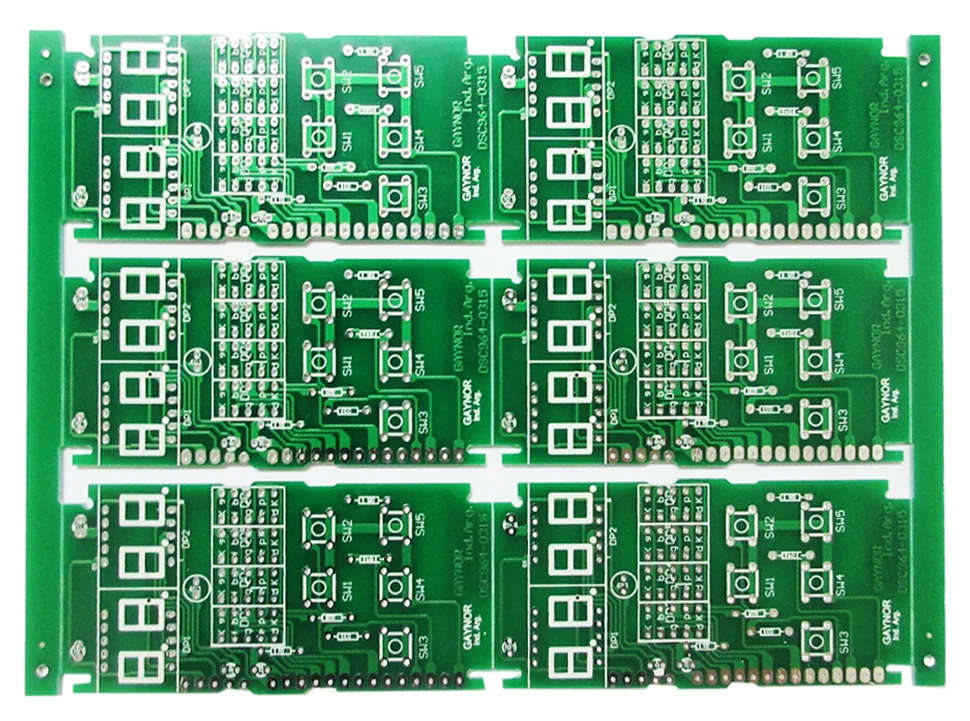

2.PCB Board

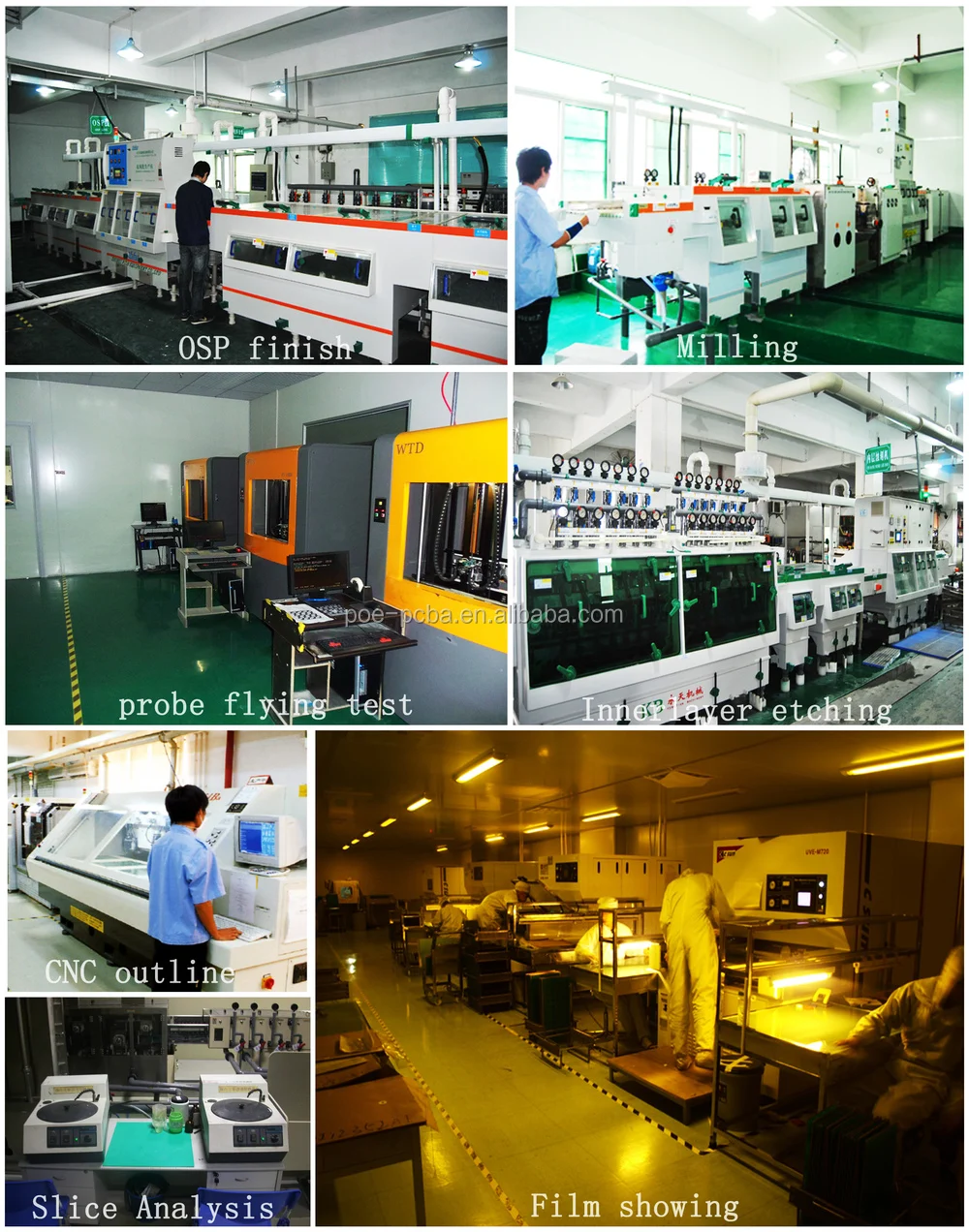

3. PCB Factory

4.PCB Capability

ITEM	Capability
Layers	1--28
Copper thickness	1--6OZ
Base material	FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06, Rogers, Taconic,Argon,Nalco,Isola and so on
Finished surface	conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP...
Soldermask	green, black, yellow, white, blue, red......
Finished board thickness	0.2-7.0mm
Board thickness tolerance	Board thickness≤1.0mm: +/-0.1mm 1 Board thickness>2.0mm: +/-8%

5.Lead Time

Layer	Quick Turn/Usual Time	Mass production
2 Layer	24hours/ 4-5days	8-10days
4 layer	48hours/ 6-7days	10-12days
6 layer	72hours/ 7-8days	12-14days
8 layer	72hours/ 8-10days	16-18days
10 layer	96hours/ 12-14days	18-20days
......	......	......

6.POE Exhibition

6.Package and Delivery

7.Payment Term

T/T Western Union L/C,CAD,D/P,O/A all accepted

Q1.What do we need to quote ?

1.Gerber file(Your gerber file is safe here,)

2.Quantity

3.Technical requiremet.

---------------------------------------------------------------------------------------------------

Q2.Will you have Function circuit testing?

Yes! we provide Function Circuit Testing as long as you provide us the testing methods.

-------------------------------------------------------------------------------------------------------------------

Q3.Can you provide professional advice on pcb gerber file?

Yes! We have professioabl engineer team to check your file and have EQ analysis to find technical issue and will contact to solve the problem.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Q4.Are my file safe?

Yes! Your file is totoally safe here. we protect our customers intellectual property!
