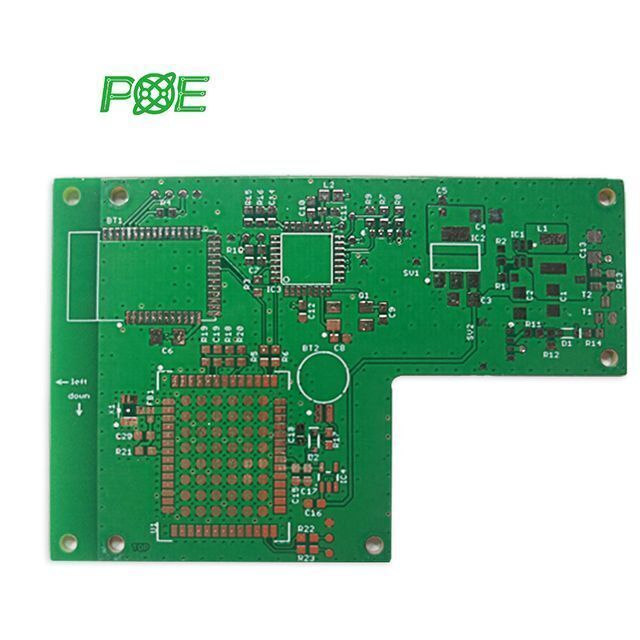

OEM PCBA blank printed circuit board multilayer pcb assembly

Supplier: Shenzhen POE Precision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vicky Liang
Price: $0.50 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Min. Line Width:	3.5/4mil;
Solder mask color:	Blue.green.red.black.white.etc;	Max PCB size:	510x460mm;
Testing Service:	100%;	Model Number:	POE-customized;
Service:	One-step Service;	Board Thickness:	1.6mm;
Brand Name:	POE;	Min BGA ball pitch:	0.4mm;
Packaging Detail:	Vacuum package for bare PCB and ESD package for PCBA Printed Circuit Board Factory FPC Board PCBA Companies PCBA Assembly;	Layer:	1-24layers;
Port:	Shenzhen;	Min. Hole Size:	0.15mm;
Component max height:	25mm;	Supply Ability:	50000 Piece/Pieces per Week;
Surface Finishing:	Lead-free HASL;	Application:	Electronics Device;
Min lead pitch:	0.3mm;	Component size:	0201-150mm;
Copper Thickness:	1oz;	Base Material:	FR4;
Package Preview:	;	Min. Line Spacing:	3.5/4mil;
Place of Origin:	shenzhen;

Company Capability
Layers	1-22 layers
Copper Thickness	0.5-6OZ
Material	FR4(Shengyi China, ITEQ, KB A+, HZ), HI-TG, FR06, Rogers, Taconic, Argon, Nalco, Isola and so on
Solder Mask	green, yellow, white, blue, black, red
Finished Surface	conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP...
Silkscreen color	white, black
Products Type	HF(High-Frequency)&(Radio Frenquency)board, impendance controlled board, HDI board, BGA&Fine pitch board
Minimum line width/gap	3.5/4mil(laser drill)
Minimum hole size	0.15mm(mechanical drill)/4mil(laser drill)
Minimum Annlar Ring	4mil
Max Copper thickness	6OZ
Min Solder Mask Bridge	0.08mm
Plugging Vias capability	0.2-0.8mm

PCB Board we have produced are mainly used in industrial control, medical treatment, automobile area ,LED lighting, communication ,aviation and so on. All PCBs are ISO9001, ROHS, UL certificated and meet the international IPC standard.

DHI PCB	HDI PCB Boards contain blind and/or buried vias and often contain microvias of 4mil or less in diameter. They have a higher circuitry density than traditional circuit boards.
High TG PCB	The general TG plate is more than 130 degrees, the medium TG is generally greater than 150 degrees, and the medium TG is more than 170 degrees.
High Frequency PCB	RO4003C, RO4350B, RO3003, Tachic RF-35 ISOLA FR-406 in the range from 500MHz to 2GHz, products are applied to power devider, radar, satellite system, mobile phone reception base station and so on.
Carbon Ink PCB	As carbon ink pcb has very good resistance value that will help supply good conductivity. Carbon ink pcb is widely used in automotive filed, medical electronics, communication equipment and so on.
Flexible PCB	Polyimide(sometimes abbreviated PI)is a polymer of imide monomers which is one of the best synthetic organic polymers. Because of good heat resistance, mechanical strength and insulative properties polyimide material is most commonly used in the flexible printed circuit boards.
Thick Copper PCB	Thick copper PCBs or heavy copper PCBs are characterised by structures with copper thicknesses more than 70um. These PCBs are used for large(high) current out puts and for optimisation of the thermal management. The thick copper allows large PCB-cross-sections for high current loads and encourages heat dissipation.

POE has the capability to manufacture pcb ranging from basic single sided boards up to twenty-two layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components sourcing and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 1996: to provide the best and fastest service for the continuous innovation of electronic technology. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements– from front end engineering through to in time deliveries.

PCB

layer	Prototype			Mass productions (above 30 m2 )
layer		quick turn	unual time	Mass productions (above 30 m2 )
2	24 hours	3-4 days	8-10 days
4	48 hours	5-6days	12-14 days
6	72 hours	6-8 days	14-16 days
8	72 hours	8-10 days	16-18 days
.....	.....	.....	.....

PCB Assembly

Order Conditions	Standard Delivery Date	The fastest Delivery Date
Prototype (<20 pcs)	2 days	8 hours
Small Volum (20-100 pcs)	3 days	12 hours
Medium Volum(100-1000 pcs)	6 days	24 hours
Mass productions (>1000 pcs)	Depends on BOM	Depends on BOM

Q1.What is needed for PCB PCBA quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness and so on)
PCBA: PCB information, BOM, (Testing documents)

Q2. What file formats do you accept for PCB PCBA production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?
A: Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties.

Q4. MOQ?
A: There is no MOQ in POE. We are able to handle small as well as large volume production with flexibility.

Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
