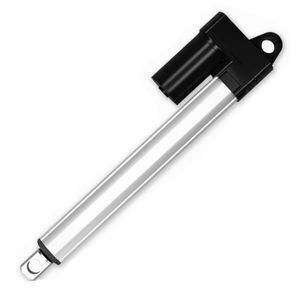

Tomuu 6000N force linear actuator for heavy industry and solar tracker Application 12V/24V/36V/48V

Click here to contact

Product details

Dutycycle:	10%;	Speed(RPM):	60667325335;
Certification:	CCC,CE,ROHS,UL;	Place of Origin:	China;
Color:	Black;	Rated Voltage:	24vdc;
Protect Feature:	Waterproof;	Port:	Shenzhen;
Efficiency:	IE 1;	Continuous Current(A):	60667325335;
Torque:	Requests;	Supply Ability:	10000 Set/Sets per Month;
Construction:	Permanent Magnet;	Waterproof and dustproof:	IP65;

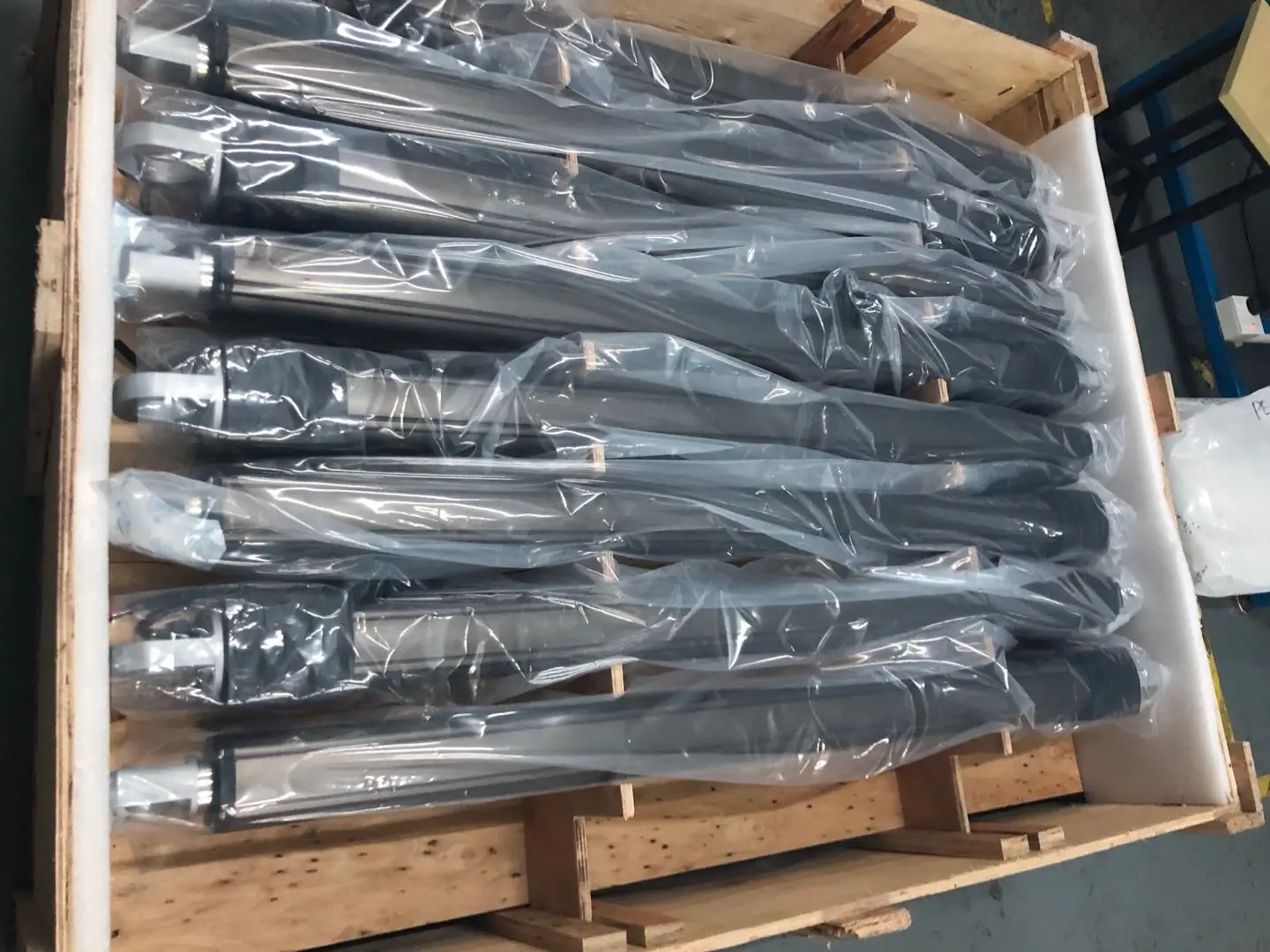

Packaging Detail:	Standard Exported Carton Box with Pearl Wool or EPE.;	Stroke:	300~1000mm;
Brand Name:	TOMUU;	Commutation:	Brush;
Model Number:	U10L;	Type:	Gear Motor;
Payment Terms:	T/T,Western Union;	Static load:	Static load;
Usage:	solor tracker;	Max. load:	12,000N;
Speed:	1.5mm/s @ no load;

Product Description

TOMUU U10L Linear Actuator Used For Solar Tracker Application

10L is light model of U10 designed for industrial application, especially suitable for light solar tracking system & heliostat.

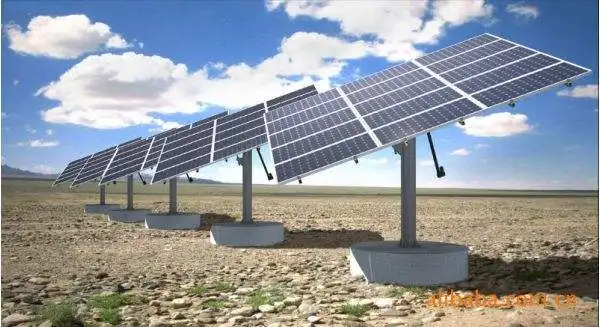

1. Main applications: Solar Tracker

2. Input voltage: 24V DC

3. Max. dynamic load: 12,000N

4. Max. static load: 30,000N

5. Max. current: 12 A @ 24V DC

6. Max. speed at no load: 1.5mm/sec

7. Max. speed at full load:1.4 mm/sec

8. Stroke: 300~1000 mm

9. Duty cycle: 10% or Max. 3 min continuous operation.

10. IP protection level: IP65

11. Color: Black

12. Ambient operating temperature: -40°C~+65°C

13. Steel extension tube

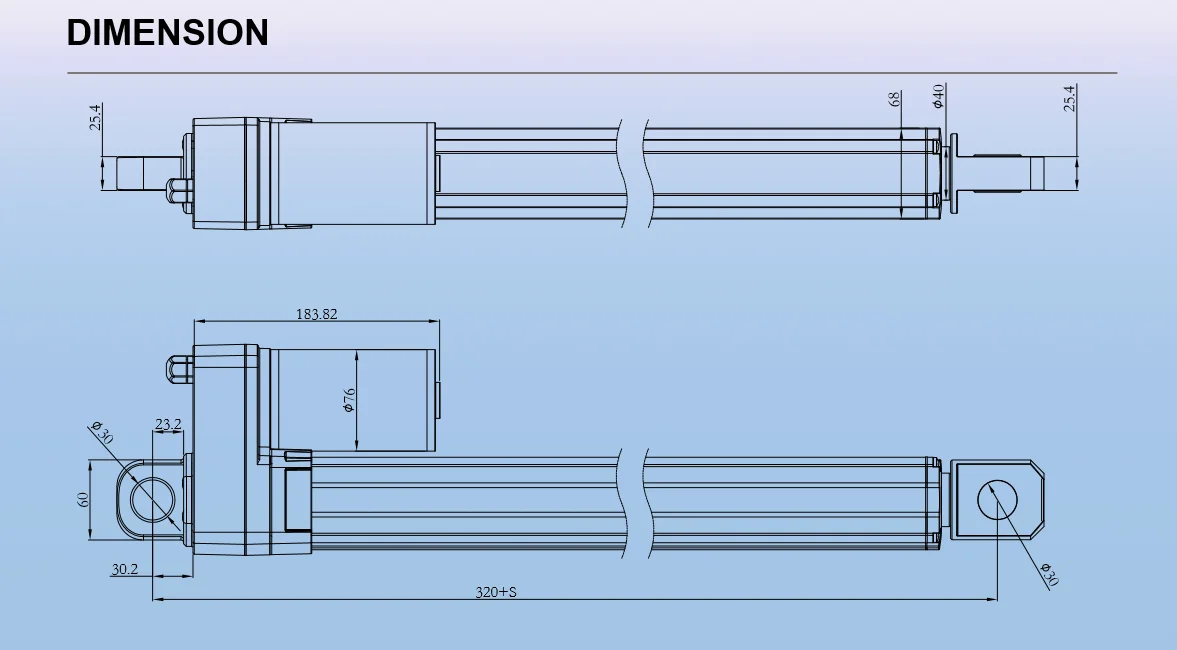

Standard Parameters
