RTD85L134 12000w hydrofoil motor 14Nm waterproof dc brushless motor ip68

Supplier: Hangzhou Reacher Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sabrina Zhang
Price: $390.00 / >=4 pieces
Min. Order: 4 pieces

Click here to contact

Product details

KV:	270KV/330KV;	Type:	Micro Motor;
Packaging Detail:	one piece per box packing with foam protecting.;	Place of Origin:	Zhejiang China;
Brand Name:	Reacher/ OEM;	Supply Ability:	1000 Piece/Pieces per Month RTD85L134 12000w hydrofoil motor 14Nm waterproof dc brushless mo;
Max Power:	12000w/13000w;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Torque:	14Nm;	Speed(RPM):	16000rpm/16650rpm;
Motor Demension:	D85*L134mm;	Max RPM:	16000/16650RPM;
Peak Current (A):	350A/380A;	Protect Feature:	Waterproof;
Max Torque:	14Nm;	Port:	Shenzhen Port;
Model Number:	RTD85L134;	Working Voltage:	14S 60V;
Max Efficiency:	>86%;	No Load Current @8.4V:	4.5A/5.7A;
Construction:	Permanent Magnet;	Commutation:	Brushless;
Certification:	Equivalent to CE;	Efficiency:	IE 4;
Usage:	Boat,Car,Electric Bicycle,Home Appliance,RC Toy, Surfboard, Foil;	Continuous Current(A):	130A/150A;
Shaft Dimension:	D12*24mm;

RTD85L134 12000w hydrofoil motor 14Nm waterproof dc brushless motor ip68

Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.

Product Description

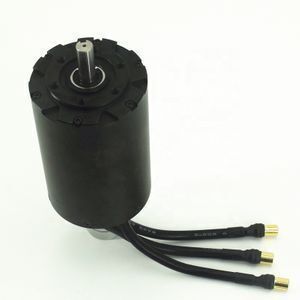

The Reacher Tech RTD85L134 Brushless DC Motor is designed for electric hydrofoil, surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.

Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.

The Reacher Tech RTD85L134 Brushless DC Motor is designed for electric hydrofoil, surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.

Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.

The Reacher Tech WC85134 Brushless DC Motor is designed for electric hydrofoil, surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.

Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.

RTD85 rotor was designed with segmentation and stagger magnets ,the segmentation design can reduce eddy current in the magnets,then make the rotor have less heat generation,stagger magnets design make the motor have more bigger start torque , smooth start,and smaller vibration, the ripple of the torque is more smaller,

The 85134 motor have three options , water-proof or water-cooling ,or combined two feature in one .

The RTD85L134 motor is water-proof Brushless Motor, the motor use water-proof structure between endbell and case, use sealed part between axle and front bell and between motor wires and endbell , so the motor have great water-proof function, can work in the deep water ,wet environment,dirt or dust condition .

WC85134 motor is water-cooling motor,it with an extra water cooling jacket , the water flow in the slot of the can for cooling the motor.

We can combine two feature in one motor also, then the motor will have water-proof and water-cooling feature .

Product Feature

1. 85134 motor rotor was designed with segmentation and stagger magnets ,the segmentation design can reduce eddy current in the magnets,then make the rotor have less heat generation,stagger magnets design make the motor have more bigger start torque , smooth start,and smaller vibration, the ripple of the torque is more smaller,.

2. High quality ball bearing ,very low noise and vibration.

3. The rotor have good dynamic balance,the vibration of the motor is very low .

4. The magnets have very high magnet strength and temperature limit can reach to 150° .

5. H-grade ,high temperature copper wires with high insulation .

6. High power density ,High torque, and high efficiency,High RPM .

7. Water-proof grad IP8 (For RTD85L134).

8. Water cooling feature (For WC85134)

9. The case use Light,high strength 7075 alloy with blaster and black anodize,can prevent from Oxidation and corrosion

10.H-grade ,high temperature copper wires with high insulation .

11.The project was designed to three version for different application,there are Water-proof feature, water-cooling feature or Combined Water-proof and water cooling .

RT Motor	RTD85L134-270	RTD85L134-330
Working Voltage	14S 60V	14S 60V
Max RPM	16000rmp	16650rmp
KV (RPM/V)	270KV	330KV
No Load Current @8.4V	4.5A	5.7A
Max working temperature	120 degree	120 degree
Max Power	12000W	13000W
Peak Current	350A	380A
Effeciency	86.0%	86.0%
Max Torque@60% Efficiency	14NM	13NM
Rated Power@80% Efficiency	7800W	8100W
Rated Torque@80% Efficiency	5.2NM	4.5NM
Stator Demension(mm)	D80*L70	D80*L70
Motor Demension(mm)	D85*L134	D85*L134
Shaft Demension(mm)	D12*L24	D12*L24
Wire Length (mm)	150±5MM	150±5MM
Connector	10mm golden plug	10mm golden plug
Net Weight	2.8Kg	2.8Kg
Service Life	10000h	10000h

OEM/ODM Order question

We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.

For the motors please let us know your requirements:

1. Please choose inrunner motor or outrunner motor you need.

2. Do you have motor diameter and length limited?

3. What working voltage you will use for this motor?

4. What's your expected rated power?

5. What's your expected RPM?

6. You battery pack can bear how high peak current?

7. You estimated yearly sales qtys?

8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.

9. Other requirements if you need, for example, wire length, connector types and so on.
