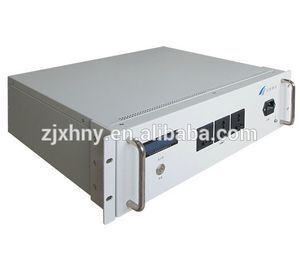

HW 48v 40ah mini ups with 5 hour backup lithium ion battery pack for 220v telecom battery-backcup use
-
Supplier: Zhejiang Xinghai Energy Techology Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms megan pi -
Price: $750.00 /piece -
Min. Order: 1 piece
Product details
| Phase: | Single Phase; | Application: | Telecommunications; |
| Standby time (full load): | 5 hour full power; | Switching Voltage(AC): | <170V; |
| Place of Origin: | Zhejiang China (Mainland); | Selling Units: | Single item; |
| Rated output power(W): | 500; | Model Number: | NE-48A50-NP; |
| The output voltage(AC): | 220±5%Vac; | Input voltage(AC): | 90-264VAC; |
| Delivery Detail: | 0 days after payment; | Size(W*D*H): | 440*360*134mm; |
| Single package size: | 55X55X45 cm; | Single gross weight: | 35 KG; |
| Type: | Standby; | Protection: | Overvoltage; |
| Output Voltage: | 220V+/-5%; | Relative humidity: | 20~90% No condensate; |
| Conversion time: | 10ms; | Brand Name: | Headway; |
| Nominal Capacity(Ah): | 40 Ah; | Weight: | 27kg; |
1.Product Specification
| Model | NE-48A50-NP |
| Rated Capacity(Ah) | 40 |
| Rated output power(W) | 500 |
| Input voltage(AC) | 90-264VAC |
| Input Frequency | 45-65HZ |
| The output voltage(AC) | 220±5%Vac |
| Output frequency | 50/60HZ±0.2% |
| Output waveform | Pure sine wave |
| true sine wave | |
| Switching Voltage(AC) | <170V |
| Conversion time | 10ms |
| Battery Type | Lithium iron phosphate battery |
| Standby time (full load) | 5 hours full power |
| Conversion efficiency | ≥85% |
| Operating temperature | -20℃~60℃ |
| Relative humidity | 20~90% No condensate |
| Size(W*D*H) | 440*360*134mm |
| Net weightN.W(kg)N.W(kg) | 27 |
2.DC Series of Power Supply
+
| Model | NE-48A10-NP | NE-48A20-NP | NE-48A50-NP |
| Rated Capacity(Ah) | 10 | 20 | 40 |
| Rated output power(W) | 500 | 500 | 500 |
| Input voltage(AC) | 90-264VAC | 90-264VAC | 90-264VAC |
| Input Frequency | 45-65HZ | 45-65HZ | 45-65HZ |
| The output voltage(AC) | 220±5%Vac | 220±5%Vac | 220±5%Vac |
| Output frequency | 50/60HZ±0.2% | 50/60HZ±0.2% | 50/60HZ±0.2% |
| Output waveform | Pure sine wave | Pure sine wave | Pure sine wave |
| true sine wave | true sine wave | true sine wave | |
| Switching Voltage(AC) | <170V | <170V | <170V |
| Conversion time | 10ms | 10ms | 10ms |
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Standby time (full load) | 1 hour full power | 2 hour full power | 4 hour full power |
| Conversion efficiency | ≥85% | ≥85% | ≥85% |
| Operating temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Relative humidity | 20~90% No condensate | 20~90% No condensate | 20~90% No condensate |
| Size(W*D*H) | 440*360*44.5mm | 440*360*89mm | 440*360*134mm |
| Net weightN.W(kg)N.W(kg) | 10 | 15 | 27 |
3.Related Products
4.Cerfifications
