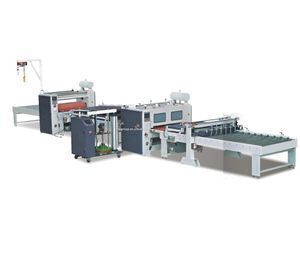

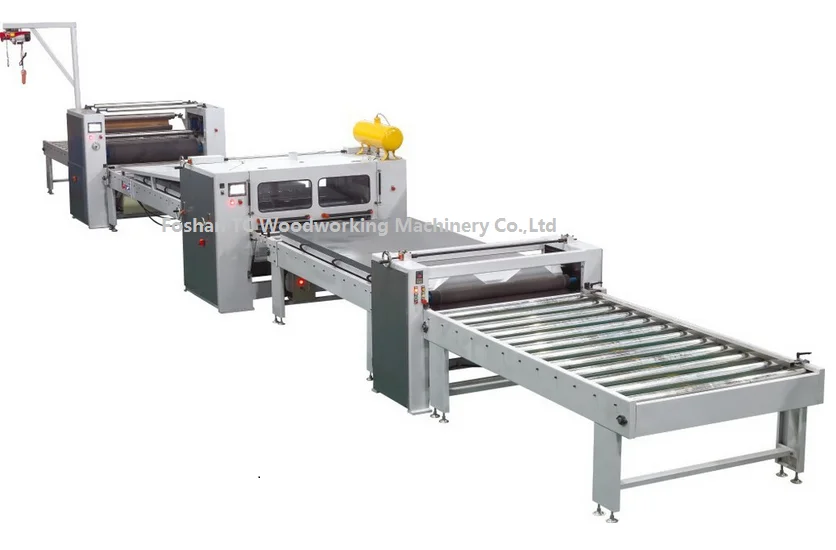

Polyurethanes adhesives pur laminating machine manufacturer

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Single gross weight:6,800 KG;
Brand Name:TC Machinery & Electronic;Place of Origin:Foshan, China;
Dimension(L*W*H):16800x2200x2200mm;Applicable Industries:furniture, door, decoration panels;
Showroom Location:None;Warranty:1 year;
Condition:New;Power(W):around 75kws;
Key Selling Points:high quality, easy operation;Local Service Location:Canada,Philippines,Saudi Arabia,Pakistan,India,Mexico,Russia,Thailand,South Korea,Chile,South Africa,Kazakhstan,Uzbekistan;
After Warranty Service:Video technical support,Online support,Field maintenance and repair service;Single package size:17X2.2X2.2 cm;
After-sales Service Provided:Field installation, commissioning and training;Package Type:1. Packed by foam and shrink film 2. Wooden case will need more cost;
Weight:6800kgs;Voltage:As request;
Selling Units:Single item;Certification:CE;



High gloss laminating.Manufacture of lightboards,composite boards and insulation elements.

Features

Infeed transport track with cleaning and preheating unit.

Glue spreading machine for hot melt with thermal oil heated applying and doctor rollers(up to 160℃)

Automatic glue supply by a 200L drum melting device.

Lay-up belt with lay-up rack for the feed of material in longitudinal and transverse decoration.

Roller press with uncoiling station for material from the roll.

Outfeed transport.



Covering Material: HPL, high gloss film, acrylic sheets, pvc, paper, pp, pet film, etc

Glue: PUR hot glue

Base Material: MDF, plywood, aluminum, chip board, PVC, WPC, gypsum board, foam boards,etc.









control system:  1350mm

Working Height: 90+20mm

Feed Speed: 5-20m/min

Passing Height: 3-100mm

Operating Side: right hand;on request left hand

Feed Of Boards: on fix edge on the right

Machine Weight: 6800kgs



Substrate:

Width 200-1250mm

Length 500-2450mm

Thickness 3-100mm



E-mail:cherry.lin(at)tclaminating.com

multifunction woodworking machine foshan industrial laminating machine for pvc CPL Melamine Paper

foshan woodworking machinery pur hot melt glue laminating machine for Melamine Paper

otherwoodworkingmachinery pur laminating machine for cpl foil and all other roll foils







Foshan Tongchi Machinery & Electronic Co., Ltd, established since 2006, who is the professional manufacturer of woodworking machines and with the occupying area of around 30,000 square meters.



OUR PRODUCT RANGES:

Profile Wrapping Machines( Pur Hot Glue, Cold Glue, Eva Hot Glue)

PVC Paper Wooden board Lamnating Machine ( Cold Glue)

Acrylic Sheet/High Glossy Film/HPL/ PVC/Paper Laminating Machine( Pur hot glue)

Vacuum Membrane Press Machine

Slitting and Rewinding Machines

Glue Spreader Machines

Other Machines and machine accessories for profile/laminating machines.





The main exported markets are Southeast Asia, South Africa, North Africa , Middle East, South America, domestic market  and some other Europe countries.



Under the great support of the regular and new clients, we constantly are awarded the “Excellent Supplier of Woodworking Laminating Machines”



After decade’s effort, we are now the largest specialist of woodworking laminating machines in China. We could customize the machines by constantly studying and creating the advanced technologies at home and abroad .
