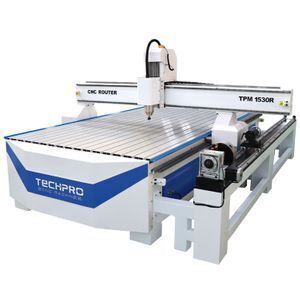

China 1325 rotary cnc router 4 axis cnc router with good price

Product details
Model:TPM1325;Spindle Motor Power(kW):3.2-7.5;
Working Table Size(mm):1300×2500;Range of Spindle Speed(r.p.m):0 - 24000;
Machine Type:CNC Router;Travel (X Axis)(mm):1300 mm;
No. of Spindles:Single;Repeatability (X/Y/Z) (mm):0.01 mm;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Power(W):10kw;
Port:Qingdao;Dimension(L*W*H):1300*2500*200mm;
Showroom Location:Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Mexico,Russia,Spain,Morocco,UAE,Colombia,South Africa,Ukraine,Japan,Australia;Place of Origin:Shandong China;
Driving system:Leadshine Stepper driver;Condition:New;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Warranty:3 years;
Certification:CE FDA SGS;After-sales Service Provided:Field installation, commissioning and training;
Voltage:220V/380v/3phase;Key Selling Points:Long Service Life;
Local Service Location:Canada,United States,Italy,France,Germany,Spain;Compatible software:Artcam/Type3/CAD/Wentai;
Travel (Y Axis)(mm):2500 mm;Transmission:Helical Gear Rack;
Control system:Richauto-A18 Control System;Packaging Detail:Plywood package case;
Table Surface:Vaccum+T-slot Aluminum;Positioning Accuracy (mm):0.02 mm;
Product name:Cnc Router Wood Carving Machine;Weight (KG):1400;
Supply Ability:50 Set/Sets per Month;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:TECHPROCNC;Spindle:3.2KW water cooling Spindle;
CNC or Not:CNC;Inverter:Delta Inverter;
Product Description



Feature Of Machine

1.The metal cnc router machines’ body is strong, rigid, high precision, reliable and durable.

2. Imported high precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. cnc router using well-known  brands of water-cooled brushless spindle,  low noise,  strong cutting ability, to ensure the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy.
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.

7. Compatibility, compatible Type3/ Artcam/ Castmate/, and so on a variety of CAD/CAM design software.

Application

1.Metal-working industry:

Ideally suitable for Window-door & Curtain Wall

2. Decoration industry

Art model, wall art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate,electrical cabinets panels, sports equipment, and other wooden industrial products
3. Advertisement
Acrylic, double color plate, PVC, ABS board, aluminum plate, density board, artificial stone, organic glass, soft metals like aluminum and copper, cut matrix, character, signs, trademark etc.



Configuration:

ModelTPM1325-R
Working area1300*2500*200mm
Control systemDSP Richauto-A18 control system
Working Voltage380V or 220V /3phase
Spindle3.2kw Chinese water cooling spindle,
Spindle speed0-24000rpm
InverterDetal inverter
Motor and DriverLeadshine stepper motor and driver
Table surfaceT-slot and vacuum working table
StructureHeavy Duty 10mm Steel machine bed; 12mm Moving Steel  Gantry
Lubrication systemManual lubrication system
TransmissionX,Y axis: rack and pinion drive

Z axis: Taiwan TBI ball screw

X,Y axis: Taiwan Hiwin square guide rails with 25mm

Vacuum pump5.5kw vacuum pump(optional)
Control boxindependent box
SoftwareUG/Artcam/Ucancam
Optional Device









Optional

China HSD spindle
Taiwan Delta servo motor and driver
Oilless Vacuum pump or Air vacuum pump

Machine Parts:

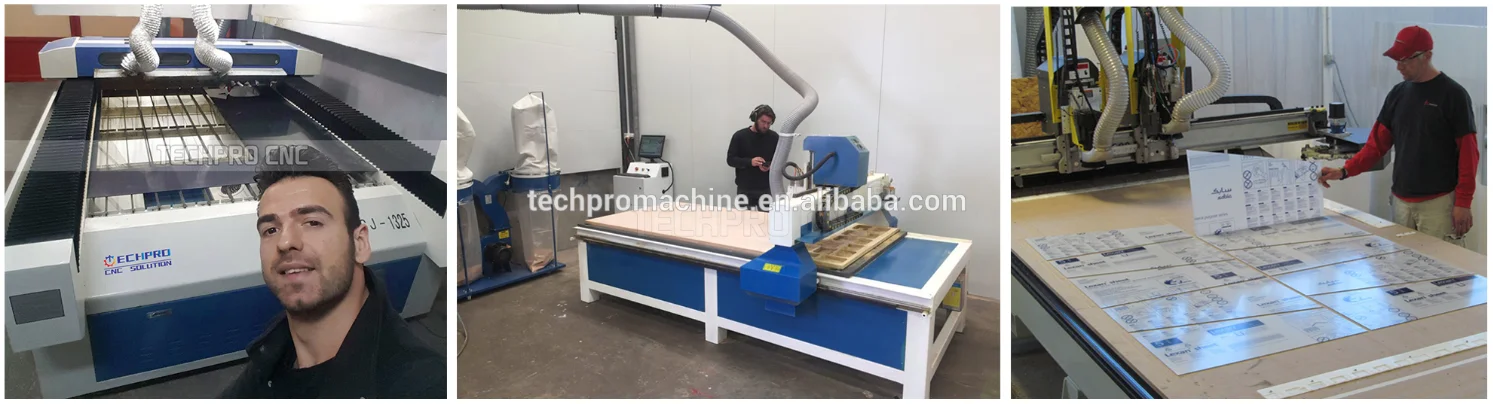

Machine Samples:

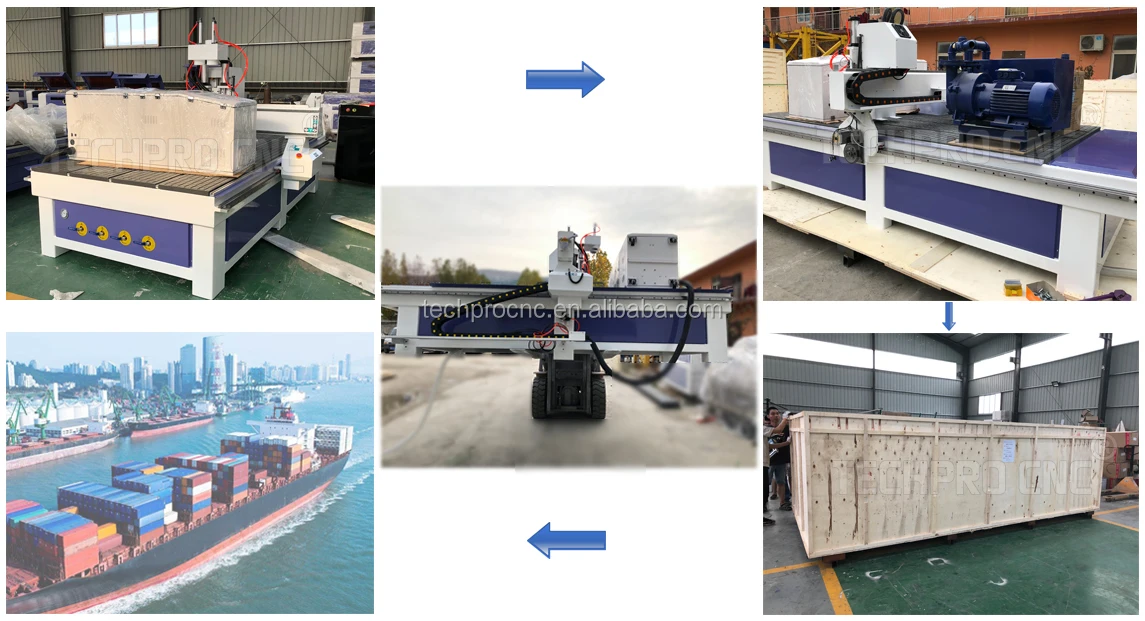

Packaging & Shipping

Packaging detail:

1).Outside package: Standard marine export plywood case.

2). Inner package: Stretchy film and plastic film for humidity.

3). Machine packing size:3240*2150*2120mm ,GW: 1400kg



Shipping detail:

Shipped in 20-25 working days after payment.

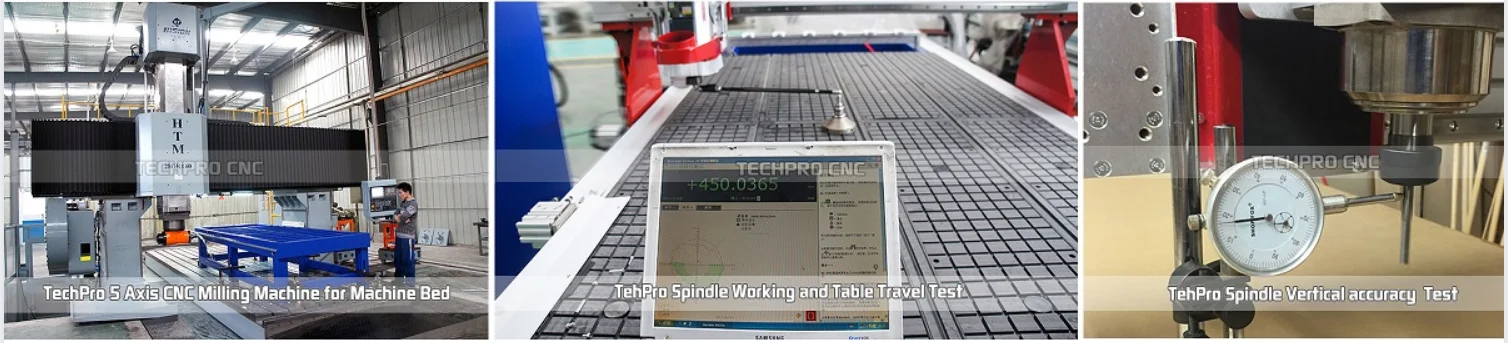

1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB

2) Some extra spare parts (Pipe,limit switches etc)

Our Services

1.) Warranty: 3 years on parts from date of shipping date, Life-time technical support.

2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, las er application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online

support by E-mail,Skype online contact software or door-to-door service.

5.) 3-5 days free machine training when visit our factory .
6.) International quality certificate: FDA,CE, ISO9001 SGS etc.

Company Information

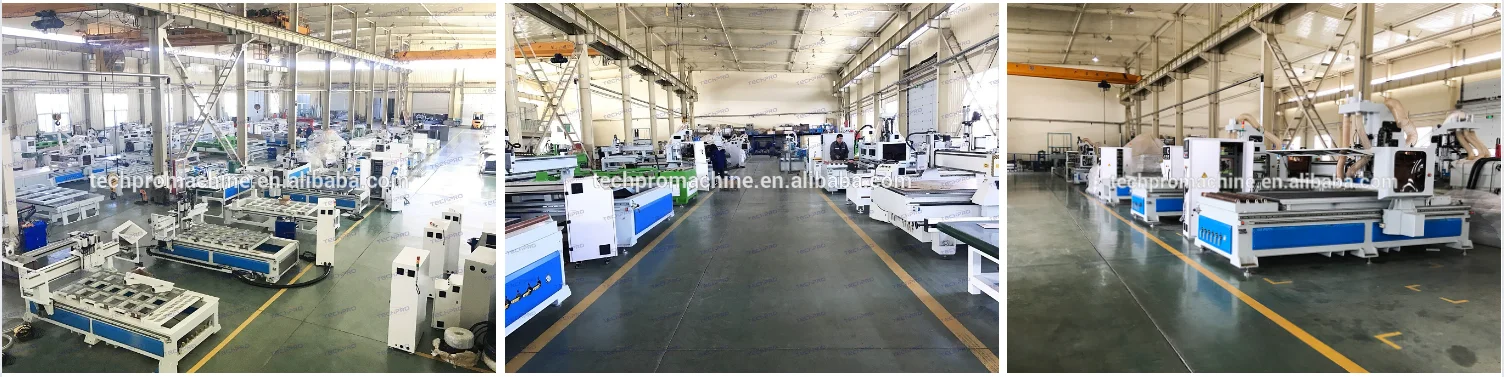

Jinan TechPro CNC Equipment Co., Ltd, Since 2007, it’s a high-tech enterprise producing CNC machine, focusing on the research and development  and sales of industrial CNC products, Located in Jinan city (the hometown of CNC Machinery in China) ,has been steadily developing more than 10 years.We enjoy the advantage of strong international competitiveness and is a reliable partner  for  your  long-term cooperation !
