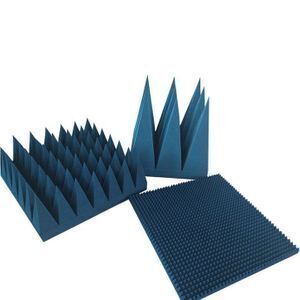

High absorption microwave absorber for rf shielding anechoic chamber
-
Supplier: Dalian Yingshi Microwave Absorption Material Co., Ltd. -
Region: Liaoning, China -
Contact: Ms Xin Gao -
Price: $137.00 /square meter -
Min. Order: 1 square meter
| Application: | RF Absortion; | Packaging Detail: | emi absorbier material The standard packing is in the carton box. The size of the carton according to the product's size and shape. We can provide customized product .; |
| Type: | foam microwave absorber; | Height: | 30mm-1000mm; |
| Color: | Blue or Customized; | 3dB Bandwidth: | microwave absorber; |
| size ( length, width): | 500*500 mm; | Place of Origin: | Liaoning China; |
| Package Type: | Carton packing; | Nominal Center Frequency: | RF absorber; |
| Model Number: | YFA-500; | Supply Ability: | 10000 Square Meter/Square Meters per Month; |
| Port: | Dalian; | Package: | Carton box; |
| Insertion Loss: | Microwave absorbing material; | Payment Terms: | L/C,T/T; |
| Certification: | SGS, IAF , ISO; | Brand Name: | YINGSHI; |
| Shape: | Pyramidal; | Material: | Foam; |
| Key Features: | Excellent absorption over a broad frequency range; | Product name: | microwave absorber; |
| Model | Thickness | Weight | Reflectivity (-db) perpendicular to incidence in a specific frequency range (GHz) | Sze | ||||||
| mm | Kg/m2 | 35 | 15 | 10 | 5 | 3 | 2 | 1 | mm | |
| YFA-30 | 30 | 0.55 | 40 | 35 | 30 | 20 | 17 | 10 | 6 | 500X500 |
| YFA-50 | 50 | 0.85 | 45 | 40 | 35 | 25 | 20 | 17 | 10 | 500X500 |
| YFA-70 | 70 | 1.1 | 45 | 40 | 35 | 30 | 25 | 20 | 13 | 500X500 |
| YFA-100 | 100 | 1.3 | 55 | 45 | 40 | 45 | 32 | 25 | 17 | 500X500 |
| YFA-200 | 200 | 2.6 | 40 | 40 | 42 | 45 | 55 | 35 | 30 | 500X500 |
| YFA-300 | 300 | 3.6 | 40 | 40 | 40 | 45 | 55 | 35 | 25 | 500500 |
| YFA-500 | 500 | 5 | 65 | 60 | 60 | 55 | 55 | 50 | 40 | 500X500 |
| YFA-700 | 700 | 9 | 55 | 55 | 50 | 60 | 60 | 55 | 45 | 500X250 |
| Model | Thickness | Weight | Reflectivity (-db) perpendicular to incidence in a specific frequency range (GHz) | Size | |||||
| mm | Kg/m2 | 10 | 5 | 3 | 2 | 1 | 0.5 | mm | |
| YFA-D -30 | 30 | 1.3 | 20 | 20 | 15 | 13 | 8 | 500×500 | |
| YFA-D -40 | 40 | 1.6 | 20 | 20 | 17 | 15 | 10 | 5 | 500×500 |
| YFA-D -60 | 60 | 2.4 | 20 | 20 | 20 | 17 | 13 | 8 | 500×500 |
| YFA-D -80 | 80 | 3.2 | 20 | 20 | 20 | 17 | 15 | 10 | 500×500 |
Applications
1.Broadband absorbers suitable for in-door measurements.
2.Below 100mm thickness, used for small shielding room
3.Above 100mm thickness, used for huge shielding room or dark room
4.It is available in other sizes and customer specified configurations upon request
5.Used in making microwave anechoic chambers for performing measurements like RCS,
antenna Measurements etc.
More information, contact us!
Dalian Yingshi Microwave Absorbing Material Co., Ltd. is the professional manufacturer of
microwave absorbing material .
We mainly provide rubber microwave absorbing material,foam microwave absorbing material,
resin microwave absorbing materials, inorganic materials, etc.
Our products are widely used in aerospace, aviation, military,electronic technology,
communicatioins, railways, ships and other fields.
We provide one-stop service for design,development and manufacture of microwave
absorbing material products.
More information, contact us!
1. Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
2. Q: How can I get a sample to check your quality?
A: After we know your requirement, if need,will send the sample to you.
3. Q: Can you do the design for us?
A: Yes. You can tell us your requirement, we can manufacture the products as
per your requirements.
4. Q: What's your terms of delivery?
A: We accept FOB, CIF, etc. You can choose the one which is the most
convenient or cost effective .
-
