Place of Origin: | Liaoning China; | Packaging Detail: | emi absorbier material The standard packing is in the carton box. The size of the carton according to the product's size and shape. We can provide customized product .; |
Certification: | SGS, IAF , ISO; | Single package size: | 52X55X10 cm; |
size ( length, width): | 500*500 mm; | Insertion Loss: | Microwave absorbing material; |
Type: | foam microwave absorber; | Nominal Center Frequency: | RF absorber; |
Key Features: | Excellent absorption over a broad frequency range; | Single gross weight: | 1.6 KG; |

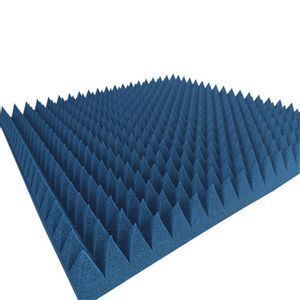

Shape: | Pyramidal; | Product name: | microwave absorber; |
Color: | Blue or Customized; | Height: | 30mm-1000mm; |
Selling Units: | Single item; | Package: | Carton box; |
Brand Name: | YINGSHI; | Package Preview: | ; |
3dB Bandwidth: | microwave absorber; | Application: | RF Absortion; |
Model Number: | YFA-30; | Material: | Foam; |
Model | Thickness | Weight | Reflectivity (-db) perpendicular to incidence in a specific frequency range (GHz) | Size | ||||||
mm | Kg/m2 | 35 | 15 | 10 | 5 | 3 | 2 | 1 | mm | |
YFA-30 | 30 | 1.1 | 40 | 35 | 30 | 20 | 17 | 10 | 6 | 500X500 |
YFA-50 | 50 | 1.8 | 45 | 40 | 35 | 25 | 20 | 17 | 10 | 500X500 |
YFA-70 | 70 | 2.5 | 45 | 40 | 35 | 30 | 25 | 20 | 13 | 500X500 |
YFA-100 | 100 | 3.3 | 55 | 45 | 40 | 45 | 32 | 25 | 17 | 500X500 |
YFA-200 | 200 | 6.3 | 40 | 40 | 42 | 45 | 55 | 35 | 30 | 500X500 |
YFA-300 | 300 | 9 | 40 | 40 | 40 | 45 | 55 | 35 | 25 | 500X500 |
YFA-500 | 500 | 15 | 65 | 60 | 60 | 55 | 55 | 50 | 40 | 500X500 |
YFA-700 | 700 | 21 | 55 | 55 | 50 | 60 | 60 | 55 | 45 | 500X250 |
Model | Thickness | Weight | Reflectivity (-db) perpendicular to incidence in a specific frequency range (GHz) | Size | |||||
mm | Kg/m2 | 10 | 5 | 3 | 2 | 1 | 0.5 | mm | |
YFA-D -30 | 30 | 1.3 | 20 | 20 | 15 | 13 | 8 | 500×500 | |
YFA-D -40 | 40 | 1.6 | 20 | 20 | 17 | 15 | 10 | 5 | 500×500 |
YFA-D -60 | 60 | 2.4 | 20 | 20 | 20 | 17 | 13 | 8 | 500×500 |
YFA-D -80 | 80 | 3.2 | 20 | 20 | 20 | 17 | 15 | 10 | 500×500 |
Applications
1.Broadband absorbers suitable for in-door measurements.
2.Below 100mm thickness, used for small shielding room
3.Above 100mm thickness, used for huge shielding room or dark room
4.It is available in other sizes and customer specified configurations upon request
5.Used in making microwave anechoic chambers for performing measurements like RCS,
antenna Measurements etc.
More information, contact us!
Dalian Yingshi Microwave Absorbing Material Co., Ltd. is the professional manufacturer of
microwave absorbing material .
We mainly provide rubber microwave absorbing material,foam microwave absorbing material,
resin microwave absorbing materials, inorganic materials, etc.
Our products are widely used in aerospace, aviation, military,electronic technology,
communicatioins, railways, ships and other fields.
We provide one-stop service for design,development and manufacture of microwave
absorbing material products.
