IEC 62196 32A EV Charger Mode 3 Type 2 cable Female To Male plugs For EV Charging

Product details
Key Words:32a ev charger;Single gross weight:2.5 KG;
Plug Standard:IEC 62196-2 Male to Female;Brand Name:BESEN;
Place of Origin:Jiangsu China;Protection Grade:IP66;
OEM Service:Yes;Cable length:3m, 5m, 7m;
Charging Mode:Mode 3 ev charging cable;Model Number:BS-CHC003;
Certifications:CE, TUV(Rheinland);Package Preview:https://sc01.alicdn.com/kf/HLB1m27iLNjaK1RjSZFAq6zdLFXar.jpg_640x640.jpg;
Package Type:Exquisite carton for iec 62196 ev charger type 1 female to type 2 male;Selling Units:Single item;
Insulation resistance:1000MΩ;Cable Standard:Type 2 to Type 2 connector;
Single package size:40X38X8 cm;Cable Color:Black / Orange;

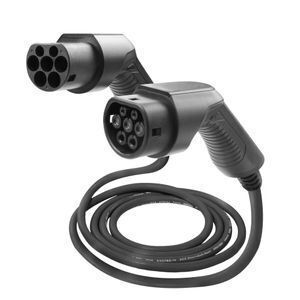

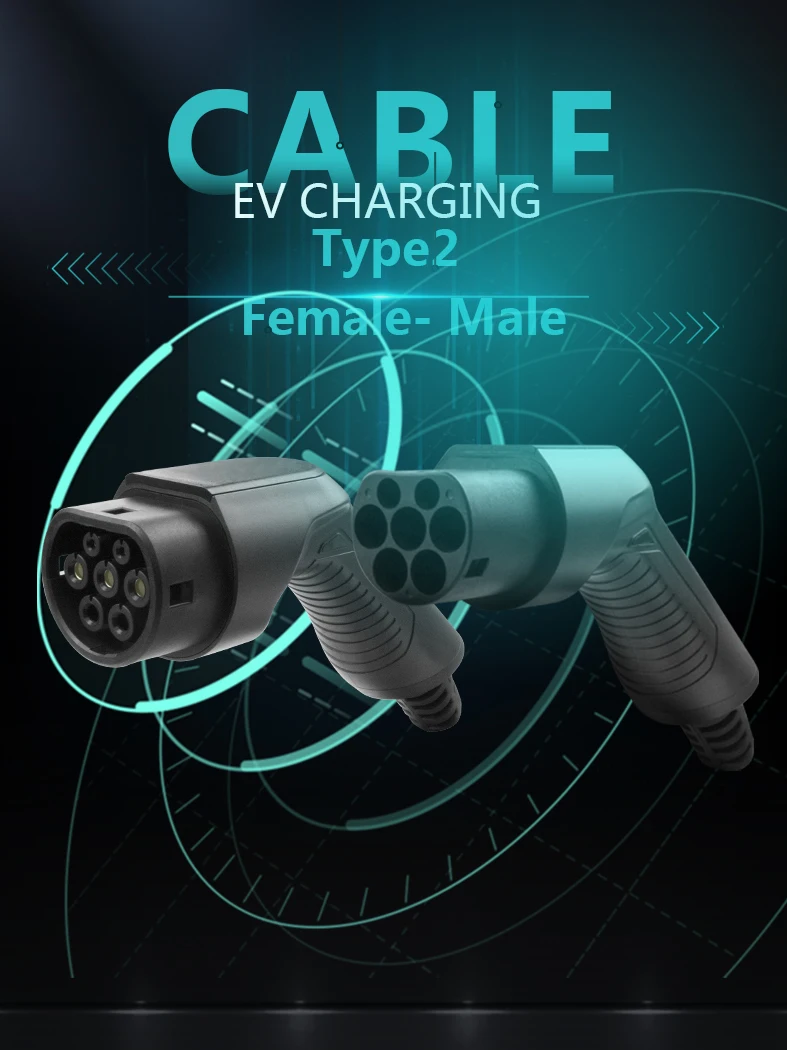

IEC 62196 32A EV Charger Mode 3 Type 2 cable Female To Male plugs For EV Charging



32A EV Charger

Cord lenght: 3m, 5m or customized

Meet IEC 62196-2 (Mennekes, Type 2) EU European standard

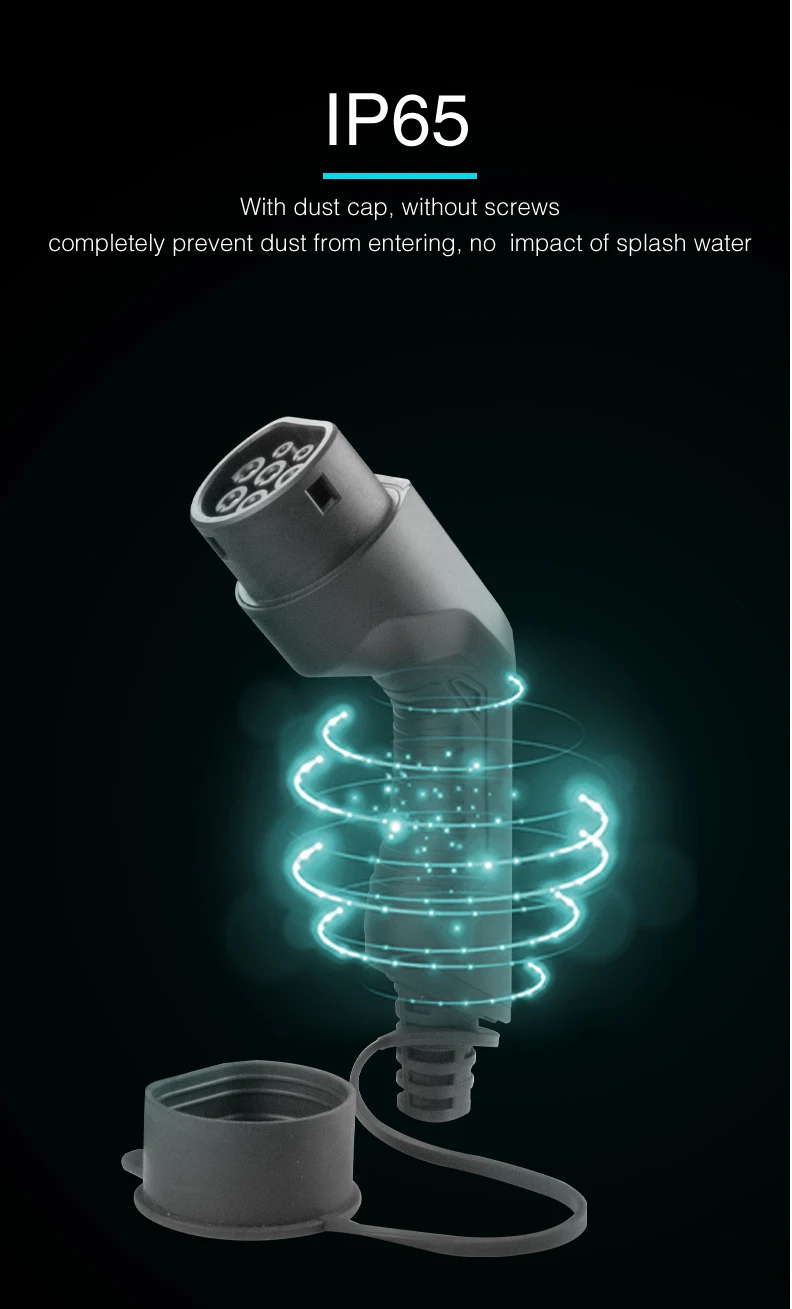

Nice shape and easy to use, protection class IP6(in mated conditions)





Apply to Vehicle



for Audi A3 e-Tron,for BMW i3,for BMW i8,for Chevrolet Spark,for Mercedes B Class E-Celi,for Mercedes S500 PHEV,for Mercedes SLS EV,for Mercedes Vito E-Cell Van,for Porsche Panamera S PHEV,for Renault Zoe,for Renault Zoe 2013,for Volkswagen e-Up,for Volkswagen e-Golf,for Volvo V60 PHEV...







Product Description





Parameters (32A EV Charger   )

Model: BS-CHC003

Reted current: 32A, 1 Phase

Working voltage: 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved



Charging Cable Spec

TUV 3*6.0mm2+2*0.5mm2

Cord lenght: 3m, 5m or customized

Orange or Black



Materials

Shell Material: Thermo Plastic

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

 32A EV Charger

Insert Arrangements & Functional Definition of iec62196 electric vehicle Mode 3 TYPE 2 plug :

Mark

Functional defination

1-(L1)

AC power

2-(L2)



3-(L3)



4-(N)

Netural

5-(PE)

PE

6-(CP)

Control confirmation

7-(PP)

Connection confirmation

.

Modle Selection & The Standard Wiring of iec62196 electric vehicle Mode 3 TYPE 2 plug :

+

Model

Number of inserts

Cable Spec.

Color

Remark

BS-CHC001

16A Type2-Type2

7

3*2.5mm2+2*0.5mm2



Black orOrange

The length of the cable can be customized

BS-CHC003

32A Type2- Type2

7

5*6.0mm2+2*0.5mm2

.

Drawing Interpretation of iec62196 electric vehicle Mode 3 TYPE 2 plug :

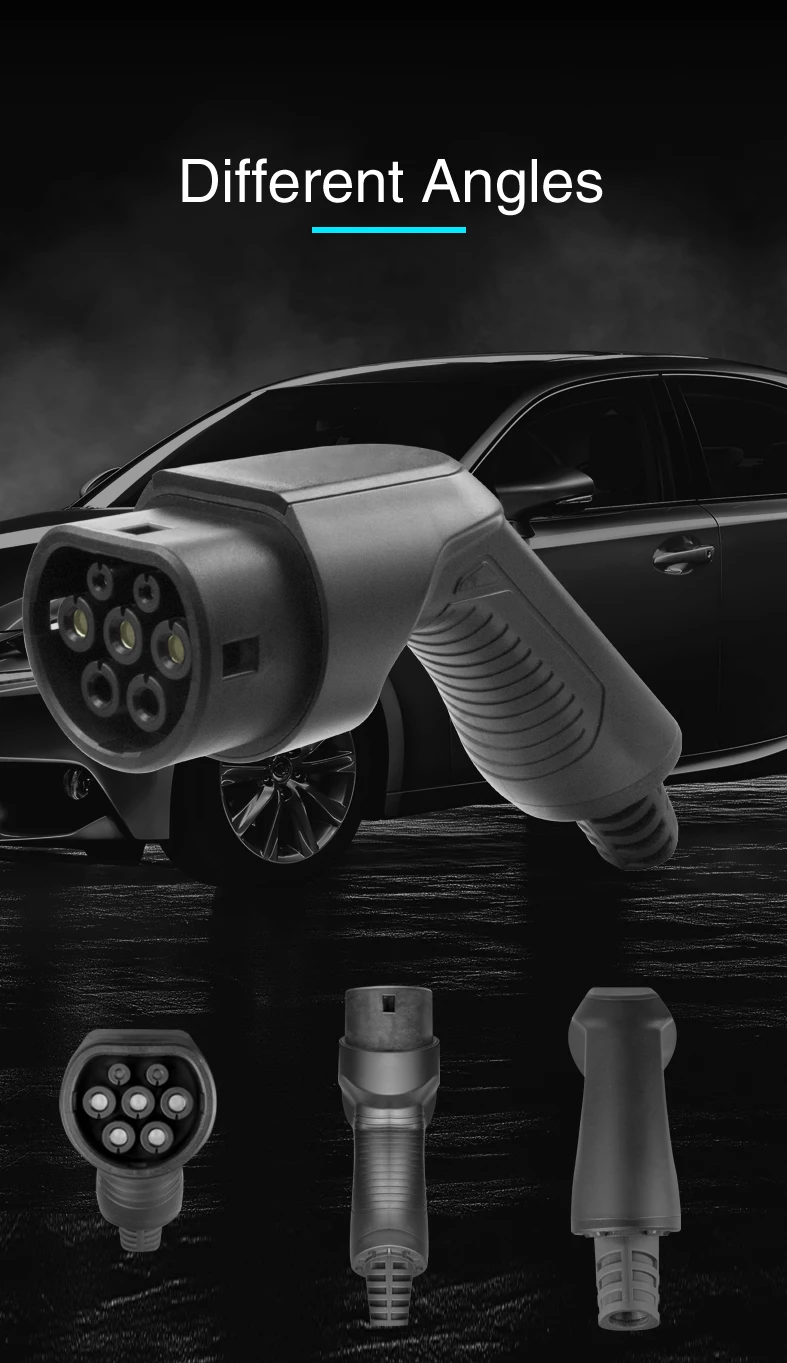

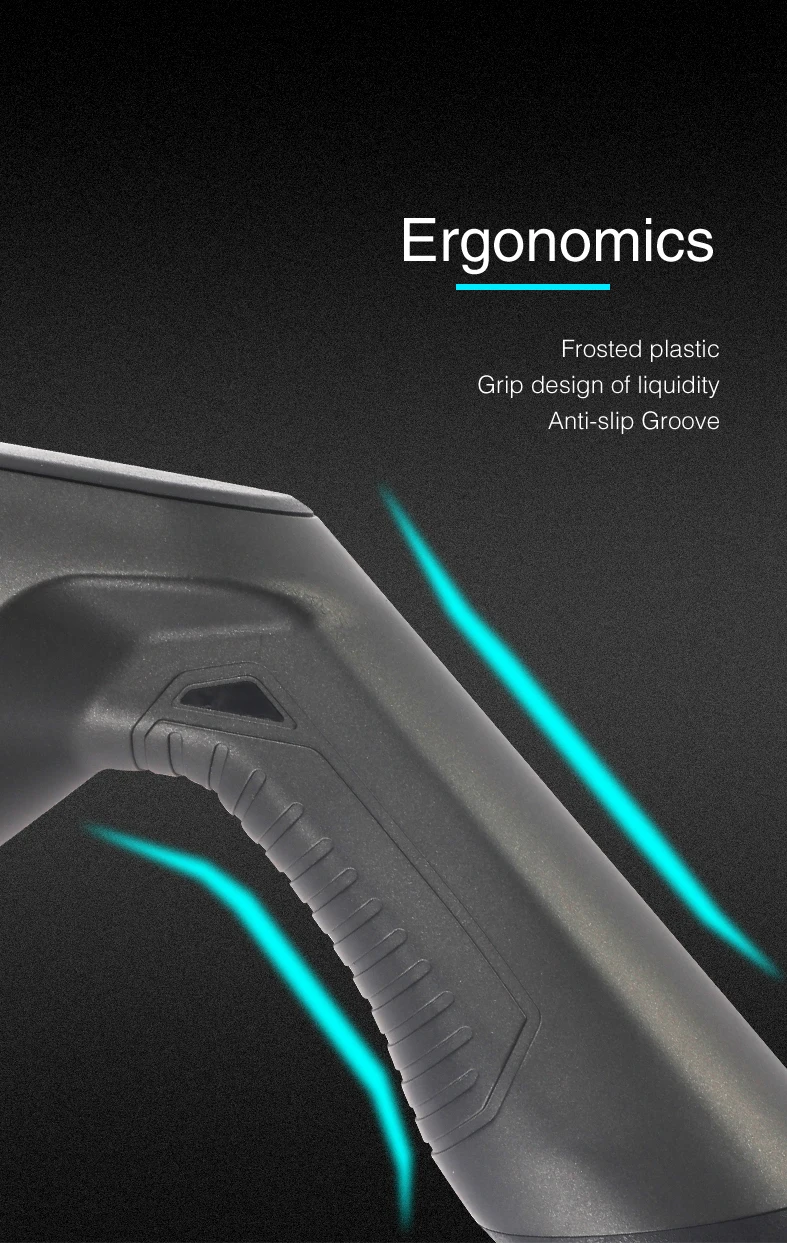

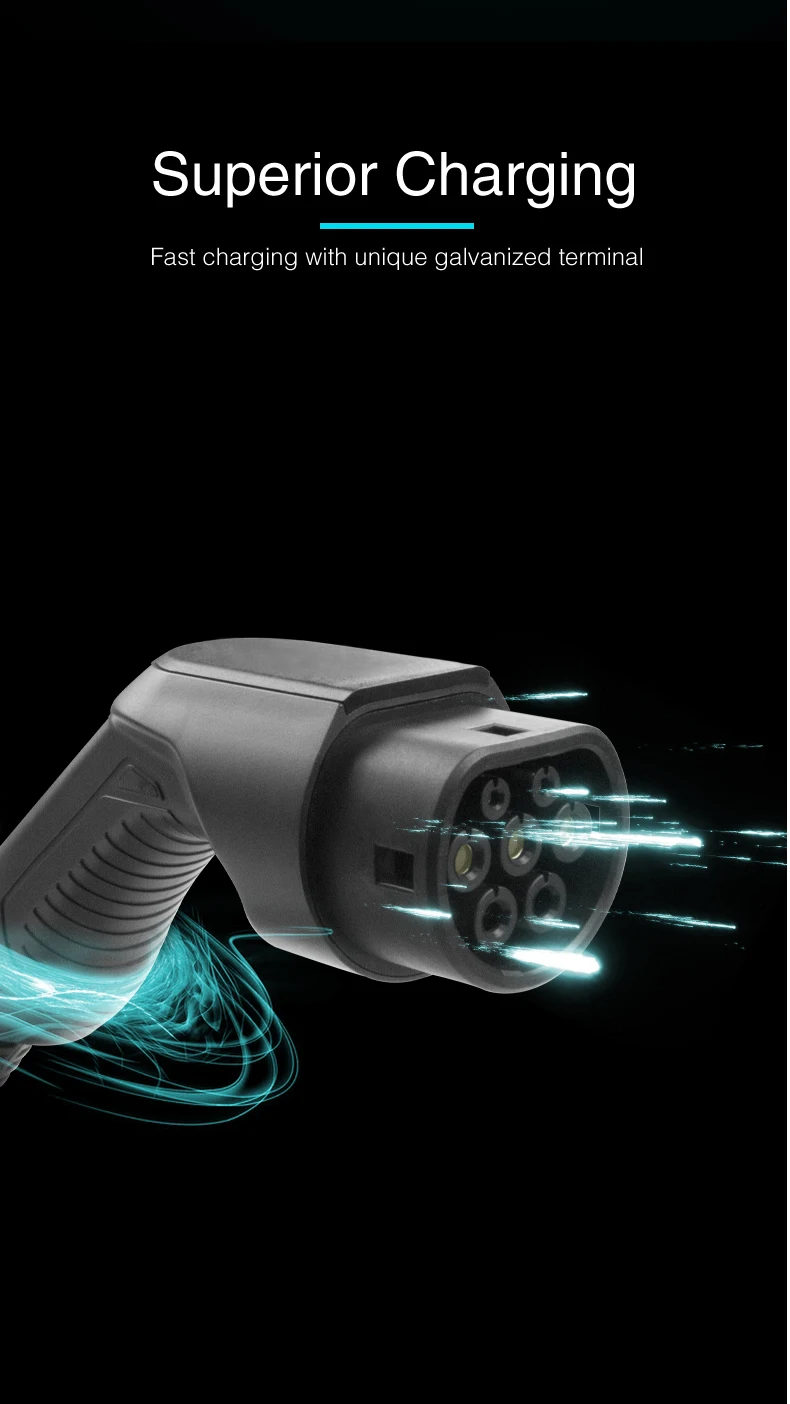

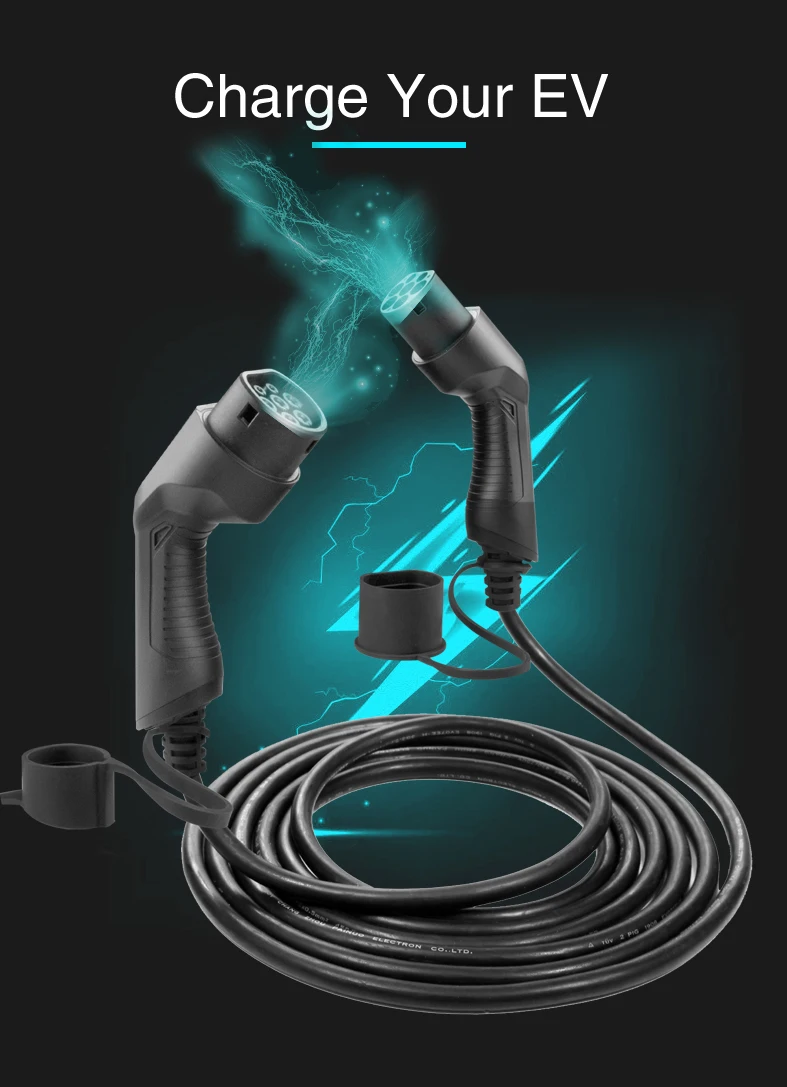

Product Pictures

We have 12-years’ experience of producing EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each customers.





Company Information

BESEN is a manufacturer specializing in EV Charging products. Additionally to the production, our

company has Design and R&D departments.Our main products are EV charging stations, EV cables

and EV connectors. Along with the regular products we also offer product customization service upon

the request in order to meet the local market preferences and needs.We strive to provide constantly

updated products, perfect project solutions and efficient after-sales service toensure our customers

rank top in the market. We are committed to become the most professional EV chargingequipment

manufacturer in China and will keep working hard for it.







FAQ

Here are some customer’s common questions about our iec62196 electric vehicle Mode 3 TYPE 2 plug :

.

1. What is your terms of payment?

We will recommend our customer to use different terms of payment based on difference in quantity of order.

Less than 1000 USD, generally choose the PayPal

More than 1000 USD, generally choose telegraphic transfer or Alibaba

If you need the detailed terms of payment, pls contact us.

.

2. What is the Alibaba Trade Assurance ? Whether we support?

This is a new service released by the Alibaba website in 2015, January. The clients confirm the order with seller and make the payment, the account of payment is guaranteed by Alibaba. Once not delivering the goods in time or other causes which will lead to unable to receive goods normally, Alibaba will make the full compensate of the payment. More information about Trade Assurance, pls look up   http://tradeassurance.alibaba.com/bao/buyer_advertise.htm?tracelog=from_home_service

We are corporative business with Alibaba, and support the service of Trade Assurance. If any questions about it, pls contact us immediately.

.

3. Do your products have quality certification? How long is the warranty time?

All of our EV charging products posses with CE, TUV certifications. Generally speaking, the warranty time is 1 year.

.

4. How do you deliver your goods to me? How long will it take?

We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3days to 10 days due to the quantity of order, the level of busyness in production line.

.

5. Can we require you to print our trademark into your products? Do the color of plug and cable can be customized made according to our requirements?

We support OEM production, but the order quantity must be more than 100pcs.

The color of plug and cable can be customized made any colors on the basis of your requirements, the order quantity must be more than 200pcs.

.

6.  We need to connect the industry plug to J1772 plug with 7m length of cable, however, we don’t find the similar products in your website.

The products displayed in our website are mainstream products, we can connect any two kinds of plug, but some of which need certain quantity to be customized connection. If more detailed requirements, pls contact us.

.

7. How is your product quality? In case of problem occurs, what should I do?

Firstly, we sell our products for 6 years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which will lead to the failure in use, we will take place the new one for free.

.

If any problems not in the above-mentioned answers, you can contact us directly, we will help you to solve the problem with carefulness and patience.
