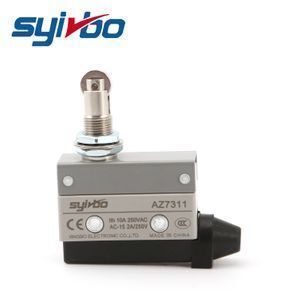

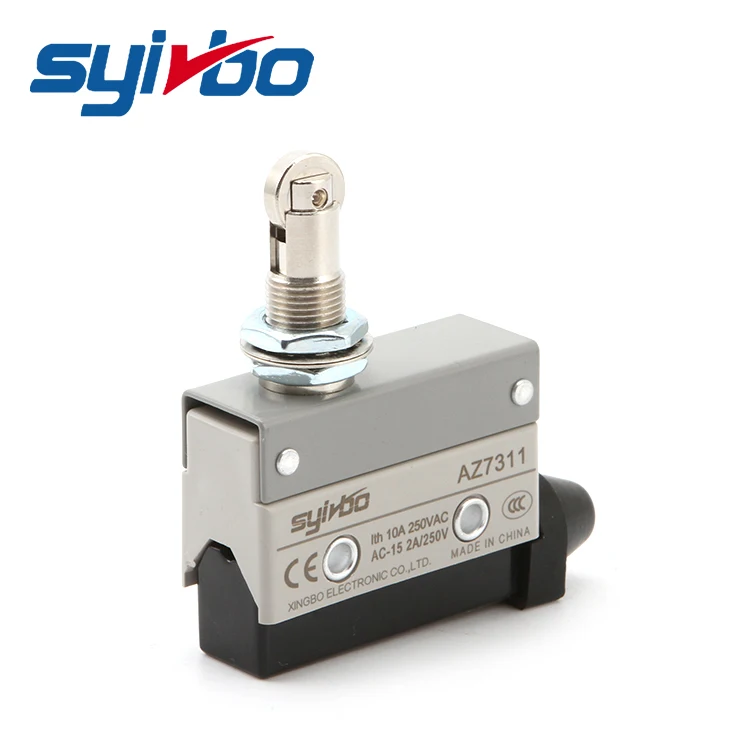

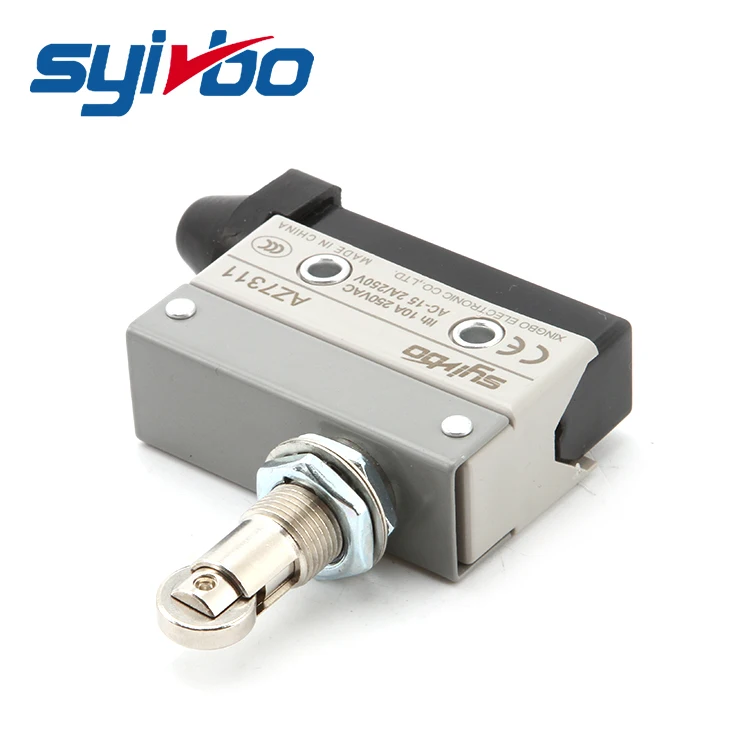

Xingbo Factory price D4MC series Switch ON and OFF panel mount stainless steel roller plunger microswitch 16a/waterproof micro

Product details
Package Type:10pcs in inner box, 200pcs in xingbo carton;Model Number:AZ-7311;
Selling Units:Single item;Operating Temperature:-5-+65;
Protection Level:IP40;Single package size:14X10X9 cm;
Single gross weight:1 KG;Brand Name:XINGBO;
Max. Current:15A;Place of Origin:china;
Max. Voltage:250V;
Product Description



Features:

Economical, high utility enclosed switch

Enclosed switches with built-in basic switches.

Various of actuators, the operation position is adjustable

Outer shell covered with intensive plastic, water-proof and oil-proof.

The mechanical strength is better than TM type of micro switch, bear shock

Ratings:

Rated voltage

Non-inductive Load (A)

Inductive Load (A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

125VAC

10

3

1.5

10

5

2.5

250VAC

10

2.5

1.25

10

3

1.5

480VAC

3

1.5

0.75

2.5

1.5

0.75

8VDC

10

3

1.5

6

6

5

14VDC

10

3

1.5

6

6

5

30VDC

8

3

1.5

6

5

2.5

125VDC

0.5

0.4

0.4

0.05

0.05

0.05

250VDC

0.25

0.2

0.2

0.03

0.03

0.03



Characteristics

+

Models

AZ-7100

AZ-7110

AZ-7310

AZ-7311

AZ-7312

AZ-7120

OF(Max.)

600g

600g

600g

600g

600g

150g

RF(Min.)

100g

100g

100g

100g

100g

40g

PT(Max.)

2.0mm

2.0mm

2.0mm

2.0mm

2.0mm

13.5mm

OT(Min.)

0.8mm

5.0mm

6.0mm

6.0mm

6.0mm

4.0mm

MD(Max.)

0.8mm

0.8mm

0.8mm

0.8mm

0.8mm

3.2mm

OP

30.5±0.8mm

44±1.2mm

21.8±1.2mm

33.3±1.2mm

33.3±1.2mm

25±1mm

FP











35mm



+

Models

AZ-7140

AZ-7121

AZ-7141

AZ-7124

AZ-7144

AZ-7166

OF(Max.)

220g

180g

240g

200g

280g

120g

RF(Min.)

60g

50g

80g

60g

100g



PT(Max.)

8.5mm

11.0mm

6.5mm

11mm

6.5mm

250mm

OT(Min.)

2.5mm

3.0mm

2.0mm

3.0mm

2.0mm

11mm

MD(Max.)

2.0mm

2.4mm

1.5mm

2.4mm

1.5mm



OP

25±1mm

40±1mm

40±1mm

50±1.2mm

50±1.2mm



FP

32mm



46mm



56mm





Operating Characteristics

+

Operation speed

0.5mm-50cm/s

Operating frequency

Mechanical: 120 operations/minute

Electrical: 30 operations/minute

Contact resistance

15MΩ Max. (initial value)

Insulation resistance

100MΩ min. (at 500VDC)





Dielectric strength

1000VAC, 50/60Hz for 1 minute between terminals of the same polarity

1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts

1500VAC, 50/60Hz for 1 minute between each terminal and ground

Vibration

10-55Hz, 1.5mm double amplitude

Shock

Mechanical durable: 1,000m/ Sec2 (about 100G’ S)

Malfunction: 300m/ Sec2 (about 30G’ S)

Ambient temperature

-10℃- 80 ℃ (with no icing)

Humidity

95% RH

Life

Mechanical: 10,000,000 operations above (under rated OT) Electrical: 500,000 operations above

Weight

About 60g

Protection

IEC specification: IP40
