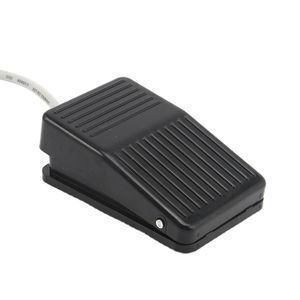

High quality power cord esu foot switch/usb foot pedal

Click here to contact

Product details

Place of Origin:	China;	Max. Current:	10A;
Max. Voltage:	250v;	Port:	NINGBO/SHANGHAI;
Brand Name:	XINGBO;	Payment Terms:	L/C,T/T,Western Union;
Model Number:	FS-01;	Supply Ability:	2000 Piece/Pieces per Day;
Packaging Detail:	Xingbo color individual box, 20pcs/ctn, 18.4kgs/ctn;

Product Description

Features:

High strength, reliable, and safe universal pedal switch

Metal series shell, such as engineering plastic, steel panel, aluminium alloy etc.

Plastic series shell,can OEM/ODM

Widely used for industrial automation equipment, transport, pressing, medical treatment, test and etc.

Product characteristics

Types	Model	Rating	Internal switch	Contact	Action force	Material
Standard type Reset type	FS-101	10A 250VAC	V type micro switch	1A1B	1.2kg	Plastic
	FS-102	15A 250VAC	TM-1704	1A1B	1.1kg	Plastic
	FS-3	15A 250VAC	V type micro switch	2A2B	1.2 kg	Aluminum cast
	FS-3S	15A 250VAC	TM1704	2A2B	1.1kg	Aluminum cast
Standard type Alternate action	FS-105	6A 250VAC	Imported alternative switch	PUSH ON PUSH OFF	2kg	Plastic
Standard type Alternate action	FS-106	6A 250VAC	Imported micro switch	PUSH 1A PUSH 1B	1.5 kg	Plastic
Small type Fixed type	FS-201	10A 250VAC	V type micro switch	1A1B	0.7 kg	Plastic
	FS-01	10A 250VAC		1A1B	0.7 kg	Plastic
	FS-1	10A 250VAC		1A1B	0.9 kg	Iron
Protective cover type	FS-302	15A 250VAC	TM1704	1A1B	3.2 kg	Aluminum cast
	FS-305	6A 250VAC	Imported alternative switch	PUSH ON PUSH OFF	3.1 kg
	FS-306	6A 250VAC	Imported micro switch	PUSH 1A PUSH 1B	3.5 kg
	FS-502	15A 250VAC	TM-1704	1A1B	3.2 kg
	FS-602	15A 250VAC	Button spring switch	2*1A1B	2.8 kg
	FS-702	15A 250VAC	TM1704	2*1A1B	3.2 kg
Large type	FS-402	15A 250VAC	TM1704	1A1B	3.2 kg
Large type	FS-802	15A 250VAC	TM1704	2*1A1B	3.2 kg
